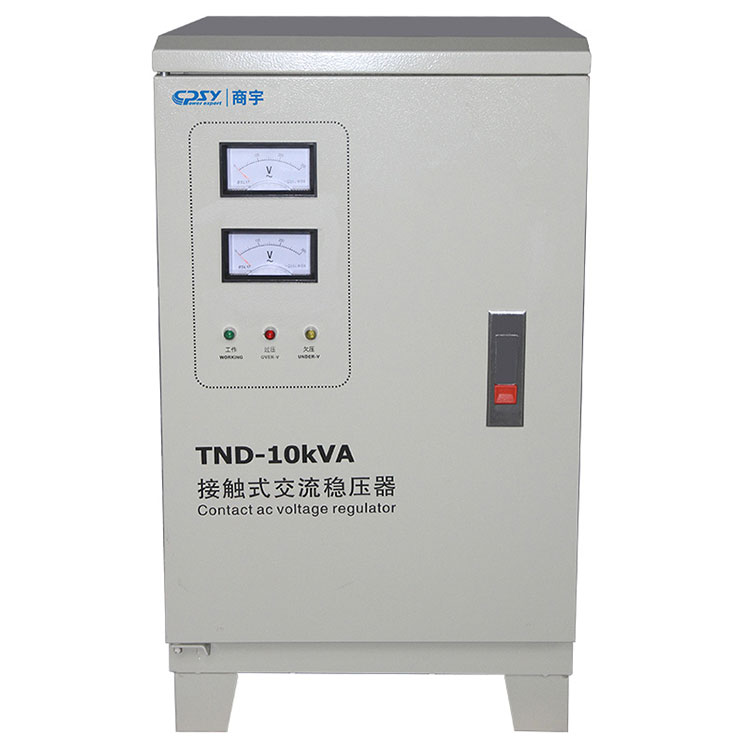

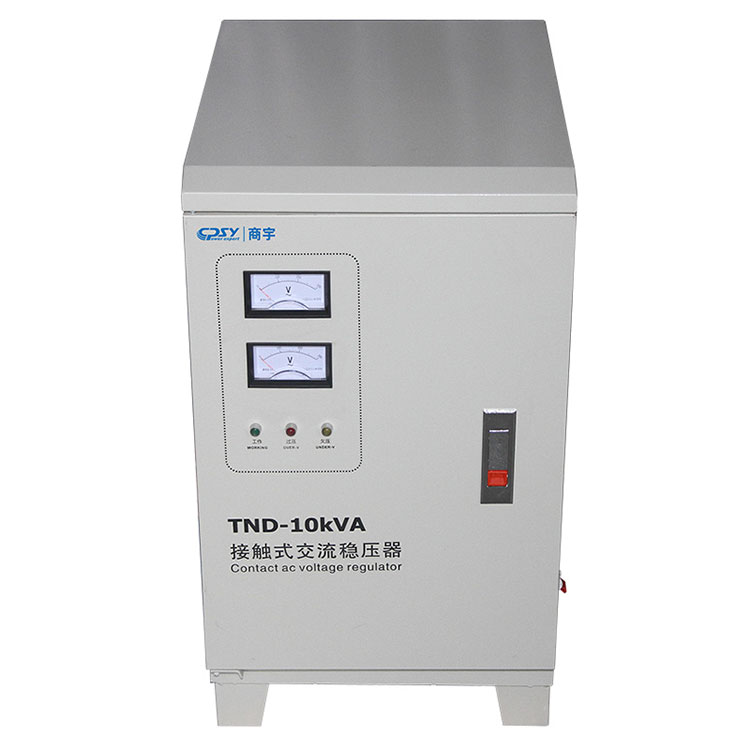

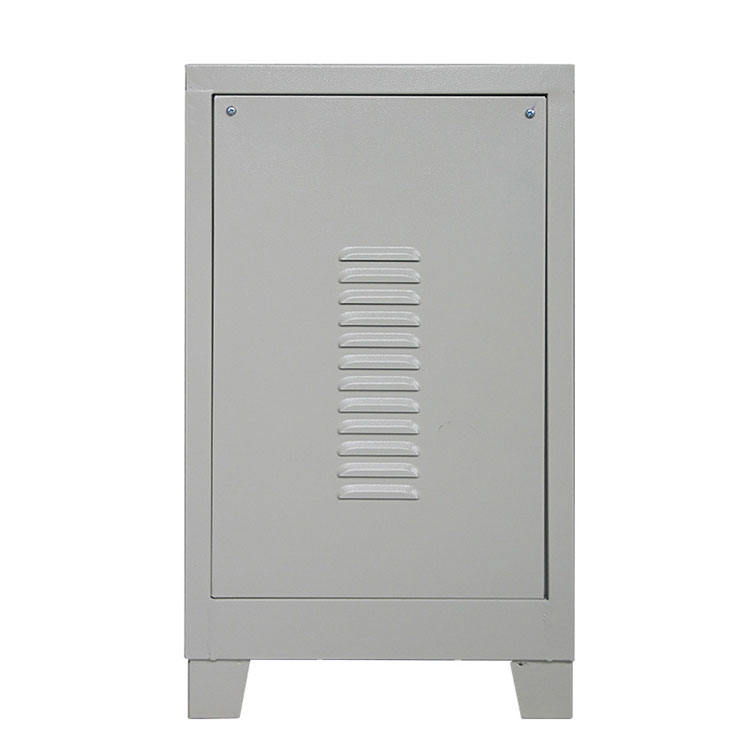

The TND series single-phase contact AC 220v voltage stabilizer is composed of a servo motor, a control circuit, and an auto-voltage regulator (or a compensation transformer). It has small size, light weight, high efficiency, wide voltage regulation range, and no waveform distortion. And other advantages. It is equipped with functions such as over-voltage (under-voltage) protection, delay (selection) protection, and fault protection. It has two-way voltage indication, complete functions, safe and reliable. It is widely used in household electricity, industrial and agricultural production, scientific research and medical and health fields.

Scope of use: suitable for computer network engineering equipment, household appliances, medical equipment, scientific research units, measurement equipment, factory calibration benches and other equipment supporting use.

220V Voltage Stabilizer Working principle:

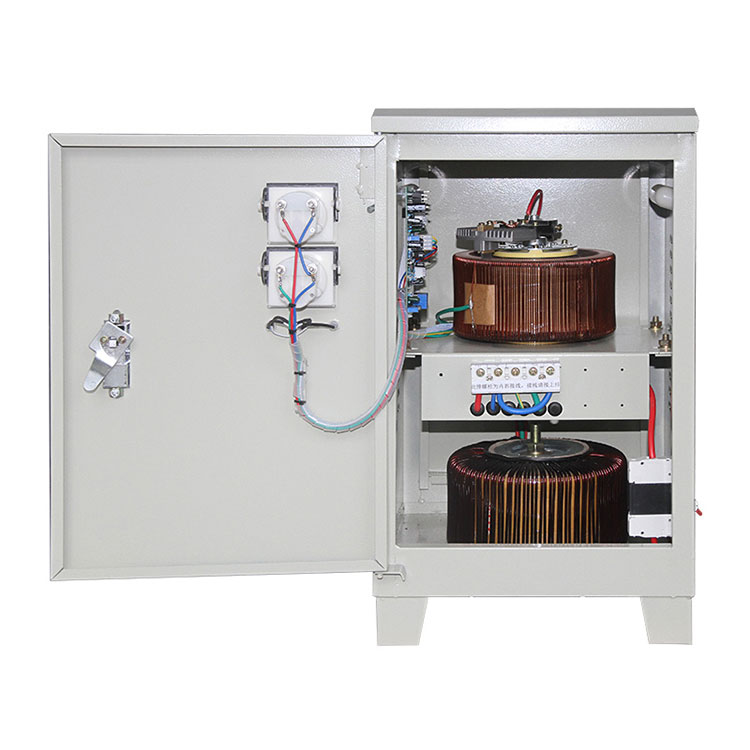

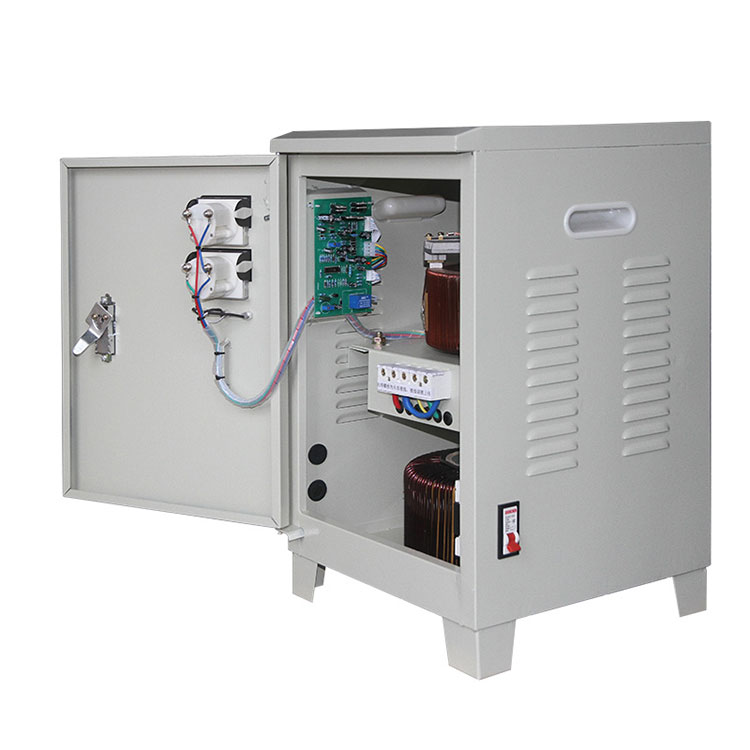

1. Structure: This product is mainly composed of a contact auto-coupling voltage regulator, a sampling comparison amplification control circuit, an output voltage protection circuit, a servo motor and a rotating arm.

2. Work: When the input voltage is unstable or the load changes, each phase sampling circuit samples separately, compares it with the set benchmark, amplifies it, and executes the required direction rotation of the motor according to the comparison result, driving the rotation of the voltage regulator. The arm adjusts the voltage so that the output of each phase remains unchanged, thereby achieving voltage stabilization. The main circuit schematic diagram is shown below:

SHANGYU POWER CHINA® 220V Voltage Stabilizer Parameter (Specification)

Single phase Tactile AC 220v voltage stabilizer

Model NO. Item

TND-3KVA

TND-5KVA

TND-10KVA

TND-15KVA

TND-20KVA

TND-30KVA

Rated Capacity

3KVA

5KVA

10KVA

15KVA

20KVA

30KVA

Input Voltage Range

160~250V

Rated Output voltage

220V±3%

Adjust time

<1s

Rated Current

12A

20A

40A

60A

80A

120A

Ambient temperature

-5℃~+40℃

Over voltage protection value

246V±4V

Packing size(mm)

540*375*335

575*375*365

370*360*630

440*340*830

450*400*910

SHANGYU POWER CHINA®220V Voltage Stabilizer Feature And Application

Features:

1. High quality output voltage

The 220v voltage regulator can work without interruption, the voltage regulation process is smooth, and there is no transient power loss. The output voltage regulation accuracy is high and is usually factory adjusted to 220V+3% for single-phase and 380V±4% for three-phase.

2. The input voltage has a wide working range and strong load characteristics.

This machine can operate normally within a wide input voltage range and has satisfactory load characteristics.

3. High safety factor

Over-voltage and short-circuit protection (protected by fuses or high-breaking small circuit breakers) can automatically cut off the output if the output voltage is too high, greatly improving the safety factor of the machine and effectively protecting terminal electrical equipment.

4.Long life

Above 2K, a high-breaking small circuit breaker is used, which has reliable protection against load and short circuit; the voltage stabilizer uses the latest successfully developed high-performance carbon brush, which greatly extends the normal service life of the voltage stabilizer.

Applications:

Voltage testing instrument

photography technology equipment

security alarm system

Air conditioners, air conditioners

lighting device

communication system

medical equipment

computer

Industrial robot

laboratory instruments

TV equipment sound system

X-ray equipment

Production line control device

CNC machine tools

SHANGYU POWER CHINA® 220V Voltage Stabilizer Details

When compare with peers, SHANGYU POWER CHINA® 220V Voltage Stabilizer advantages as below:

The TN series high-precision fully automatic AC 220V voltage stabilizer uses a large-scale linear logic integrated circuit to form a control system, controls the servo motor to drive the contact voltage regulator to automatically adjust the voltage, and sets delay, over-voltage, and over-current protection functions to ensure ensure the safe power supply of the voltage regulator. This product has the advantages of high efficiency, small waveform distortion, stable and reliable output voltage, low power consumption, continuous operation and full-function protection.

The TN series three-phase split-adjustable high-precision AC regulated power supply is designed based on the automatic voltage regulation principle commonly used internationally. It has high voltage stabilization accuracy, small output waveform distortion, small size, light weight, and low power consumption. Features, providing a stable and reliable power environment for electrical equipment that requires voltage stabilization.

Item

Single phase 220v Voltage Stabilizer

Three Phase 380v Voltage Stabilizer

Over voltage protection

426V±4V

Adjust the time

<1s(When the input voltage changes by 10%)

≤0.5s(When the input voltage changes by 10%)

Delay time

3~10s(short)

Relative humidity

<90%

waveform

Pure Sine Wave

efficiency

≧92%

Pressure resistant

Comply with ministry standards

Temperature rise

<75K(under full load conditions)

Implementation standards

DYB 001-2013

Precautions

1. The 220V voltage regulator should avoid severe vibration, harmful gas corrosion and liquid inflow.

2. For the connecting wire of the voltage regulator, please equip it with a connecting wire (copper core) with sufficient current capacity according to the rated power (≤5A/mm

3. There is a grounding device inside the voltage regulator, and the wire connected to the outside should be reliably grounded. The grounding wire must not be removed arbitrarily or left ungrounded.

4. If the output voltage deviates greatly from the rated value, please adjust the trimmer potentiometer in the control circuit board by yourself. Turning it clockwise will increase the output voltage, and vice versa will decrease the output voltage.

5. Keep the inside of the machine clean. Dust will hinder the rotation of the gears and affect normal use. It should be removed in time to keep the contact surface of the carbon brush and coil clean. Ensure that the carbon brush spring has sufficient pressure to avoid sparking at the contact surface between the carbon brush and the coil.

220V Voltage Stabilizer packing list:

Phase

Model No.

Input voltage

Output voltage

Package size(mm)

Single phase

160-250V

Three phase

TNS-9KVA

280-430V

380±4%

380*370*820

TNS-15KVA

480*420*920

TNS-20KVA

30A

TNS-30KVA

540*510*1050

TNS-40KVA

52A

710*640*1230

TNS-50KVA

65A

TNS-60KVA

TNS-90KVA

850*730*1400
