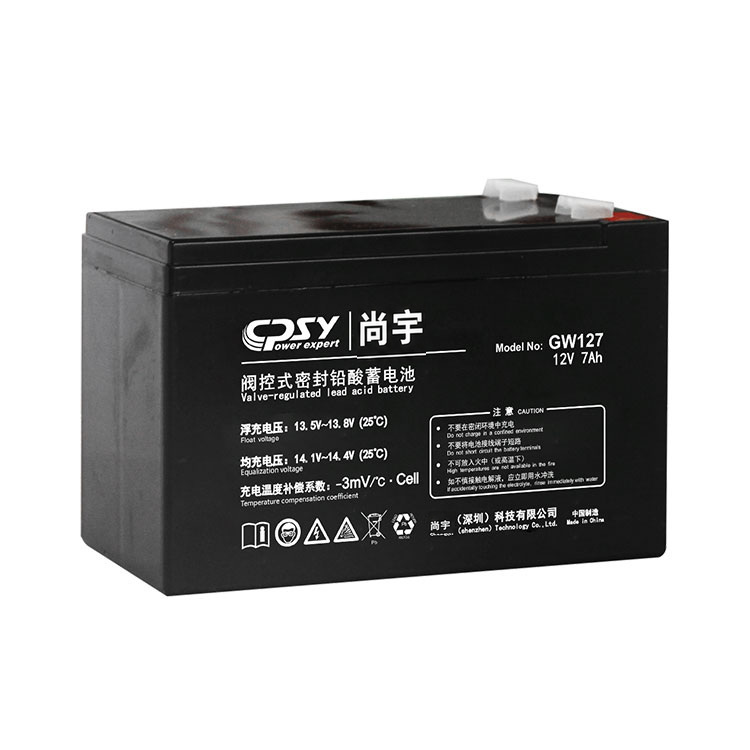

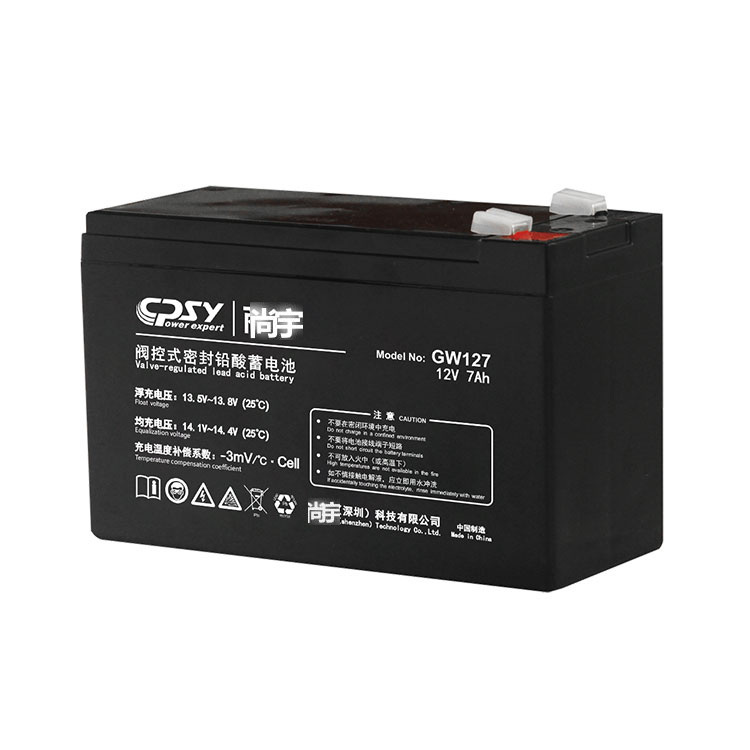

12V Storage Battery
SHANGYU POWER CHINA is one of the professional 12V Storage Battery manufacturers and suppliers in China, providing easy-maintainable and durable 12V Storage Battery worldwide. Not only do we have our own factory, but we also offer competitive prices. Our products have obtained CE certification, and we also provide customized services. You are welcome to place an order.
Send InquiryYou can rest assured to buy 12V Storage Battery from our factory. SHANGYU POWER CHINA® 12V Storage Battery Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions,with very heavy nonporous battery plates to withstand repeated major discharging and charging cycles (deep cycle). The SHANGYU POWER CHINA® deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the GW range features a 30% higher cycle life with 10 years of float life when compared to the standard Duration range.
You can rest assured to buy 12V Storage Battery from our factory. SHANGYU POWER CHINA® 12V Storage Battery VRLA AGM Deep Cycle batteries deliver deep-cycle and cyclic discharging for a general range of stationary applications such as backup power, solar, and renewable energy storage. The batteries are maintenance-free, safe, and easy to use to reduce energy costs and grid dependence.
SHANGYU POWER CHINA® 12V Storage Battery Parameter (Specification)
| MODEL NO. | Voltage | Capacity | Dimension (mm) | Weight (kg) | Bolt | |||
|---|---|---|---|---|---|---|---|---|
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) | ||
| GW64 | 6 | 4/20HR | 70 | 47 | 101 | 107 | 0.7 | F1/F2/CUT |
| GW64.5 | 6 | 4.5/20HR | 70 | 47 | 101 | 107 | 0.75 | F1/F2/CUT |
| GW65 | 6 | 5/20HR | 70 | 47 | 101 | 107 | 0.8 | F1/F2 |
| GW67 | 6 | 7.0/20HR | 151 | 34 | 95 | 101 | 1.15 | F1/F2 |
| GW610 | 6 | 10/20HR | 151 | 50 | 94 | 100 | 1.6 | F1/F2 |
| GW612 | 6 | 12/20HR | 151 | 50 | 94 | 100 | 1.75 | F1/F2 |
| GW124 | 12 | 4/20HR | 90 | 70 | 101 | 107 | 1.35 | F1/F2 |
| GW124.5 | 12 | 4.5/20HR | 90 | 70 | 101 | 107 | 1.48 | F1/F2 |
| GW125 | 12 | 5/20HR | 90 | 70 | 101 | 107 | 1.58 | F1/F2 |
| GW126.5 | 12 | 6.5/20HR | 151 | 65 | 94 | 100 | 1.9 | F1/F2 |
| GW127 | 12 | 7.0/20HR | 151 | 65 | 94 | 100 | 2.05 | F1/F2 |
| GW127.2 | 12 | 7.2/20HR | 151 | 65 | 94 | 100 | 2.15 | F1/F2 |
| GW127.5 | 12 | 7.5/20HR | 151 | 65 | 94 | 100 | 2.2 | F1/F2 |
| GW129 | 12 | 9/20HR | 151 | 65 | 94 | 100 | 2.4 | F1/F2 |
| GW1210 | 12 | 10/20HR | 152 | 99 | 96 | 102 | 3.2 | F1/F2 |
| GW1212 | 12 | 12/20HR | 152 | 99 | 96 | 102 | 3.5 | F1/F2 |
| GW6180 | 6 | 180/10HR | 260 | 180 | 247 | 251 | 27.5 | M8×16 |
| GW6180A | 6 | 180/10HR | 306 | 168 | 220 | 226 | 27 | M8×16 |
| GW6200 | 6 | 200/10HR | 260 | 180 | 247 | 251 | 29.5 | M8×16 |
| GW6200A | 6 | 200/10HR | 323 | 178 | 224 | 229 | 29.5 | M8×16 |
| GW6200D | 6 | 200/20HR | 306 | 168 | 220 | 222 | 30 | M8×16 |
| GW6210 | 6 | 210/20HR | 260 | 180 | 247 | 249 | 29.5 | M8×16 |
| GW6220 | 6 | 220/20HR | 306 | 168 | 220 | 222 | 31.5 | M8×16 |
| GW6225 | 6 | 225/20HR | 243 | 187 | 275 | 275 | 30.5 | M8×16 |
| GW6310 | 6 | 310/20HR | 295 | 178 | 346 | 366 | 46 | M8×16 |
| GW6330 | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.6 | M8×16 |
| GW6380 | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.3 | M8×16 |
| GW6420 | 6 | 420/20HR | 295 | 178 | 404 | 410 | 56.8 | M8×16 |
| GW1215 | 12 | 15/10HR | 152 | 99 | 96 | 102 | 3.8 | / |
| GW1217/18 | 12 | 17/18/10HR | 181 | 77 | 167 | 167 | 5.2 | M5×16 |
| GW1220 | 12 | 20/10HR | 181 | 77 | 167 | 167 | 6 | M5×16 |
| GW1224 | 12 | 24/10HR | 166 | 126 | 174 | 174 | 7.7 | M6×16 |
| GW1226 | 12 | 26/10HR | 166 | 175 | 126 | 126 | 8.3 | M6×16 |
| GW1233 | 12 | 33/10HR | 196 | 130 | 155 | 167 | 10 | M6×16 |
| GW1238 | 12 | 38/10HR | 198 | 166 | 172 | 172 | 12.3 | M6×16 |
| GW1245 | 12 | 45/10HR | 198 | 166 | 174 | 174 | 13 | M6×16 |
| GW1250 | 12 | 50/10HR | 229 | 138 | 208 | 212 | 15.5 | M6×16 |
| GW1255 | 12 | 55/10HR | 229 | 138 | 208 | 212 | 16.2 | M6×16 |
| GW1265 | 12 | 65/10HR | 350 | 167 | 178 | 178 | 20.5 | M6×16 |
| GW1270 | 12 | 70/10HR | 350 | 167 | 178 | 178 | 21.5 | M6×16 |
| GW1275 | 12 | 75/10HR | 260 | 169 | 211 | 215 | 22 | M6×16 |
| GW1285 | 12 | 85/10HR | 260 | 169 | 211 | 215 | 23.5 | M6×16 |
| GW1285A | 12 | 85/10HR | 331 | 174 | 214 | 219 | 25 | M6×16 |
| GW1290 | 12 | 90/10HR | 307 | 169 | 211 | 216 | 26.5 | M6×16 |
| GW12100 | 12 | 100/10HR | 331 | 174 | 214 | 219 | 28 | M8×16 |
| GW12100A | 12 | 100/10HR | 331 | 174 | 214 | 219 | 29 | M8×16 |
| GW12120 | 12 | 120/10HR | 407 | 173 | 210 | 233 | 33 | M8×16 |
| GW12120A | 12 | 120/10HR | 407 | 173 | 210 | 233 | 34 | M8×16 |
| GW12135 | 12 | 135/10HR | 341 | 173 | 283 | 288 | 41 | M8×16 |
| GW12150A | 12 | 150/10HR | 484 | 171 | 241 | 241 | 41 | M8×16 |
| GW12150 | 12 | 150/10HR | 484 | 171 | 241 | 241 | 44 | M8×16 |
| GW12160 | 12 | 160/10HR | 532 | 206 | 216 | 222 | 48.5 | M8×16 |
| GW12180 | 12 | 180/10HR | 532 | 206 | 216 | 222 | 53 | M8×16 |
| GW12200 | 12 | 200/10HR | 522 | 240 | 219 | 225 | 56 | M8×16 |
| GW12200A | 12 | 200/10HR | 522 | 240 | 219 | 225 | 58.2 | M8×16 |
| GW12230 | 12 | 230/10HR | 522 | 240 | 219 | 225 | 61 | M8×16 |
| GW12250 | 12 | 250/10HR | 520 | 269 | 203 | 209 | 70 | M8×16 |
| GW12300 | 12 | 300/10HR | 520 | 268 | 220 | 226 | 77 | M8×16 |
SHANGYU POWER CHINA® 12V Storage Battery Feature And Application
SHANGYU POWER CHINA® 12V Storage Battery Details
SHANGYU POWER CHINA® DEEP CYCLE VRLA AGM BATTERY
Voltage: 12V
Capacity: upto 12V300Ah
Designed floating service life: 8-12 years @ 25C/77F.
FEATURES AND BENEFITS
30% more cyclic life through innovation at the PAM additives
Long life expectancy of 10 years in floating condition
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -20C to 50C
3% Low self-discharge rate
Very good deep cycle performance: up to 500 cycles@80%DOD
Excellent deep discharge recovery capability
CHARGING VOLTAGE AND SETTINGS
Constant voltage charging is recommended
Recommended float charge voltage: 2.27V/cell@20~25°C
Float voltage temperature compensation:-3mV/C/celI
Float voltage range: 2.27 to 2.30 V/cell @ 20~25C
Cyclic application charge voltage : 2.40 to 2.47 V/cell @20-~25°C
Max. charge current allowable :0.25C
BMS of LiFePO4 Battery
CONSTRUCTION
Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover - Fire resistance ABS,water proof
Pillar seal- Two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
Application
Electric Powered Vehicles
Golf Cars and Buggies
Wheel Chairs
Electric Powered Toys
Medical Equipments
Solar and Wind
Power Tools
Control System
UPS systems
Emergency systems
COMPLIED STANDARDS
CE
UL
IEC 61427
IEC60896-21/22
BS6290 part 4
GB/T 22473
ISO9001/14001/18001
Eurobat guide, long life
IATA and IMDG
MSDS
The INSIDE Story
SHANGYU POWER CHINA has been manufacturing lead acid batteries since 2019's, and through years of development, advanced research, and technology transfer, today, we are proud to have a durable, long life, highly reliable, and electrical efficient VRLA battery, such as our AGM, GEL, and the Hybrid Gel that cater to our customers need, and their environment.
Valve (One way valve)
The valve is comprised of a one-way valve made of material such as neoprene. When gas is generated in the battery under extreme overcharge condition due to erroneous charging, charger malfunctions or other abnormalities, the vent valve opens to release excessive pressure in the battery and maintain the gas pressure within specific range (7.1 to 43.6 kPa.). During ordinary use of the battery, the vent valve is closed to shut out outside air and prevent oxygen in the air from reacting with active material in the negative electrodes.
Negative Plate
It is a Lead-tin-calcium alloy grid with a thickness of at least 2.3mm, and filled with spongy lead as its active materials that ensure optimum discharge performance, and long service life.
AGM Separators
Absorbent Glass Mat (AGM) separator that is used to retain the acid electrolyte or the Gel acid catalyse, and it provides longevity in the battery life through minimal ions loses.
Positive and Negative Electrodes Terminals
Positive and negative electrodes terminals may be faston tab type, bolt fastening type, threaded post type, or lead wire type, depending on the type of the battery. Sealing of the terminal is achieved by a structure which secures long adhesive-embedded paths and by the adoption of strong epoxy adhesives.
Battery Case Materials
Material of CHLORIDE Powersafe AGM Battery Series case is ABS resins. UL94 V0 frame retardant aterial case is optional.
Positive Plate
Radial design lead-tin-calcium alloy grid with a thickness of 3.2mm to 3.6mm, and it's filled with porous lead dioxide as its active materials that able to deliver the optimum discharge performance.
