High Rate Series Battery
SHANGYU POWER CHINA is one of the professional High Rate Series Battery manufacturers and suppliers in China, providing easy-maintainable and durable High Rate Series Battery worldwide. Not only do we have our own factory, but we also offer competitive prices. Our products have obtained CE certification, and we also provide customized services. You are welcome to place an order.
Send InquiryThe SHANGYU POWER CHINA® durable High Rate Series battery has a wide operating temperature ranging from -20℃ to 50℃. It has superior cycle performance, with fast charging and discharging function, and its charging efficiency is up to 100%. Besides, it has high output power and long service life.

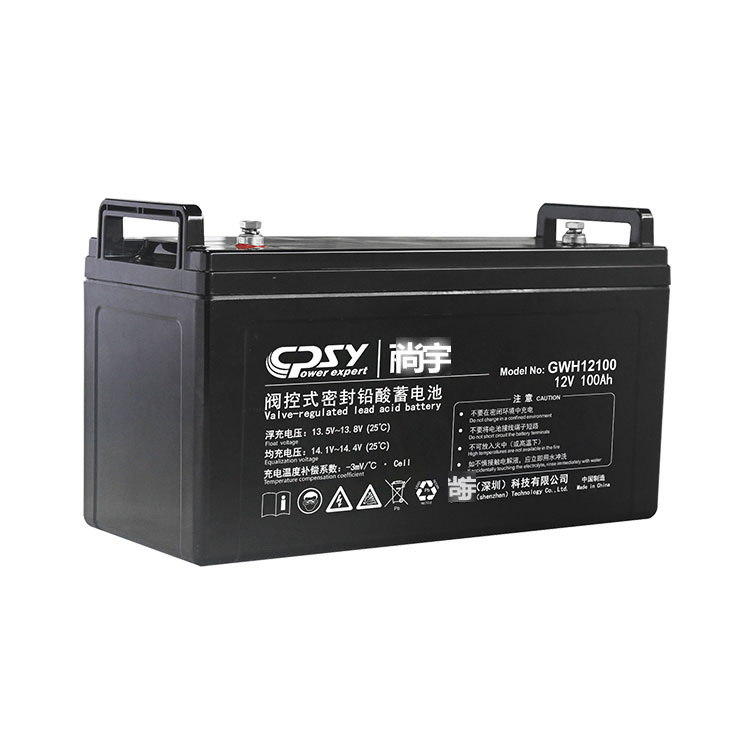

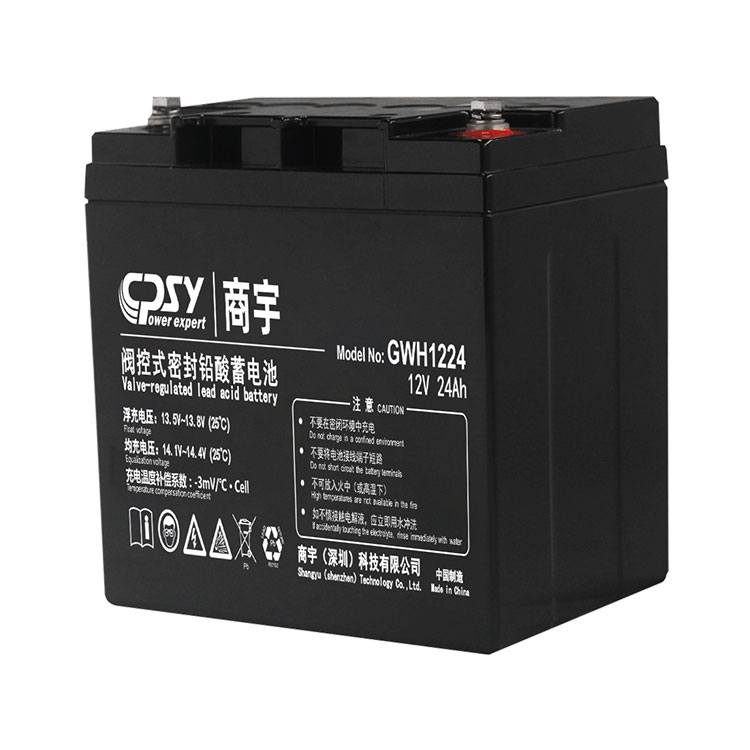

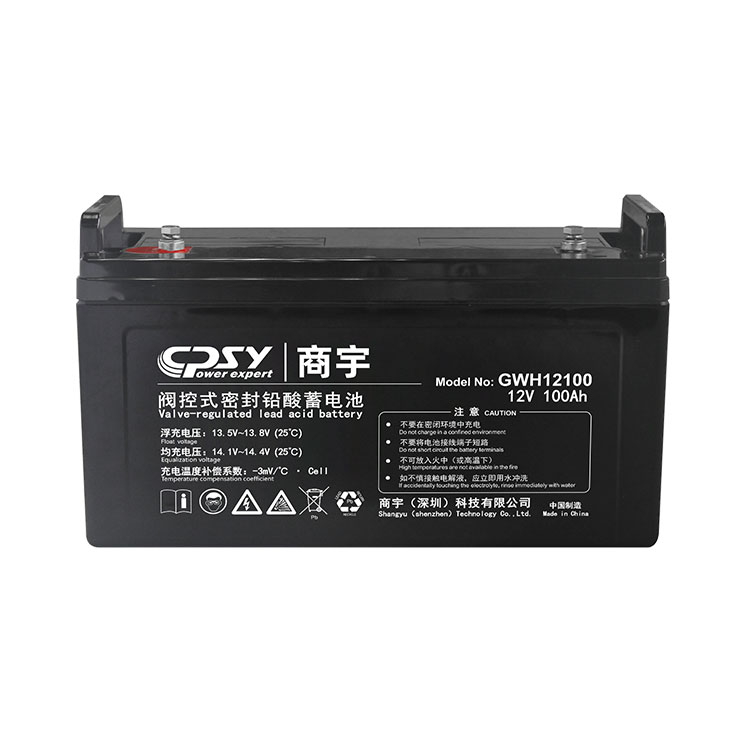

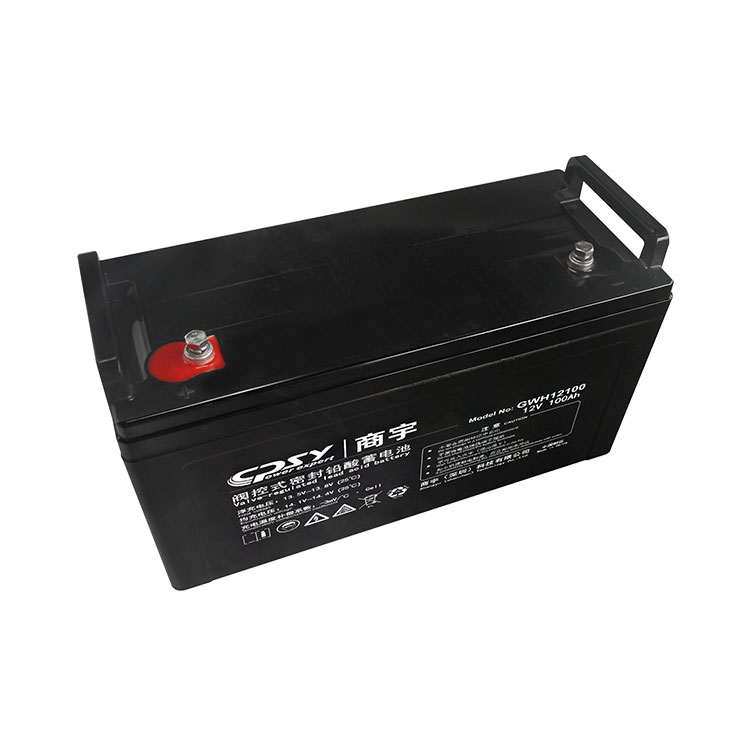

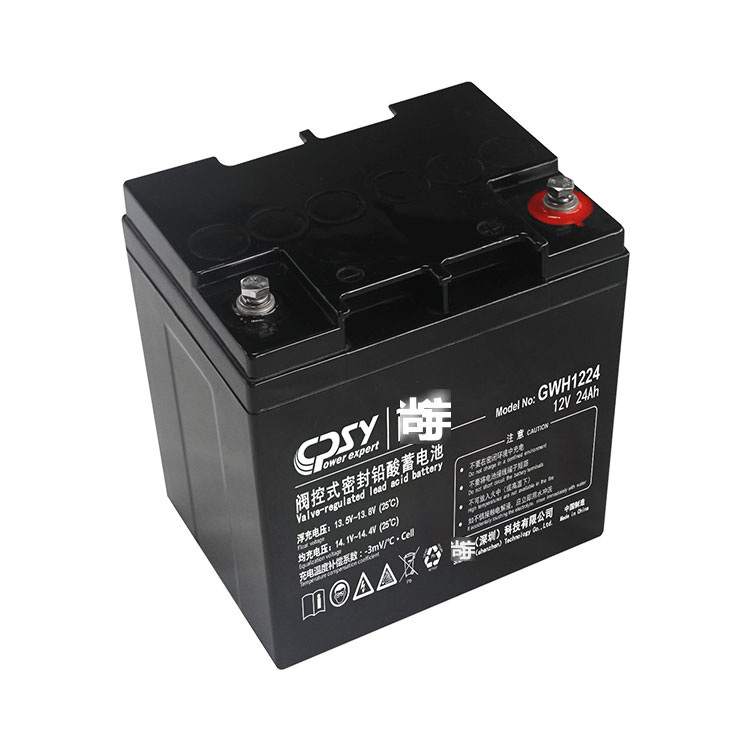

SHANGYU POWER CHINA® High Rate Series battery
SHANGYU POWER CHINA® durable High Rate Series battery is specially designed for high-rate discharge applications. By using strong grids and specially designed active material, the High Rate Series battery offers stable performance during high current discharge. It offers extremely high power output at 15 minutes of backup time with 5-12 years of design life. It is highly suited for high-rate UPS/EPS systems and power switchgear applications. SHANGYU POWER CHINA® High Rate Series battery is made of 99.994% pure lead, A grade ABS fireproof/waterproof case, Good copper terminal, Sulfuric acid electrolyte.As the innovative leader in UPS and battery manufacturing, we are keeping quality and environmental protection first and foremost,SHANGYU POWER CHINA Group has become a leader on environmental protection in China.
GWH series High Rate Series battery
Model: GWH1214-GWH12300
Battery capacity range: 14Ah-300Ah
SHANGYU POWER CHINA® High Rate Series battery Parameter (Specification)
| MODEL NO. | Voltage | Capacity | Dimension (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) | |
| GWH1214 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 |
| GWH1220 | 12 | 20 | 181 | 77 | 167 | 167 | 6.0 |
| GWH1224 | 12 | 25 | 166 | 175 | 126 | 126 | 8.3 |
| GWH1226 | 12 | 25 | 165 | 126 | 174 | 179 | 8.4 |
| GWH1235 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 |
| GWH1240 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 |
| GWH1255 | 12 | 55 | 229 | 138 | 208 | 212 | 16.0 |
| GWH1270 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 |
| GWH1275 | 12 | 75 | 260 | 169 | 208 | 227 | 25.0 |
| GWH1285 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 |
| GWH1290 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 |
| GWH12100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 |
| GWH12110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 |
| GWH12120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 |
| GWH12135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 |
| GWH12150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 |
| GWH12180 | 12 | 180 | 532 | 206 | 216 | 222 | 56.0 |
| GWH12200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 |
| GWH12230 | 12 | 230 | 522 | 240 | 219 | 225 | 65.0 |
| GWH12250 | 12 | 250 | 520 | 268 | 220 | 226 | 71.0 |
| GWH12300 | 12 | 300 | 520 | 268 | 220 | 226 | 77.0 |
| GWH6200 | 6 | 200 | 306 | 168 | 220 | 222 | 30 |
| GWH6210 | 6 | 210 | 260 | 180 | 247 | 249 | 29.5 |
| GWH6220 | 6 | 220 | 306 | 168 | 220 | 222 | 31.5 |
| GWH6225 | 6 | 225 | 243 | 187 | 275 | 275 | 30.5 |
| GWH6310 | 6 | 310 | 295 | 178 | 346 | 366 | 46 |
| GWH6330 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 |
| GWH6380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 |
| GWH6420 | 6 | 420 | 295 | 178 | 404 | 410 | 56.8 |
SHANGYU POWER CHINA® High Rate Series battery Feature And Application
The typical lead-acid battery provides 200-300 charge/discharge cycles depending on the operating temperature and DOD. High Rate Series batteries can perform up to 400 charge/discharge cycles when operating at 68-77 degrees Fahrenheit at a 50% DOD with a 5-12 year life.
SHANGYU POWER CHINA® High Rate Series battery Feature:
Specifically designed for high-rate UPS and critical power backup applications
Valve regulated, maintenance free spill proof construction
Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity
Lead-calcium alloy grids and the use of high purity lead account for superior shelf-life characteristics Patented dual-paste process for enhanced active material bonding and computer guided volumetric
electrolyte control for precision filling
Rugged impact resistant ABS case and cover flame retardant to UL94:V-0
High rate of charge and discharge
High Rate batteries vs Deep cycle batteries
SHANGYU POWER CHINA® High Rate Series battery are very similar to high cycle batteries. They are designed with valve regulated lead-acid (VRLA) AGM technology and are used specifically to deliver high power pulses for short time periods. Discharging below 50% can risk shortening the lifespan of the battery. They supply more current and recharge faster than deep cycle batteries. Deep cycle batteries use VRLA AGM technology, however, they are designed with fewer and thicker lead plates, allowing a depth of discharge to 80% without causing damage. They provide a lower, steady power over an extended length of time.
SHANGYU POWER CHINA® High Rate Series battery Is Especially Designed For High Rate Discharge Applications By Using Strong Grids And Specially Designed Active AGM Separator. HR Series Offers Stable Performance During High Current Discharge; HR Series Is Highly Suited For High Rate UPS/EPS Systems And Power Applications.
Characteristics of SHANGYU POWER CHINA® High Rate Series battery:
Valve Sealed Design, No Free Electrolyte, Maintenance Free
Designed Floating Service Life: 5~12years @ 25ºC
Excellent deep discharge recovery capability
30% increase in power output at 15 minutes backup
Wide operating temperature range from -20ºC~55ºC
Safety valve installation for explosion-proof, Sealed, and maintenance
By using strong Lead Aluminum calcium Tin alloy high energy, prevent corrosion grids, high-purity lead, and patented Gel electrolyte
Extremely Low Self-Discharge Rate, Low Internal Resistance, and Long Time Storage Time
Applications:
UPS Systems
Security Systems
Control Equipments
Medical Equipments
Power Tools
ToysAlarm System
UPS System
Data Centers
Engine Starting
Control Equipment
