The SHANGYU POWER CHINA ® 12v mini ups is your ideal choice to provide complete protection to your computers. As a High-end produce with good quality, high-end technology,SHANGYU POWER CHINA is the top 10 brand of UPS manufactures in China, which comply with EU standard and comes with a 2-year warranty on electronic parts, 1-year on batteries. The SHANGYU POWER CHINA®12v mini ups has an excellent performance at charging, 50% shorten time than other peers. It can according to your demand to do customized service or OEM / ODM service, no matter appearance, color, body shell with plastic/metal type, package design, long-run type and so on.It has boost and buck AVR for ultimate Voltage Stabilization which ensures protection against overload, discharge and overcharge, which popular for home and office use.

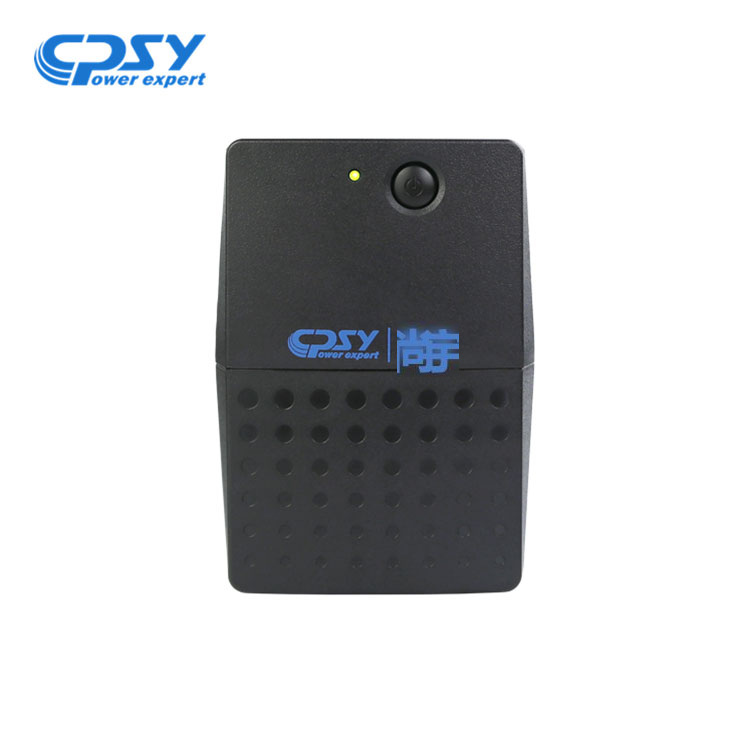

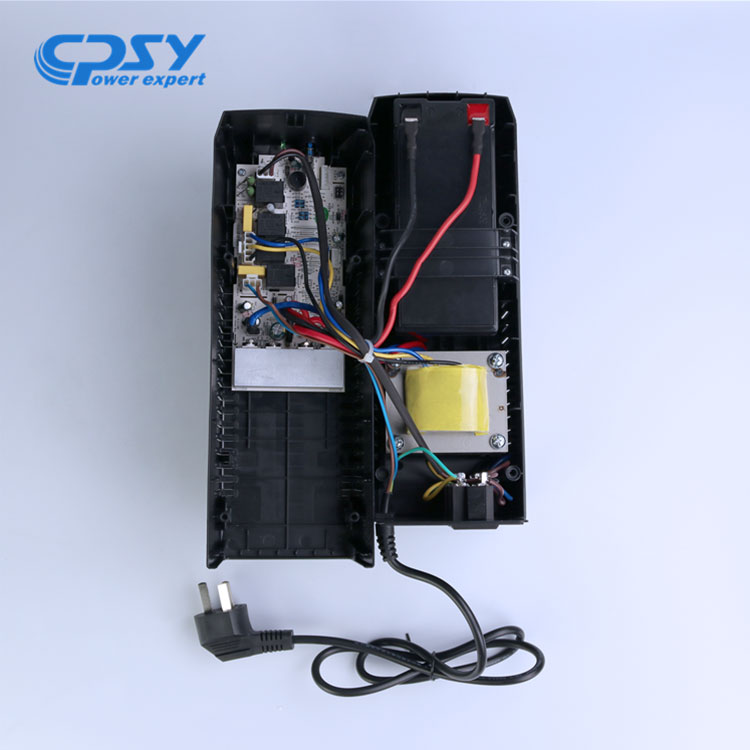

The SHANGYU POWER CHINA® 12v mini ups is made of PCBA+ VRLA Battery+Plastic case with important machines are SMT, ICT, Automatic Assembly Lines, etc., we use epoxy copper laminate, good electrical conductivity, stable quality PCB board, and dust-proof and waterproof IP21,anti-oxidation plastic body case, what's more, VRLA Battery produce with 99.994% pure lead, A grade ABS fireproof/waterproof case, Good copper terminal, Sulfuric acid electrolyte.

Some features of SHANGYU POWER CHINA® 12v mini ups

* Model No.: S500

*Capacity: 500VA / 300W

*Phase: Single phase with ground

*Power factor: 0.6

*Input voltage range: 220/230/240VAC

*Output voltage: 220VAC±10%

*Transfer Time: Typical 2-8 ms

*Indicator: LED display

* Socket : European standard socket and plug or Universal outlet(optional)

*Battery type & number : AGM battery 12V / 7Ah x 1pc

*Product size: 284 x 100 x 140mm

*N.W.: 4.5kgs/color box

*G.W.:18.0kgs/ctn(4pcs)

SHANGYU POWER CHINA® 12v mini ups Parameter (Specification)

Model

S500/S550

S600/S650

S800/S850

S1000-12V/S1050-12V

Capacity

500VA/300W

600VA/360W

800VA/480W

1000VA/500W

Input

Voltage

220/230/240VAC

Voltage Range

162-290VAC

Frequency Range

60/50Hz

Output

AC Voltage Regulation(Batt.Mode)

220AC±10%

Frequency Range(Batt.Mode)

50H or 60Hz ±1Hz

Transfer time

Typical: 2-8ms,10ms max.

Waveform (Batt.Mode)

Simulated Sine wave

Battery

Battery Type & Number

12V7Ah x 1pc

12V 9Ah x 1pc

12V9Ah x 1pc

Typical Recharge Time

4-6 hours up to 90% capacity

Protection

Full Protection

Overload,Discharge,and overcharge protection

Indicators

LCD display

AC mode,battery mode,load level,input voltage,output voltage,overload,fault,and low battery

LED display

AC Mode

Green light

Battery Mode

Alarm

Sounding every 10 seconds

Low Battery

Sounding every seconds

Overload

Sounding every 0.5 seconds

Fault

Continuously sounding

Physical

Dimensions, DxWxH(mm)

284*100*140

Net Weight(KG)

4.5

5.1

Environment

Operation Humidity

0-90%RH@0-40℃(non-condensing)

Noise Level

Less than 40dB

Management

Communication port

Optional USB,RS232 communication port and RJ-11/RJ-45 Protection

Remark: model S500/S600/S800/S1000-12V with LED display, S550/S650/S850/S1050-12Vwith LCD display

SHANGYU POWER CHINA® 12v mini ups Feature And Application

Features:

● Excellent microprocessor control optimizes reliability;

● Built super smart charger,shorten charging time;

● Boost and buck AVR for voltage stabilization;

● Simulated sine wave;

● Auto restart while AC is recovering;

● Built-in self-diagnostic function;Power-on self test;

● Off mode charging function;

● Compatible with generator set(optional);

● Optional RS232/USB communication port and RJ11/RJ45 protection.

Application:

●Internal,modems & wireless router

●Photos, music & video libraries

●Computer & peripherals

●Game consoles & TVs

●Home Office

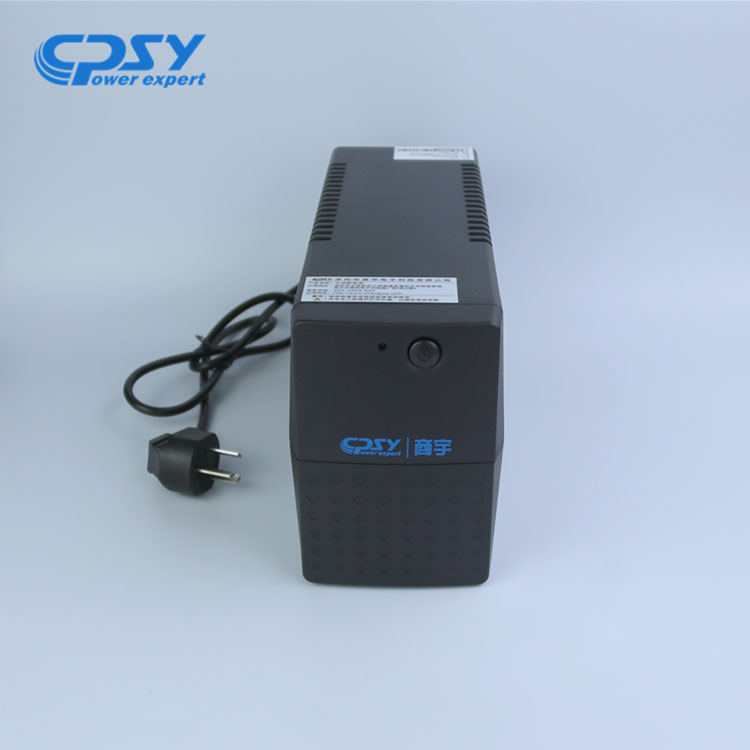

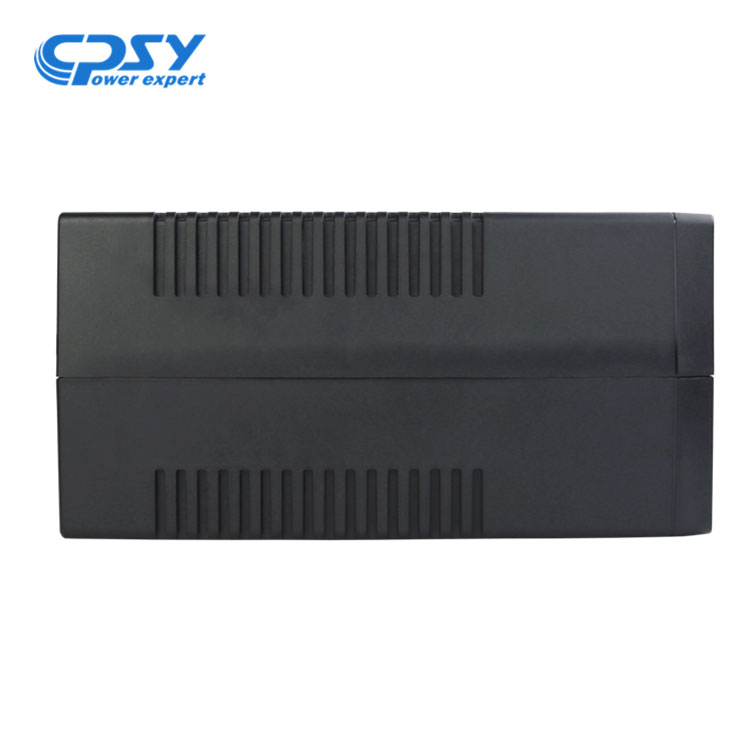

SHANGYU POWER CHINA® 12v mini ups Details

When compare with peers, 12v mini ups advantages as below:

●Automatic charging function

●Automatic self detection function when ups start

●Automatic voltage regulation function

●Auto re-starts when AC recovers

●Approve European CE and ROHS certification system

●Battery low voltage protection

●Battery auto charging function when UPS off

●customized service, accept ODM & OEM order.

●Short circuit protection

●Over current protection

●Silence function

●Overload protection, 120% load work for long time

●Optional anti-lighting function,More Safety.

●Optional Plastic trype/Metal type/long-run type/charger type 12v mini ups

●Smart charging, shorten 50% charging time when charge the battery.

Backup time

Item

Load

Backup time(mins)

S1000

S1500

S2000

All-in-one PC

40watts

70

72

75

150

180

Home office

80watts

30

32

34

36

40

Laptop & Wireless network

180watts

10

12

15

Console Game

335watts

1.5

3.5

Trouble Shooting

Use the table below to solve minor problems.

Problem

Possible Cause

Solutions

No words display on the front panel.

Charge the UPS at least 6 hours.

Battery fault

Replace the battery with the same type of battery.

The UPS is not turned on

Press the power switch again to turn on the UPS.

Alarm continuously sounds when the mains is normal.

The UPS is overload.

Remove some loads first. Before reconnecting equipment, please verify that the load matches the UPS capability specified in the specs.

When power fails,back-up time is shorten.

The UPS is overload

Remove some critical load.

Battery voltage is too low

Battery defect. It might be due to high temperature operation environment,or improper operation to battery.

The mains is normal but UPS is in battery mode.

Power cord is loose.

Reconnect the power cord properly.

Important Safety Warning for 12v mini ups (SAVE THESE INSTRUCTIONS)

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.)

CAUTION! To reduce the risk of overheating the UPS, do not cover the Ups' cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.

CAUTION! Do not attach non-computer-related items, such as medical equipment,life-support equipment, microwave ovens, or vacuum cleaners to UPS.

CAUTION! Do not plug the Ups input into its own output.

CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or near the unit.

CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.

CAUTION! Do not attach a power strip or surge suppressor to the UPS.

CAUTION! If the UPS is with metal chassis, for safety purpose, grounding is a must during UPS installation in order to reduce leakage current below 3.5mA.

Attention! hazardous through electric shock. Also with disconnection of this unit from the mains, hazardous voltage still may be accessible through supply from battery. The battery supply should be therefore disconnected in the plus and minus pole at the quick connectors of the battery when maintenance or service work inside the UPS is necessary.

CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions.Keep unauthorized personnel away from batteries.

CAUTION! When replacing the batteries, use the same number and type of batteries.

CAUTION! Internal battery voltage is 12VDC, Sealed, lead-acid, 6-cell battery.

CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.

CAUTION! Unplug the Ups prior to cleaning and do not use liquid or spray detergent.

CAUTION! A battery can present a risk of electric shock and high short circuit current. The following precaution should be observed before replacing batteries:

1) Remove watches, rings, or other metal objects.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminal.

Package detail

Model NO.

1 gift box

1 carton box

1Pallet

20GP

40GP

40HQ

Remark

S500-S800

1pcs

4pcs

160pcs

1600pcs

3360pcs

3780pcs

1%-2%spare part

S1000-S2000

105pcs

1050pcs

2205pcs

2520pcs

S3000

50pcs

500pcs

1% spare part
