As the professional manufacturer, SHANGYU POWER CHINA® S series line interactive UPS is suitable to protect your office equipment like PCs and peripherals from power outages. It is available in sizes 500VA, 600VA, 800VA, 1000VA, 1200VA, 1500VA and 2000VA. With the compact dimensions of these UPS it finds its place even in the smallest office in your company or at home. The availability of power is significantly improved and operation could not be simpler. All relevant information is displayed on an LCD display. We are proud to introduce our complete range of Low-Cost UPS, which test under EU operating conditions and have passed all quality and reliability tests. SHANGYU POWER CHINA® CPY Series Modular UPS is our economical & reliable solution, for protecting PC & Networks at home, shops and small offices against Power Interruptions. This 2000VA/1200W UPS, uses Line Interactive technology with Simulated Sine wave. It features a large Digital Display, smart design, AVR Boost and Buck, automatic battery test, USB communication interface, cold start function and easy battery replacement. This SHANGYU POWER CHINA ® has a complete range of Modular UPS from 10VA to 600KVA. Ups is a Micro Processor based that gives Optimum Reliability. It has boost and buck AVR for ultimate Voltage Stabilization which ensures protection against overload, discharge and overcharge. UPS is your ideal choice to provide complete protection to your computers. SHANGYU POWER CHINA is the top 10 brand to manufacture these in China, which comply with EU standard and comes with a 2-year warranty on electronic parts, 1-year on batteries. These Products are manufactured in State-of-the-art automatic Manufacturing Plants equipped with Hi-Tech Machines in China. Some of the important machines are SMT, ICT, Automatic Assembly Lines, etc.

As the professional manufacturer, this SHANGYU POWER CHINA® S Series Line Interactive UPS is a cost-effective line-interactive model and it is ideally suited for use on PCs, workstations, and networks.

The SHANGYU POWER CHINA®Line interactive UPS is made of Plastic+PCBA, which is a compact design to meet small spaces, and is easy to install and operate. Its Automatic Voltage Regulation (AVR) with Boost and Buck function prolongs the service life of batteries by voltage corrections without discharging the battery.Free spare parts come with the ups goods shipment saving you a lot of time and maintenance costs.

Of course, we can according to your demands do the OEM order for logo /package/appearance/color, and so on.

SHANGYU POWER CHINA® Line Interactive UPS Parameter (Specification)

Model

S500/S550

S600/S650

S800/S850

S1000

S1200

S1500

S2000

Capacity

500VA/300W

650VA/360W

800VA/480W

1000VA/600W

1200VA/720W

1500VA/900W

2000VA/1200W

INPUT

Norminal Voltage

220/230/240 VAC

Acceptable voltage range

162-290VAC

Frequency Range

50Hz/60Hz (auto sensing)

OUTPUT

AC Voltage (Batt. Mode)

±10%

Frequency(Batt. Mode)

60 Hz or 50 Hz ±1 Hz

Transfer Time

Typical 2-6 ms, 10ms max.

Waveform (Batt. Mode)

Simulated Sine Wave

BATTERY

Power factor

12 V/7 Ah x 1

12 V/9 Ah x 1

12 V/7 Ah x 2

12 V/9 Ah x 2

Typical Recharge Time

4-6 hours recover to 90% capacity

PROTECTION

Full Protection

Overload, discharge, and overcharge protectio

INDICATORS

LCD Display

AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery

AC Mode

Green lighting

The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level

Battery Mode

Green flashing

Yellow flashing

The right green LED flashing & the 2nd to 5th green gradually lighting indicating battery capacity

Fault

N/A

Red lighting

ALARM

Sounding every 10 seconds

Low Battery

Sounding every second

Overload

Sounding every 0.5 second

Battery Replacement Alarm

Sounding every 2 seconds

Contentiously Sounding

PHYSICAL

Dimension,D×W×H (mm)

284×100×140

325×146×185

Net Weight(KGS)

4.5

5.1

9.2

10.9

ENVIRONMENT

Humidity

0~90%RH @ 0~40℃(Non-Condensing)

Noise level

less than 40dB @ 1m

MAINTENANCE

Modbus RS-232/RS485

Support Windows 2000/2003/XP/Vista/2008/7/8,Linux,Unix and MAC

SHANGYU POWER CHINA® Line Interactive UPS Feature And Application

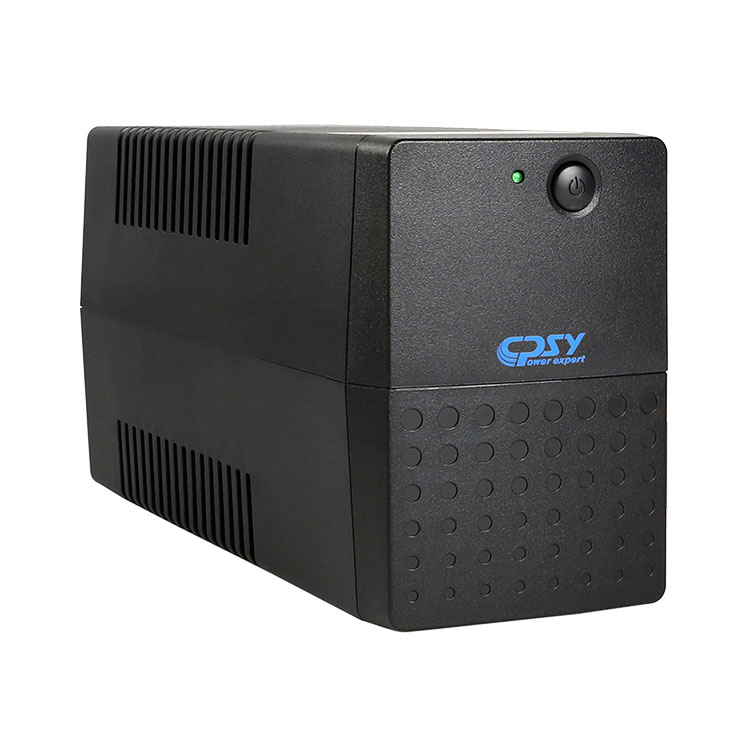

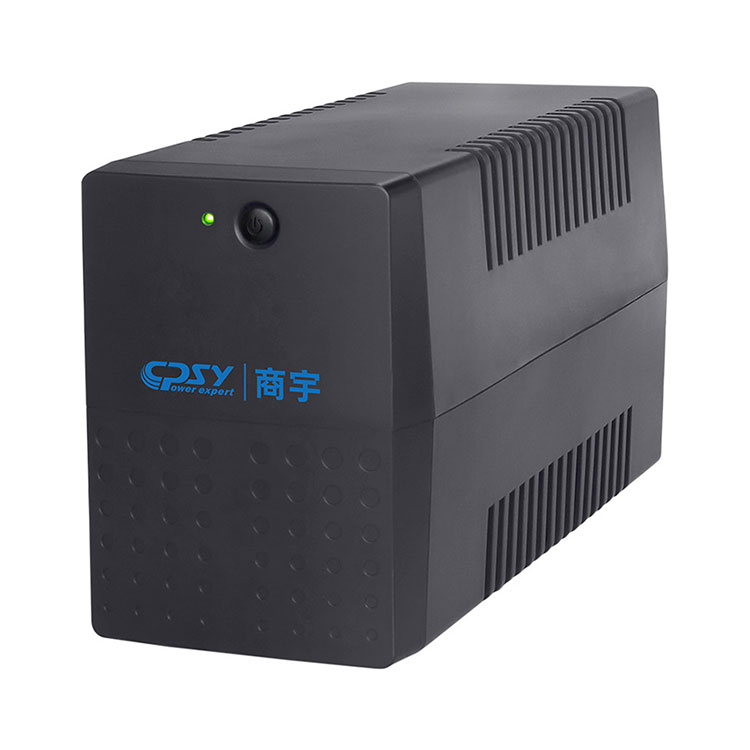

SHANGYU POWER CHINA® Line Interactive UPS

Model No.:S500/S550/S600/S650/S800/S850/S1000/S1200/S1500/S2000

UPS power range: 500VA~2000VA

Features:

● UPS in accordance with IEC 62040-1/2/3

● Line-interactive technology

● Excellent microprocessor control guarantees high reliability Automatic frequency synchronization

● Overload & short circuit protection

● Cold start function (starting in battery mode)

● USB+RJ45 interface as standard (Optionally incl. RS232)

● Boost and buck AVR for voltage stabilization

● Management software for all popular operating systems

● Output modified sine wave

● Compact design

● 14 months warranty

● Auto restart while AC is recovering

● Off-mode charging

● Microprocessor-based regulation

Application

★All-in-one PC

★Laptop & Wireless network

★Home office

★Console Game

SHANGYU POWER CHINA®Line Interactive UPS Details

S series Line interactive UPS is a compact UPS for standalone and mounting flexible. With intelligent microprocessor control design, AVR boost and buck, intelligent USB communication interface and cold start function, it guarantees high reliability which makes it an ideal solution for protecting home applications and small office systems. In addition, the S series Line interactive UPS has a built-in USB charger, which can charge your mobile phone, PAD, etc.

EVERYTHING UNDER CONTROL

This series is perfect for users who need a UPS with a control panel. The Office series is equipped with an LCD panel for current monitoring of work parameters such as input/output voltage, battery charge level / loads, current work mode and other indications.

INTELIGENT DEVICE

Application of a CPU in our UPS devices allows for complex protection by automatic voltage adjustment and stabilization within the safe range. The CPU controlling technology triggers immediate reaction by adjusting low or high voltage, voltage peaks and drops, UPS overloads as well as it protects the battery from complete discharge. The device ensures an automatic activation after the mains power supply is recovered as well as automatic charging in the Stand-By mode.

WIDE RANGE OF ACCESSORIES AND SOFTWARE

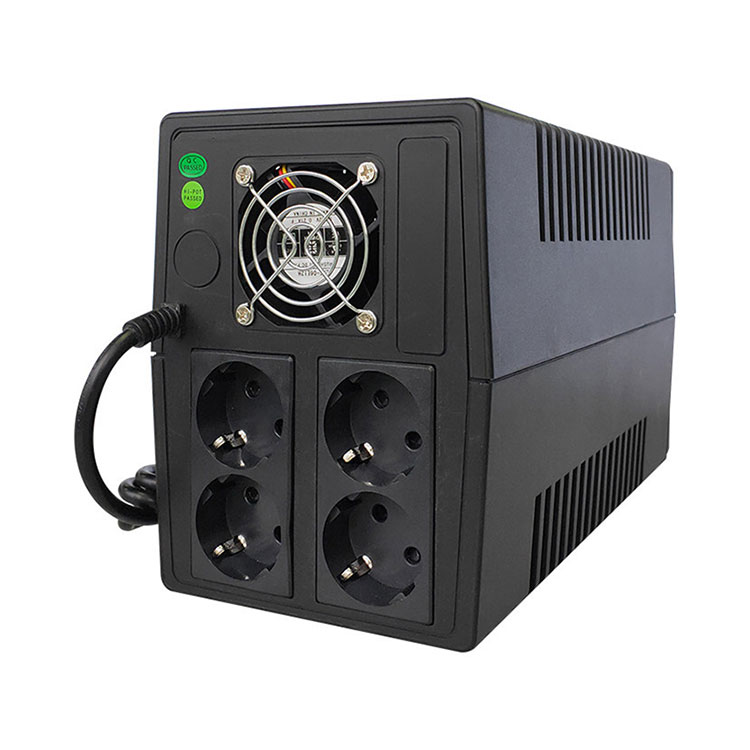

The UPS has been additionally equipped with 2 x RJ-45 ports, which work as a surge protection for telephone lines or ICT wiring. On the back of the casing there is an extra USB port to provide the user with higher control over the device and its parameterization.

DISCRETE AND PRECISE OPERATION

The function of quieter operation shall meet the expectations of the most demanding users who appreciate silent operation. Irrespective of the working mode it allows to silence all sounds which do not signal problems while the device is running on battery power. Due to the precision of the manufacturer the UPS provides clear and stable supply of power to the connected equipment which makes a reliable emergency supply system for every office.

Package detail

Model NO.

1 gift box

1 carton box

1Pallet

20GP

40GP

S500-S800

1pcs

4pcs

160pcs

1600pcs

3360pcs

S1000-S2000

105pcs

1050pcs

2205pcs

S3000

50pcs

500pcs

Backup time

Item

Load

Backup time(mins)

All-in-one PC

40watts

70

72

75

150

180

Home office

80watts

30

32

34

36

40

Laptop & Wireless network

180watts

10

12

15

Console Game

335watts

1.5

3.5

Tell us your choose

A Optional

B Optional

C Optional

D Optional

E Optional

Communication port

NO

RS232

USB+RJ45

Sockets

Schuko

IEC C13

Universal

UK

US

Display

LED/LCD

LOGO printing

Your brand

SHANGYU POWER CHINA brand

Neutral

Neutral/SHANGYU POWER CHINA/OEM

Package

Your demand

SHANGYU POWER CHINA standard

Standard

Voltage

220/230/240VAC

220V

110V

Frequency

50/60Hz

50Hz

60Hz

4 protection for

1. Battery low voltage protection

2. Overload protection

3. Short circuit protection

4.Over current protection

5.Silence function

5. Automatic charging function

6.Automatic self detection function

7.Automatic voltage regulation function

8.Auto re-starts when AC recovers

SHANGYU POWER CHINA® 600va Smart Line Interactive UPS Key components brand

Components

Brand

CPU

NXP

Transistors

ON Semi

Voltage ragulator

OLY

Amplifier

TI

IC 3843/3845

Piode

Panjit

Mosfet

IR/Fairchild/Huangjing

IGBT

Fairchildsemi/Infineon

Fan

SANYO

Key specs:

Run time with a 20 W (modem and router) load: 75mins

Run time with a 300 W (modem, router, PC, and hard drive) load: 3.5 minutes

Peak power output: 360 watts

Number of UPS outlets: 2 outlets

Warranty: one years

SHANGYU POWER CHINA® 600va Smart Line Interactive UPS backup time on different load as below:

8/16/2019 SHANGYU POWER CHINA OFFLINE UPS

600va

800va

1000va(12V)

1000va(24V)

1500va

2000va

50W

45mins

49mins

50mins

120mins

125mins

145mins

130w

11mins

11.9mins

12mins

35mins

38mins

60mins

180w

6.5mins

7mins

8mins

22mins

25mins

40mins

300w

2-3mins

5mins

5.5mins

24.5mins

335w

0.5min

1.5min

2mins

7.5mins

9mins

16-17mins

360w

6mins

14.5mins

480w

0.3min

0.35min

3mins

10.4mins

600w

4.5mins

900w

2.5mins

1200w

Data from volten laboratory

Packing details

* 1pc UPS+ a pair of foams+ 1*poly bag+User manual *1+ warranty card*1 in a carton box , then in wooden pallet.

UNITS/Colorbox

UNITS/CTN

CTN/Pallet

20’GP

40’GP

S600

S650

S800

S850

Noted:wooden pallet size:1.2*1.0M
