Online UPS with IGBT Rectifier
SHANGYU POWER CHINA is one of the professional Online UPS with IGBT Rectifier manufacturers and suppliers in China, providing easy-maintainable and durable Online UPS with IGBT Rectifier worldwide. Not only do we have our own factory, but we also offer competitive prices. Our products have obtained CE certification, and we also provide customized services. You are welcome to place an order.
Send InquirySHANGYU POWER CHINA® is a professional manufacturer of uninterruptible power supplies. SHANGYU POWER CHINA® HP33 Series 10-200KVA 3/3 Phase Online ups with IGBT rectifier is a true full-digitized IGBT rectifier double conversion online UPS. It has parallel redundant features. With THDI≤3%, output power factor of 0.9, and overall efficiency AC~AC up to 94%, SHANGYU POWER CHINA® HP33 Series Online ups with IGBT rectifier can be defined as a high reliability and efficient green power. It also integrates a friendly user communication interface and remote-control system, which is ideal for medium to large data centers, precision equipment, and the Telecomm industry. IGBT rectifier is also used in high frequency online UPS as the power device of the invertor part. Another major advantage of IGBT rectifier UPS system is that IGBT device has a high voltage capability.

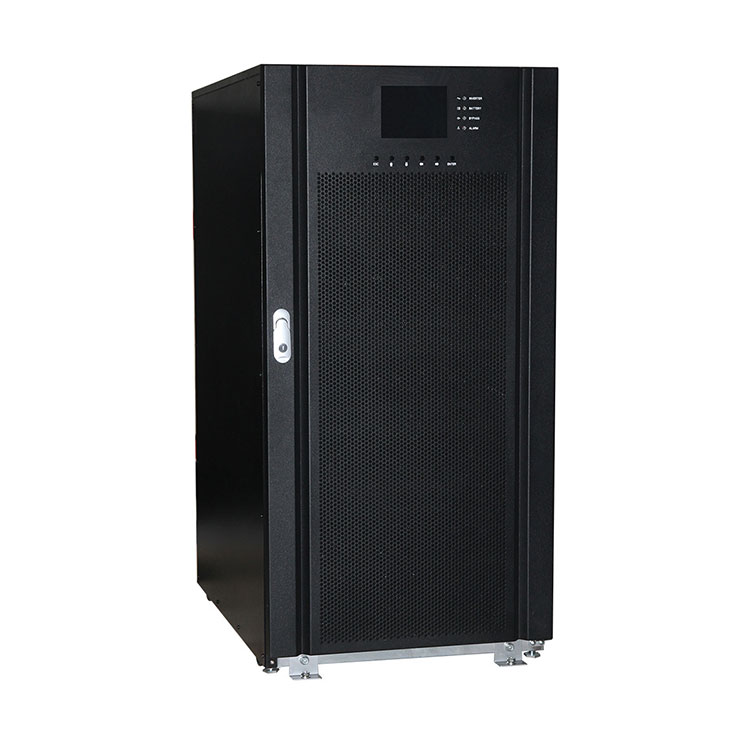

SHANGYU POWER CHINA® Online ups with IGBT rectifier
SHANGYU POWER CHINA® is a professional manufacturer of uninterruptible power supplies. We are located in Shenzhen and have a registered capital of $2.3 million and a production area of 25,000 square meters. We have our own R&D team with more than 30 R&D engineers with more than 20 patents, and put 15% sales revenue each year to R&D research.With strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates.Our aim is continuously to offer our customer stable and reliable, clean and high-efficiency power.welcome to inquiry.
This SHANGYU POWER CHINA® 20KVA LCD Three Phase Online ups with IGBT rectifier is the latest invention of high-quality ups products, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty. The SHANGYU POWER CHINA® 20KVA LCD Three Phase Online ups with IGBT rectifier is made of metal+ PCBA, which has been designed to meet most demanding power requirements, being easy to install and maintain. It combines latest high energy efficiency technology and high power density technology，achieving small size, stable performance and price competitive for UPS products.
SHANGYU POWER CHINA® HP33 series 10-200KVA Three Phase Online ups with IGBT rectifier Parameter (Specification)
| Model | HP3310H | HP3315H | HP3320H | HP3330H | HP3340H | HP3360H | HP3380H | HP33100H | HP33120H | HP33160H | HP33200H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW | 30KVA/27KW | 40KVA/36KW | 60KVA/54KW | 80KVA/72KW | 100KVA/90KW | 120KVA/108KW | 160KVA/144KW | 200KVA/180KW |
| I/O mode | 3/3 phase | ||||||||||
| Work mode | True double conversion online ups | ||||||||||
| Installation type | Tower | ||||||||||
| INPUT | — | ||||||||||
| Voltage | 380/400/415VAC | ||||||||||
| Voltage Range | Full load: phase voltage 190-276v line voltage 330-478v (-15%, +20%), half load: phase voltage 116-276/line voltage 201-478 (-50%, +20%) | Full load: phase voltage 190-330 line voltage 276-478V (-15%, +20%), 116/201-276/478V (-50%, +20%) at 50% load | |||||||||
| Frequency Range | 40~72Hz | ||||||||||
| Power Factor | ≥0.99 | ||||||||||
| Breaker | Standard (in-built) | Optional （external distribution cabinet（Input, output, maintenance bypass in one）） | |||||||||
| Breaker Capacity | 40A/3P | 40A/3P | 40A/3P | 63A/3P | 100A/3P | 125A/3P | 150A/3P | 250A/3P | 250A/3P | 400A/3P | 400A/3P |
| OUTPUT | — | ||||||||||
| Voltage | 380/400/415VAC：≤±1% | ||||||||||
| Frequency Range | 50/60Hz±1% | ||||||||||
| Power Factor | 0.9 | ||||||||||
| Transfer Time | 0ms | ||||||||||
| Overload | 100%≤load<110, 60mins, 110%≤load≤125%,10mins, 125%load≤150%, 1mins, load≥150%, transfer to bypass immediately after 500 ms | 100%≤load≤105%, long-term , 106%≤load≤125%, 10mins, 125%load≤150%, 1min, load≥150%, transfer to bypass immediately after 150ms | |||||||||
| Breaker | Standard (in-built) | Optional （external distribution cabinet（Input, output, maintenance bypass in one）） | |||||||||
| Breaker capacity | 40A/3P | 40A/3P | 40A/3P | 63A/3P | 100A/3P | 125A/3P | 160A/3P | 250A/3P | 250A/3P | 400A/3P | 400A/3P |
| BATTERY | — | ||||||||||
| Battery Type | VALR battery | ||||||||||
| Battery Voltage | 384VDC（384V~480V adjustable），Standard 32pcs（32/34/36/38/40pcs adjustable） | Standard 480V（432V/456V/480 adjustable），40pcs（36/38/40/pcs adjustable） | |||||||||
| Charging Current | 3.5（5.3AMAX） | 4A（8AMAX） | 5A(10.6AMAX) | 6A(16AMAX) | 8A(24AMAX) | 10A （40AMAX） | 20A（80AMAX） | ||||
| Charging Current adjustable | Support | ||||||||||
| Breaker capacity | No | ||||||||||
| Cold Start | No support | ||||||||||
| No battery power-on function | Support | ||||||||||
| STANDARDS | — | ||||||||||
| Efficiency | 95% | ||||||||||
| ECO mode | 98% | ||||||||||
| Safety | EN 62040-1 | ||||||||||
| EMC | EN 62040-2 | ||||||||||
| Certificate | TLC/CECP/CE/RoHS | ||||||||||
| IP | IP20 | ||||||||||
| Function | — | ||||||||||
| EPO | Support | ||||||||||
| ECO | Support | ||||||||||
| Cold Start | Support | ||||||||||
| Bypass | Standard (in-built) | Optional （external distribution cabinet（Input, output, maintenance bypass in one）） | |||||||||
| Bypass breaker | 3P/40A | 3P/40A | 3P/40A | 3P/63A | 100A/3P | 3P/125A | 3P/160A | 250A/3P | 250A/3P | 400A/3P | 400A/3P |
| Parallel NO. | 4pcs | 4pcs | |||||||||
| Parallel shared battery pack | No support | No support | |||||||||
| Communication | — | ||||||||||
| Control Panel | LCD+LED display | ||||||||||
| Communication port | Standard RS232, optional SNMP card, AS400 relay card | ||||||||||
| SNMP Serial NO. | SMP-00204-00 | ||||||||||
| PHYSICAL | — | ||||||||||
| W*D*H | 500*700*1020(mm) | 600*800*1875(mm) | 600*800*1875(mm) | 600*830*1875 | |||||||
| Net Weight（KG） | 75 | 88 | 96 | 202 | 245 | 311 | 457 | ||||
| Noise Level(less1m) | ＜55dB | ＜62dB | ＜65dB | ＜65dB | ＜70dB | ||||||
| ENVIRONMENT | — | ||||||||||
| Operation temperature | Recommended temperature UPS：0-40℃；Battery：20-25℃ | ||||||||||
| Operation Humidity | 5%-95%，No condensation | ||||||||||
| Storage temperature | -15-55℃ | ||||||||||
| Storage relative humidity | 5%-95%，No condensation | ||||||||||
| Altitude | <1000m | ||||||||||
SHANGYU POWER CHINA® HP33 Series 10-200KVA Three Phase Online ups with IGBT rectifier Feature And Application
SHANGYU POWER CHINA® HP33 Series 10-200KVA 3/3 Phase Online ups with IGBT rectifier
Features:
Transformerless UPS topology
The low input current total harmonic distortion (THD)
Static and maintenance by-pass switch
Output short circuit and overload protection
Automatic battery test, remaining battery time indicator
Selectable input/ output voltage/ frequency/range
2 RS232 serial ports and 12 dry contact outputs
512 events memories (512 events 6000 alarms)
3 DSP-controlled modular structure
External REPO switch input
Clock and calendar (battery supported)
Optional SNMP and MODBUS adaptors
Optional graphical panel
Optional USB flash memory
High efficiency up to 94%
High input power factor 0.9
Cold start function
Full digital structure
Small footprint
Application:
Servers.
Educational Institutes.
BFS
Healthcare Systems.
Telecommunication Equipments.
Small & Medium Data Centers.
CNC Machines.
Pharmaceutical Appliances.
X-ray Machines.
Industrial Facilities.
Industrial environments
medical facilities
laboratory equipment
SHANGYU POWER CHINA® HP33 Series 10-200KVA 3/3 Phase Online ups with IGBT rectifier Details
When compare with peers, SHANGYU POWER CHINA® HP33 Series 10-200KVA 3/3 Phase Online ups with IGBT rectifier advantages as below:
◆ Advanced IGBT Rectifier and HF PFC Technology. Input THDI≤3%, Input Power Factor≥0.99 to save more energy.
◆ DT Series adapts the 5th generation IGBT Inverter control technology to enhance the output voltage/current performance. Online 3 Phase input and 3 Phase output double conversion structure to adapt 380/400/415V, 50/60Hz Mains Grid Supply Systems.
◆ Output Power Factor 0.9 to carry 12.5% load capacities than traditional UPS.
◆ Wide Input Voltage Range 380V (-45% to +25%) or 210-475 Vac with 50/60Hz ±5% Frequency Range.High adaptive capacity and Generator Capability.
◆ Overall Efficiency up to 96%. Can reach to 98% on ECO Mode.
◆ Powerful overload ability with output short circuit protection technology: 110%-120% overloads for 10 minutes.125%-150% for 1 minute.
◆ Full-Digitized Non-master slave equalized current control parallel redundancy technology. Parallel upto 8 Units
◆ Shared Common Battery Banks under parallel operational Mode to save user investments.
◆ Intelligent battery management to extend battery life.
◆ Dual DSP control to correct charging parameters, which provides optimized charging solutions based on operational mode, such as float charge or equalized charge. This extend battery lifetime.
◆ Flexible Battery Configuration. It can be set on the front panel with 28/30/32 Units of Batteries.
◆ Self-Evaluation and auto periodical discharge settings to activate non-use batteries.
◆ Intuitive and user friendly 7 inch LCD color touch screen to simplified user operations
◆ Powerful Communication Ports: SNMP adapter, RS232/485, Battery Data Port, EPO, Parallel Port.
◆ Intelligent Cooling system and multi-level protection design to ensure UPS operation under all circumstances.
