SHANGYU POWER CHINA® is a professional manufacturer of Online UPS with Isolation Transformer supplies. We are located in Shenzhen and have a registered capital of $2.3 million and a production area of 25,000 square meters. We have our own R&D team with more than 30 R&D engineers with more than 20 patents, and put 15% sales revenue each year to R&D research.With strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates.Our aim is continuously to offer our customer stable and reliable, clean and high-efficiency power.welcome to inquiry.

SHANGYU POWER CHINA® Online ups with Isolation Transformer

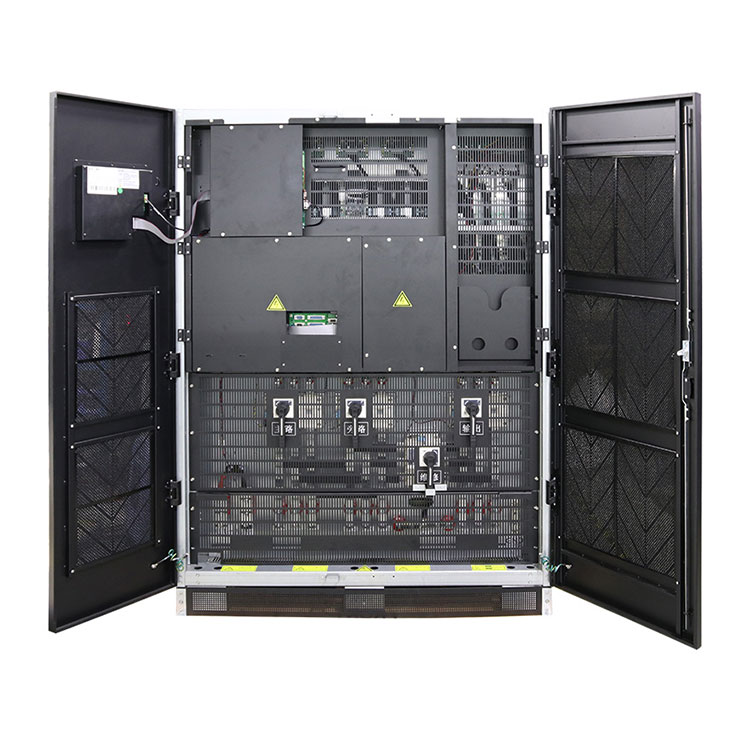

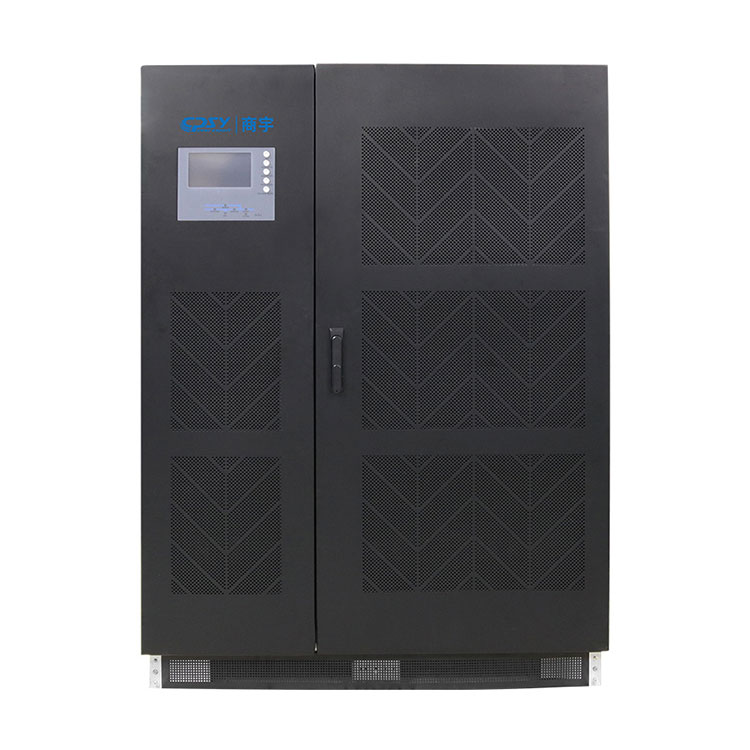

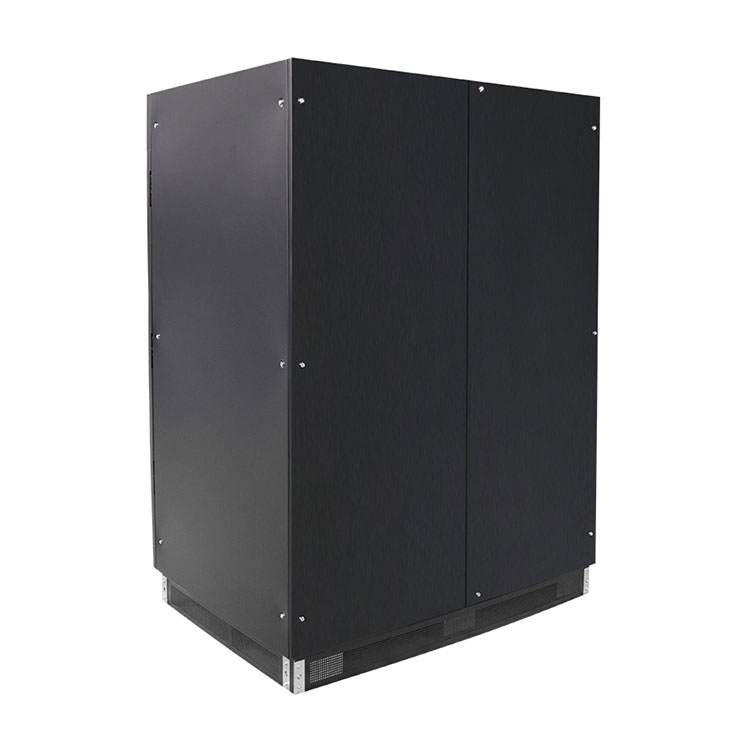

This SHANGYU POWER CHINA® 120KVA LCD Online ups with Isolation Transformer is the latest invention of high-quality ups products, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty. The SHANGYU POWER CHINA® 120KVA LCD Online ups with Isolation Transformer is made of metal+ PCBA, which has been designed to meet most demanding power requirements, being easy to install and maintain. It combines latest high energy efficiency technology and high power density technology，achieving small size, stable performance and price competitive for UPS products.

SHANGYU POWER CHINA® GP33 series Online ups with Isolation Transformer Parameter (Specification)

Model

GP3310K

GP3315K

GP3320K

GP3330K

GP3340K

GP3360K

GP3380K

GP33100K

GP33120K

GP33160K

GP33200K

GP33250K

GP33300K

GP33400K

GP33500K

GP33600K

Capacity

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

100KVA

120KVA

160KVA

200KVA

250KVA

300KVA

400KVA

500KVA

600KVA

I/O mode

3/3 phase

Work mode

True double conversion online ups

Installation type

Tower

INPUT

Voltage

380V/400V/415VAC

Voltage Range

285V~475VAC

Frequency Range

50/60Hz±10%

Power Factor

≥0.91（6hp）

Breaker mode

Standard (In-built)

Breaker capacity

40A/3P

63A/3P

80A/3P

100A/3P

125A/3P

250A/3P

320A/3P

400A/3P

630A/3P

800A/3P

1250A/3P

OUTPUT

380V/400V/415VAC：≤±1%，

50/60Hz：≤±0.5%

0.9

0.8

Transfer Time

0ms

Overload

125% load，0.5min

125% load，10min；150% load，1min；≥160%，200ms

BATTERY

Battery Type

VALR battery

Battery Voltage

Standard 384VDC（360V/372V/384V/396V/408VDC adjustable）；Standard 32pcs（30/31/33/34 adjustable）

Standard 480VDC（456V/480/504VDC adjustable）；Standard 40pcs（38/40/42 adjustable）

Charging Current

20A（MAX 150A based on battery capacity）

30A

Battery breaker

No

Cold start

No Support

No battery power-on function

Support

STANDARDS

Efficiency

≥90%

≥91%

≥92%

≥93%

Safety

EN 62040-1

EMC

EN 62040-2

Certificate

TLC/CECP/CE

IP

IP20

Function

EPO

ECO

Bypass

Bypass breaker

Parallel

6 pcs

Parallel shared battery pack

Communication

Control Panel

LED+LCD display（7 inch）

Communication port

Standard RS232；Dry contact、Standard smart card slot（Optional SNMP card、RS485）

SNMP Serial NO.

SMP-00167-00（China version） SMP-00273-00（Oversea version）

Consult factory

SMP-00003-00

PHYSICAL

W*D*H

465*887*858(mm)

565*795*1195(mm)

565*795*1195

1160*775*1600(mm)

1400*915*1900(mm)

1760*1010*1897（6hp）

2600*1200*2000(12hp）

3200*1200*2000(12脉冲）

Net Weight（KG）

170.5

193

202.5

300

328

393

453

833

851

1219

1425

1630（6hp）

1810（6hp）

2850(12hp）

3150(12脉冲）

Noise Level(Less 1m)

＜55dB

＜58dB

＜60dB

＜65dB

≤ 65dB

≤ 67dB

≤ 71dB

≤ 73dB

ENVIRONMENT

Operation temperature

0-40℃

Operation Humidity

5-95%RH，No condensation

Storage temperature

-25-55℃

Storage relative humidity

0-95%RH，No condensation

SHANGYU POWER CHINA® GP33 series Online ups with Isolation Transformer Feature And Application

SHANGYU POWER CHINA® GP33 series Online ups with Isolation Transformer

Model No.:GP3310K/GP3315K/GP3320K/GP3330K/GP3340K/GP3360K/GP3380K/

GP33100K/GP33120K/GP33160K/GP33200K/GP33250K/GP33300K/GP33400K/GP33500K/GP33600K

UPS power range: 10KVA~600KVA

Features:

--Standard output isolation transformer.Optional input isolation transformer

-PM2.1 technology insect proof waterproof, noise and dustproof

-Support 3 parallel functions,Optional N+X parallel redundancy

-Adjustable charging current,such as 8A for long-run models

--Excellent industrial environmental protection performance

-True double conversion DSP technology, high reliability

-Eco mode operation for energy saving(ECO)

-Output adjustable 200/208/220/230/240VAC

-Dust gauze Level between IP20-IP51

-Emergency power off function(EPO)

-Generator compatible

Application:

Industry

Processes

Infrastructure

Healthcare

Service sector

Telecommunications

Embedded with isolated transformer, GP33 series three-phase UPS solution raging from 10kva-600kva are designed for harsh environment especially industrial application. With high power factor up to 0.97，full DSP control and online double conversion design, it can offer high levels of reliability and protection for industrial facilities and mission-critical systems, ensuring maximum power reliability.

General Features

● Online double conversion

● Full DSP control

● High power factor: 0.9

● Wide input adaptability:(380Va/400Vac/415Vac) (-25%/+20%)

● Optimized battery management，self-test&lexible battery configuration

● N+X parallel redundancy

● Strong overload capability：110%/125%/150% overload for 60/10/1min.

● Power walk-in

● Generator mode

● LBS synchronization

● Multi-protection

● User-friendly network management

Advantages

High quality power supply

Permanent operation in VFI mode (online double conversion).

Output voltage precision under all load conditions.

High overload capacity to withstand abnormal load conditions.

A very high short-circuit current capacity which facilitates the selection of protective devices for selectivity in the downstream distribution.

An isolation transformer installed on the inverter output to ensure complete galvanic isolation between DC circuit and load output. This insulation also provides a separation between the two inputs when they are supplied by different sources.

Sinusoidal ThdU output voltage < 2 % with linear loads and < 4 % with non-linear loads.

High availability

Field-proven technology.

Fault-tolerant architecture with redundancy of basic functions, such as the ventilation system.

Easy maintainability reduces MTTR thanks to pull-out sub-assemblies and front access all components.

Accurate diagnostics guarantee power supply to the load.

Cascade failure prevention for parallel systems.

Mechanical & electrical robustness for industrial environments.

Soft start capability (ramp up) of the IGBT inverter allows a good operation even with a genset.

Specifically designed to be adapted to different industrial environment: high IP protection options, high peak current capability, long back up time…

Cost-effective equipment

The "clean" IGBT rectifier allows:

- a high efficiency,

- a high and constant input power factor,

- a low THDi.

These characteristics help to limit the dimensions of upstream network infrastructure.

Possibility to create new neutral system without additional losses (extra transformer required on by-pass line only).

High short-circuit capability simplifies downstream protective devices.

High power density: its small footprint saves space on your premises.

Mains connection of the rectifier requires only 3 cables (no neutral).

Battery connection to UPS requires only 2 cables.

User-friendly operation

A control panel with graphic display for more ergonomic operation.

An array of "com-slot" plug-in communication interfaces, for upgrading your operating requirements evolution.

Simplified maintenance

An advanced diagnostic system.

A remote access device connected to the remote maintenance centre.

Easy access to subassemblies and components, facilitating tests and reducing maintenance time (MTTR).

SHANGYU POWER CHINA® 500KVA LCD 3/3 Phase industrial ups Details

When compare with peers, SHANGYU POWER CHINA® 3/3 Phase industrial ups advantages as below:

1. Other peers can only switch 70% of the load instantaneously without load, while SHANGYU POWER CHINA can switch full load instantaneously without load, and has a strong load carrying capacity for non-linear loads

2. Other peers are single DSP control mode, while SHANGYU POWER CHINA is dual DSP control mode

3. The floating charging of other peers cannot be automatically converted, but the SHANGYU POWER CHINA is automatically switching to floating charging, and the battery is regularly self-tested

4. Other peers can parallel 2-4 units, while SHANGYU POWER CHINA can parallel 6-8 units

5. Other counterparts have a single auxiliary power supply system, while SHANGYU POWER CHINA is a redundant dual auxiliary power supply system with auxiliary power fault protection

6. SHANGYU POWER CHINA supports double busbar system, busbar overvoltage protection, other peers do not support it

7. Regarding the nonlinear load waveform distortion, the SHANGYU POWER CHINA parameter and the actual value are both THDV≤4%-5%, while other peers show THDV≤5% on the parameter, but the actual THDV≤6%-8%

8. Other peers use static switches of relays, while SHANGYU POWER CHINA uses static switches of SCR thyristors, which have stronger impact resistance

9. Quality is our culture. 90% of the components of SHANGYU POWER CHINA UPS use Fairchild, Infineon, Onsemi, TI, NXP and other well-known brand A grade materials to ensure their good performance. More importantly, the fault detection rate of SHANGYU POWER CHINA UPS is ≦0.2% -0.5%, while the fault detection rate of other peers is ≦0.5%-1%.

10. SHANGYU POWER CHINA low frequency industrial UPS can be used for 25 years above, and it will fault after 5-7 years usually; while the low frequency industrial UPS of the peers can be used for 15 years above, usually after 2-3 years, it will fault. The operating cost of SHANGYU POWER CHINA ups is far lower than the peers everyday.

Item

SHANGYU POWER CHINA®

Other Peers

Without load

switch full load instantaneously

switch 70% load instantaneously

Control mode

dual DSP

single DSP

Static switches

SCR thyristors

relays

Floating charging switch

Automatically,battery self-tested

cannot be automatically converted

Parallel function

6-8 units

2-4 units

THDV

≤4%-5%

THDV≤6%-8%(show THDV≤5%)

Bus-bar system

supports

not support

Fault detection rate

≦0.2% -0.5%

≦0.5%-1%

Machine life

25-30 years

20-25 years

MTBF

>250000hours

>175000hours

Fault happen

after 5-7 years use

after 2-3 years use

Key Features(Transformer Based UPS 10~400KVA 3:3):

High reliability configuration

Double conversion online design, clean sine wave sources, frequency tracking, phase-locked, voltage regulation, low distortion, no power fluctuation interference, bypass mode available, built-in manual maintenance bypass switch, auto mode-switching by interlocks, unattended operation, cold start function.

N+X parallel redundancy

Unbalanced-rating paralleling technology, up to 8 paralleled units, auto load-sharing, flexible configuration & updating.

Wide input range

Input voltage range up to 20%, low battery mode switching frequency, long battery life, 45Hz ~ 65Hz auto sensing , high compatibility with local generators.

Digital Control

2 DSP control units, intelligent battery management technology, auto battery floating charge switching, I/O voltage settings available through control panel.

Stable Operation

Stable & continuous power supply available under extreme grid conditions, SPWM technology, 6th generation IGBT module, optional isolation transformer, transformer based configuration, phase-loss resistance.

Comprehensive Protection

Output overload & short-circuit protection, battery fault & under-voltage protection, battery over-charging protection, inverter over-temperature protection, auto bypass mode switching, self-diagnosis function, remote EPO function.

User-friendly Communication

Optional LED / LCD display, status & statistics of operation display, optional RS232 / RS485 interface, external SNMP adapter, remote monitoring & management available.

SHANGYU POWER CHINA GP33 Series best 3-phase online transformer based ups industrial is a high-performance digital UPS using the DSP control technology. The uninterruptible power supply is connected between the mains and critical loads to supply high-quality power to the loads.

The 3-Phase 380/400/415V 100kVA 100kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances. It’s best for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

GP33100K 3 phase double conversion online data center security 100kVA UPS power supply seamlessly links to your electrical network using state of the art electrical performances like very wide input voltage range, high overload and short circuit capacity, and integrated back feed protection, providing excellent power quality.

This IGBT UPS benefits from highly efficient double-conversion technology that delivers operating cost savings. It achieves 93% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs.

The output isolation transformer provides high reliability to adapt

to different harsh industrial environments and protects the critical

loads 100% 3-phase unbalanced load adapt to different kinds of applications.

Dual power supply redundancy.

Wide input voltage range provides high adaptability to the grid and

extend the battery service life Main PCB board with professional

electromagnetic shielding improves the reliable performance of EMC

Dual air ducts design offers good cooling to protect the

components and extend the service life.

– True galvanic isolation transformer design

– Output power factor 1.0

– Small Footprint

– High Efficiency 95%

– All Series Touch Screen Design

– DSP technology guarantees high reliability

Embedded with isolated transformer, UID three-phase UPS solution raging from 10kva-20kva are designed for harsh environment especially industrial application. With high power factor up to 0.97，full DSP control and online double conversion design, it can offer high levels of reliability and protection for industrial facilities and mission-critical systems, ensuring maximum power reliability.

● High power factor:0.9

● Optimized battery management，self-test & flexible battery configuration

● Power walk in

For one decade, SHANGYU POWER CHINA UPS Power has successfully designed and manufactured uninterruptible power supply (UPS) systems, with over 70 technology patents registered in energy conversion. The expertise built over years in providing premium quality solutions to secure highly reliable power supply even in the harshest environment positions uniquely our 3-phase UPS range.

From Oil & Gas platforms to industrial site and nuclear power stations as well as for server rooms or data centers, you will find in our range the right stand-alone or modular systems that protect your power supply, ensures your business continuity and protect your investments.
