As the professional manufacturer, SHANGYU POWER CHINA® GP Series Online Transformer Based Industrial UPS is equipped with standard built-output isolation transformers, static bypass switch, and manual maintenance switch, making this series Online Transformer Based Industrial UPS has a very high capacity to engage in short circuits. It could be used for the worst environment. Also, it has a perfect protection function. Moreover, it has the AC input, over-voltage, under-voltage, output over-voltage, short circuit protection, inverter, rectifier over-temperature protection, voltage under-voltage warning, battery over-charging protection, and other protections in one, to ensure system operation stably and reliably.

SHANGYU POWER CHINA® Online Transformer Based Industrial UPS

As the professional manufacturer, this SHANGYU POWER CHINA® 6KVA LCD Online Transformer Based Industrial UPS is the latest invention of high-quality ups products, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty. The SHANGYU POWER CHINA® 6KVA LCD Online Transformer Based Industrial UPS is adopting the technology, which is combined with the world's most advanced DSP digital control technology currently, and IGBT high-frequency Pulse Width Modulation technique (PWM). Double-conversion online topology design makes the output frequency of UPS, which is used for tracking, phase-locking, voltage regulator and filter out noise, and interference from the power grid fluctuations in pure sine wave power supply, and makes the UPS more comprehensive and perfect protection for the users. with years of R&D, SHANGYU POWER CHINA has designed a modular structure, whose overall operation is 5 times more reliable and stable performance than regular UPS, and MTBF is over 300,000 hours.

SHANGYU POWER CHINA® GP11 series Online Transformer Based Industrial UPS Parameter (Specification)

Model

GP1101K

GP1102K

GP1103K

GP1106K

GP1110K

GP1115K

GP1120K

Capacity

1KVA/ 0.8KW

2KVA/ 1.6KW

3KVA/ 2.4KW

6KVA/ 5.4KW

10KVA/ 9KW

15KVA/ 12KW

20KVA/ 16KW

I/O mode

1/1 phase

Work mode

True double conversion online ups

Install type

Tower

INPUT

Voltage

208/220/230VAC

Voltage Range

160~280VAC

Frequency Range

50Hz ±5%

50Hz ±10%

Power Factor

≥0.99@100% load

Breaker

Standard (in-built) input breaker + input terminal block

Breaker capacity

None

50A/1P

63A/1P

100A/1P

125A/1P

OUTPUT

220VAC：≤±1%

50Hz：≤ ±0.1%

50Hz ：≤±0.5%

0.8

0.9

Transfer Time

0ms

Overload

120% load：≥1min，150% load：≥0.5min

125% load：≥0.5min

10A*2 Sockets+Terminal block

Standard (in-built) output breaker + output terminal block

BATTERY

Battery Type

VALR battery

Battery Voltage

72V（6pcs）

96V（8pcs）

192V（16pcs）

Charging Current

3A (adjustable range: ±1A)

Battery breaker

No

Cold start

Support

No battery power-on function

STANDARDS

Efficiency

≥85%

≥93%

Safety

EN 62040-1

EMC

EN 62040-2

Certificate

CECP/CE/EMC/LVD/ROHS；TLC (Refer to GP31 series qualification)

IP

IP20

Function

EPO

No Support

ECO

Bypass

Standard (in-built)

Bypass breaker

Parallel

Parallel shared battery pack

Communication

Control Panel

LCD（2.8 inch）+LED display

LCD+LED display

Communication port

Standard RS232 （Optional SNMP card）

SNMP Serial NO.

SMP-00356-00

SMP-00013-00（External）

PHYSICAL

W*D*H

220*510*395（mm)

280*640*686(mm)

392*772*850（mm)

Net Weight（KG）

22.5

23.5

29

72

89

166

192

Noise Level(Less 1m)

＜50dB（Less）

＜55dB(Less)

ENVIRONMENT

Operation temperature

0-40℃

Operation Humidity

10-95%RH，No condensation

Storage temperature

-25-55℃

Storage relative humidity

0-95%RH，No condensation

SHANGYU POWER CHINA® GP11 series 6KVA Online Transformer Based Industrial UPS Feature And Application

SHANGYU POWER CHINA® GP11 series 6KVA Online Transformer Based Industrial UPS 1-40KVA ups

Model No.:GP1101K/GP1102K/GP1103K/GP1106K/GP1110K/GP1115K/

GP1120K/GP1130K/GP1140K

UPS power range: 1KVA~40KVA

GP Series Low-Frequency Online UPS includes 3-phase ins and single phase out from 6KVA-600KVA, which can be in parallel with 8 units UPS directly, conveniently, and fast. flexible parallel technology could be applied to different loads and systems. According to the needs of customers constitute, it could make N+1 or N+X construction, but also according to the different needs of customers with different capacities, it could be in parallel with random 8 units UPS, and all the load will be loaded by all 8 units UPS averagely of the parallel redundant UPS system. If any UPS of the parallel redundant system was failed, the UPS will share its load immediately, to ensure the system running normally. During the process of the parallel UPS, it does not set the host and the standby one but was selected by customers flexibly. The first turned-on UPS is automatically set to the host, when the host system failed, the host identity is immediately transferred to another UPS, thereby ensuring the supply of electricity for clients during the use process, so it could become a true uninterruptible power supply.

Features:

--Standard output isolation transformer. Optional Input Isolation Transformer

-PM2.1 technology is insect-proof, waterproof, noise-proof and dust-proof

-Support 3-way parallel function, optional N+X parallel redundancy

- Charging current is adjustable, such as 8A for long battery life models

--Excellent industrial environmental performance

- True online double conversion and DSP technology, high reliability

- Energy-saving eco-mode operation (ECO)

- Output adjustable 200/208/220/230/240VAC

-Dust filter grade between IP20-IP51

-Emergency Power Off (EPO)

- Wide input adaptability: (380Va/400Vac/415Vac) (-25%/+20%)

-Optimized battery management, self-test & flexible battery configuration

- Strong overload capacity: 110%/125%/150% overload for 60/10/1 minute.

- walk-in power supply

-LBS synchronization

-Multiple protection

- Compatible generators

- High power factor: 0.9

- User-friendly network management

Application:

Servers.

Educational Institutes.

BFS

Healthcare Systems.

Telecommunication Equipment.

Small & Medium Data Centers.

CNC Machines.

Pharmaceutical Appliances.

X-ray Machines.

Industrial Facilities

laboratory equipment

medical facilities

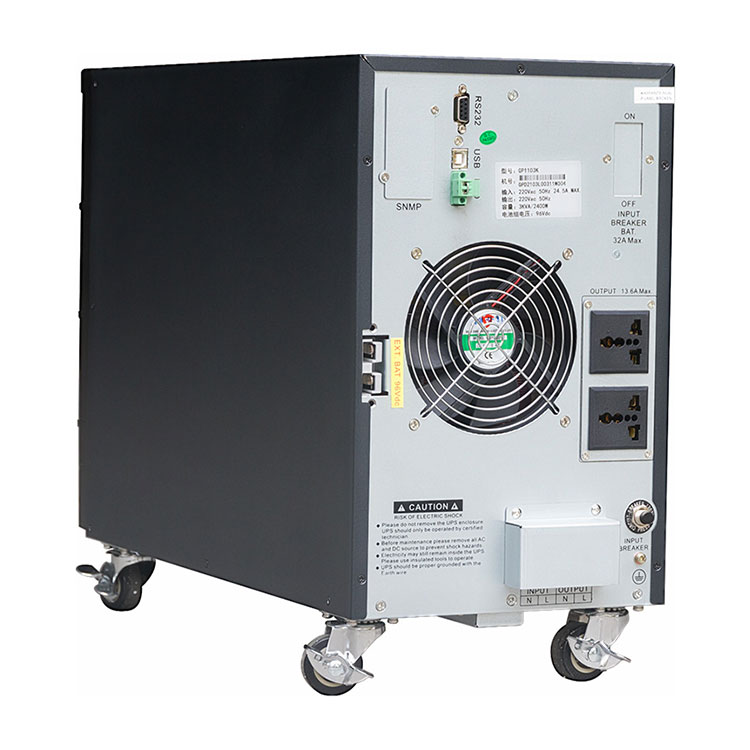

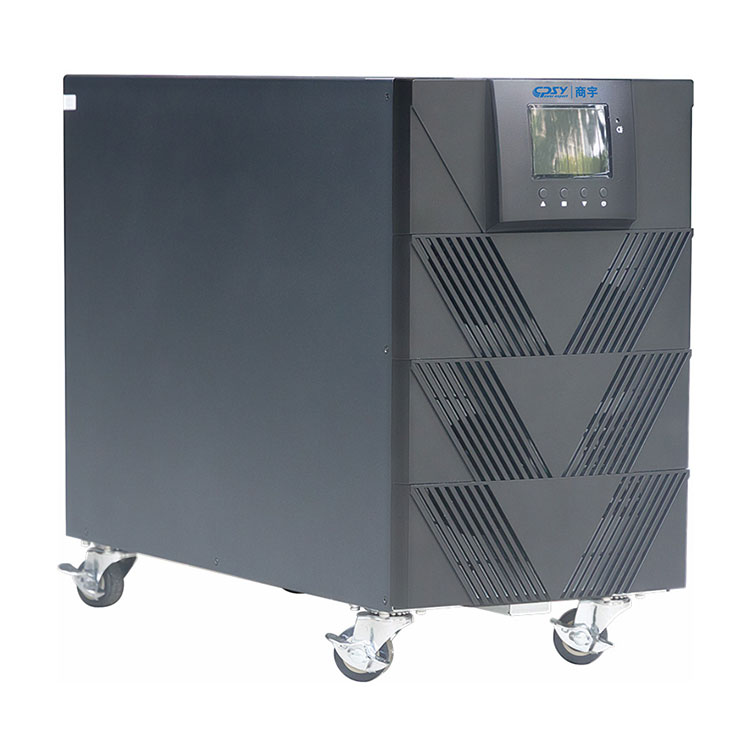

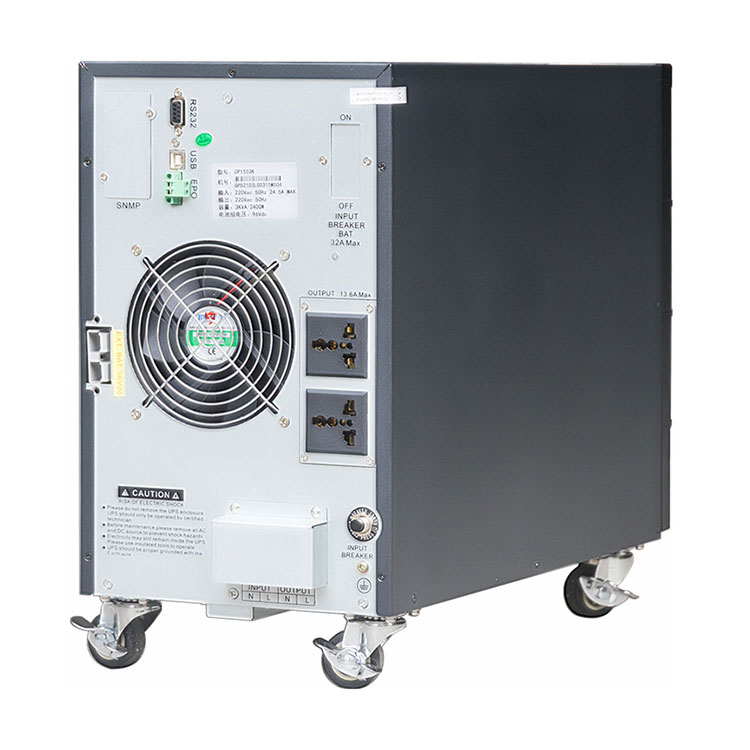

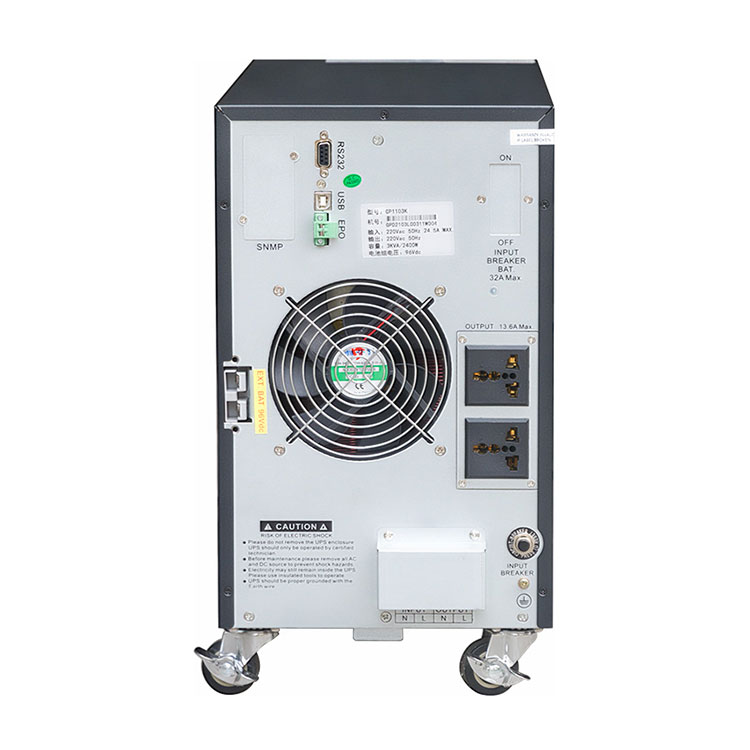

SHANGYU POWER CHINA® GP11 series 6KVA Online Transformer Based Industrial UPS Details

Embedded with isolated transformer, GP series three-phase Online Transformer Based Industrial UPS solution raging from 6kva-600kva are designed for harsh environment especially industrial application. With high power factor up to 0.97，full DSP control and online double conversion design, it can offer high levels of reliability and protection for industrial facilities and mission-critical systems, ensuring maximum power reliability.

The 6KVA Online Transformer Based Industrial UPS and high frequncy ups performance comparison

No.

Comparison index, performance

High frequency UPS

low frequency UPS

overload capacity

generally

strong

resistance to input surge

Output impact resistance, short circuit capability

Enter PF value

0.99

machine efficiency

90 ~ 98%

85 ~ 95%

power density

high

small

Zero ground voltage

poor

relatively good

output level components

many

few

power device capacity

large

10

Damage to the device at the time of failure

Low

11

reliability

good

12

maintainability

more complicated

simple

13

weight

light

Heavy

14

size

15

Adaptability to the generator

Material of UPS:

1. PCB Board: Epoxy Copper laminate, good electrical conductivity, stable quality.

2. VRLA Battery: 99.994% pure lead, A grade ABS fireproof/waterproof case, Good copper teminal, Sulfuric acid electrolyte.

3. Body case: Metal & plastic, dust-proof and waterproof IP21,anti-oxidation.

4. Cable: PVC, copper

Material of VRLA Battery:

1. 99.994% pure lead

2. A grade ABS fireproof/waterproof case

3. Good copper teminal

4. Sulfuric acid electrolyte
