SHANGYU POWER CHINA® is a professional manufacturer of Online Transformerless Commercial UPS supplies. We are located in Shenzhen and have a registered capital of $2.3 million and a production area of 25,000 square meters. We have our own R&D team with more than 30 R&D engineers with more than 20 patents, and put 15% sales revenue each year to R&D research.With strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates.Our aim is continuously to offer our customer stable and reliable, clean and high-efficiency power.welcome to inquiry.

SHANGYU POWER CHINA® Uninterruptible Power Supply

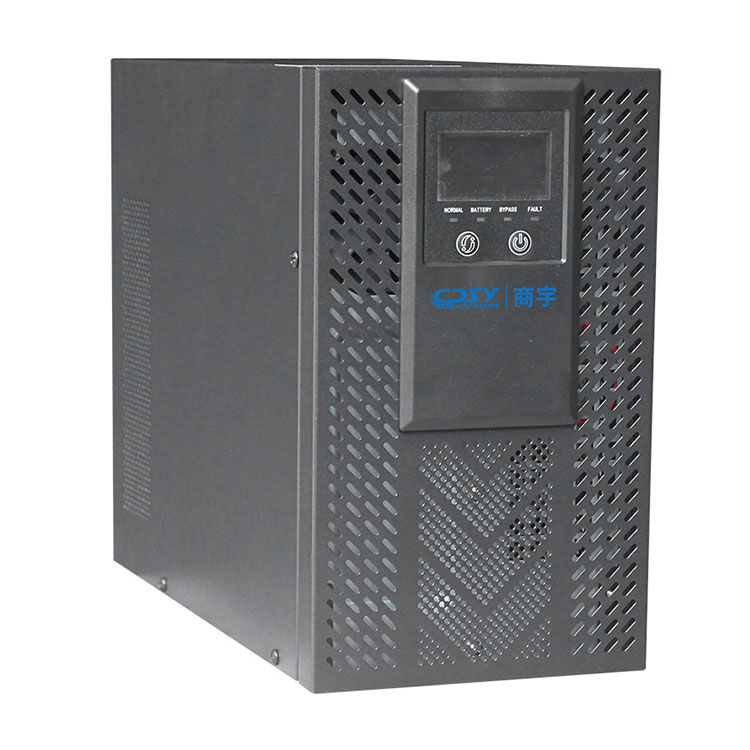

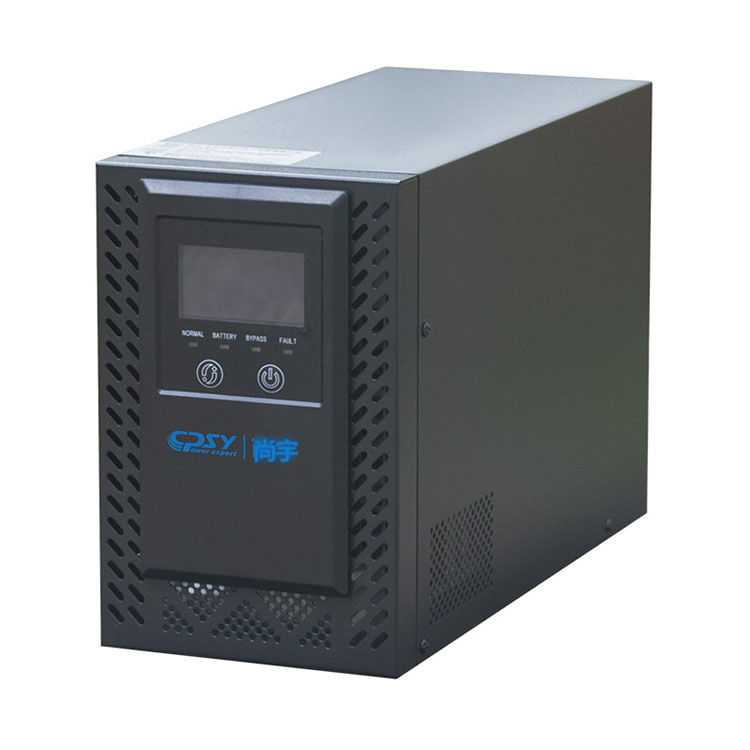

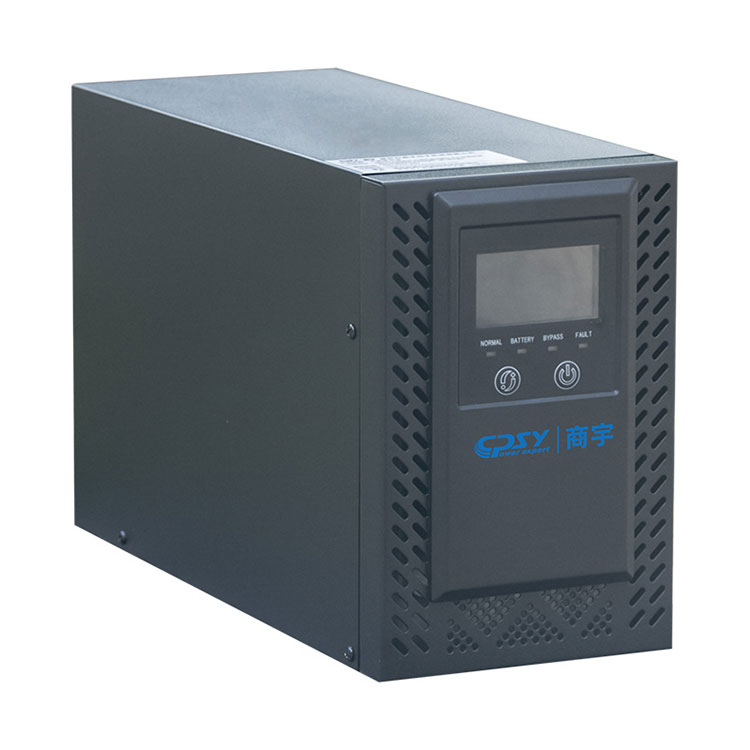

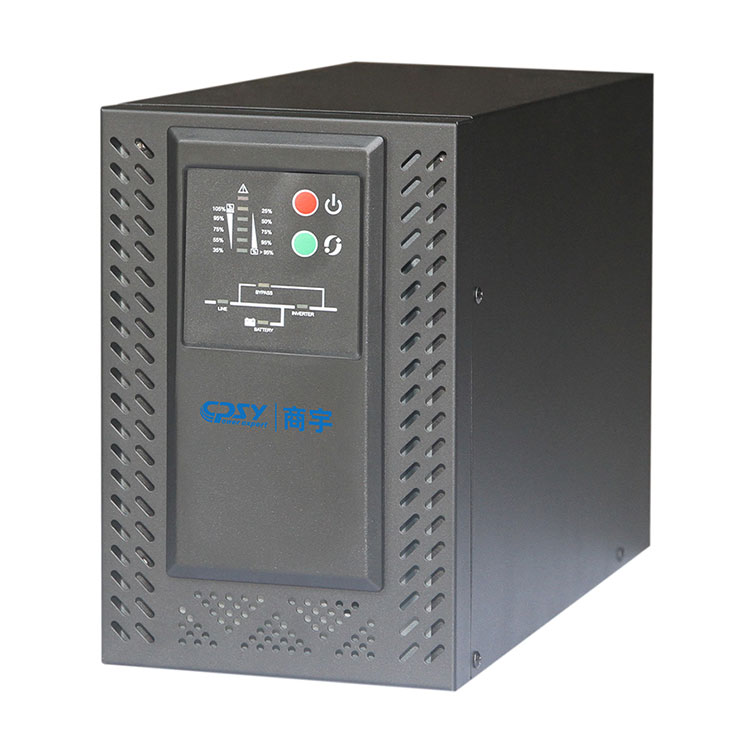

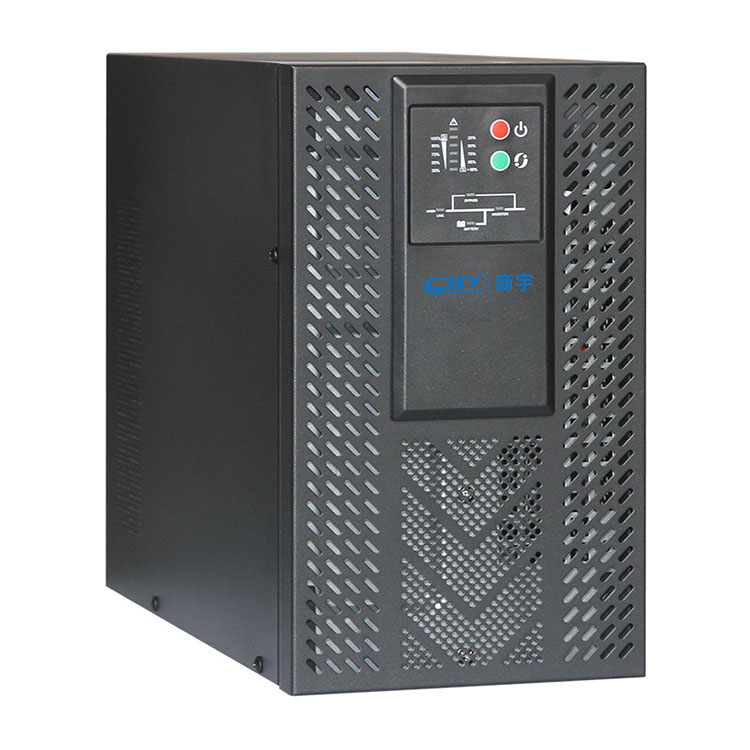

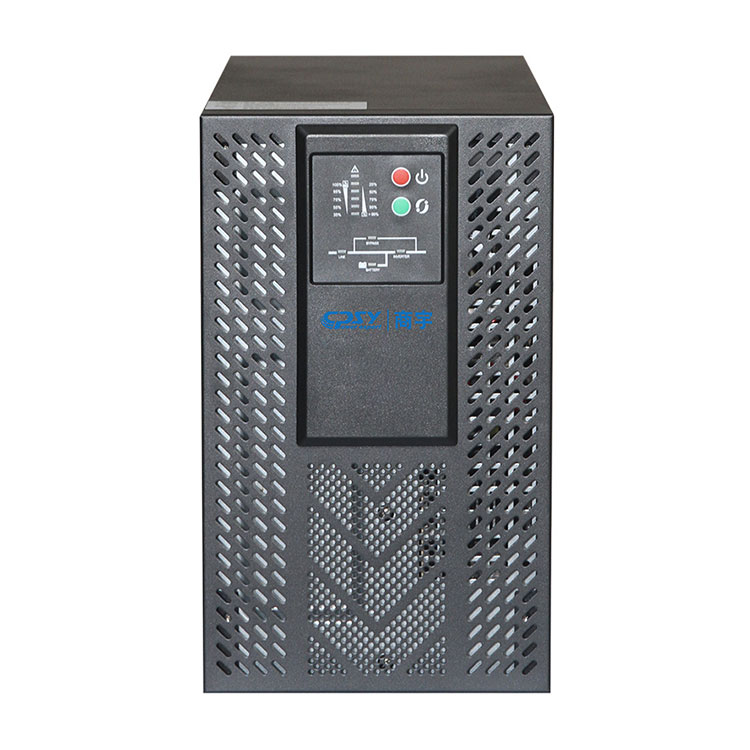

This SHANGYU POWER CHINA® Online Transformerless Commercial UPS is the latest invention of high-quality ups products, ups range from 400va to 800KVA, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty. The SHANGYU POWER CHINA® Online Transformerless Commercial UPS is made of metal+ PCBA, which has been designed to meet most demanding power requirements, being easy to install and maintain. It combines latest high energy efficiency technology and high power density technology，achieving small size, stable performance and price competitive for UPS products.

SHANGYU POWER CHINA® Online Transformerless Commercial UPS Parameter (Specification)

Model

HP1101B

HP1101H

HP102B

HP1102H

HP1103B

HP1103H

HP1106B

HP1106H

HP1110B

HP1110H

Capacity

1KVA/0.8KW

2KVA/1.6KW

3KVA/2.4KW

6KVA/5.4KW

10KVA/9KW

I/O mode

1/1 phase

Work mode

True double conversion online ups

Install type

Tower

INPUT

Voltage

220VAC

Voltage Range

115~300VAC

120~275VAC

Frequency Range

50/60Hz ±10%

Power Factor

≥0.996

Breaker

10A(Resettable overcurrent protection device)（Standard）

16A(Resettable overcurrent protection device) （Standard）

20A(Resettable overcurrent protection device)（Standard）

40A1P（Standard）

63A/1P

OUTPUT

220/230/240V：≤±2%

220/230/240V：≤±1%

50/60Hz：≤±0.5%

0.8 (Note: when the ambient temperature is lower than 30 degrees, it can be changed to 0.9)

0.9

Transfer Time

0ms

Overload

105%-125% : 1min, 125%-150% : 30s, >150% : 500ms

105%-125% : 10min, 125%-150% : 30s, >150% : 500ms

No

Breaker capacity

10A*2 Sockets

10A*4 Sockets

10A*3 Sockets+terminal block

terminal block

BATTERY

Battery Type

VALR battery

Battery Voltage

24V（2pcs）

36V（3pcs）

48V（4pcs）

72V（6pcs）

96V（8pcs）

180V（15pcs）

192V（16pcs）

Battery Capacity

2*12V9AH

External battery

4*12V9AH

6*12V9AH

15*12V7AH

16*12V9AH

Charging Current

1A

6A

4.5A

Charging Current adjustable

No support

Backup time(@50%load）

10min

8min

Battery breaker

Cold Start

Support

No battery power-on function

STANDARDS

Efficiency

≥88%

≥90.5%

Safety

EN 62040-1

EMC

EN 62040-2

Certificate

TLC/CECP/CE/RoHS

IP

IP20

Function

EPO

Support(Optional accessories MSP-00238-00)

ECO

Bypass

Optional (in-built)

Bypass breaker

MSP-00235-00（2P 63A）

MSP-00236-00（2P 63A）

Parallel

Support（Max 3pcs）

Parallel shared battery pack

Communication

Control Panel

LED+LCD Display

LCD+LED Display

Communication port

Standard RS232, optional SNMP card, AS400 relay card

SNMP Serial NO.

Relay card Serial NO.

MSP-00243-00（With card slot）

PHYSICAL

W*D*H

145*350*228（mm)

190*395*328(mm)

248*526*615（mm）

240*518*459（mm）

Net Weight（KG）

9.6

4.9

17.5

8.3

23

8.9

55

19.2

63

20

Noise Level(Less 1m)

＜50dB(1m)

＜55dB(1m)

ENVIRONMENT

Operation temperature

0-40℃

Operation Humidity

10-95%RH，No condensation

Storage temperature

-25-55℃

Storage relative humidity

0-90%RH，No condensation

SHANGYU POWER CHINA® Online Transformerless Commercial UPS Feature And Application

HP11 series 1-3kva single phase Online Transformerless Commercial UPS（ups）

Model: HP1101B(H)/HP1102B(H)/HP1103B(H)

UPS power range: 1KVA~3KVA

Features:

-- Advanced work mode

DSP digital control Technology, high performance

-- Protection of comprehensive and reliable

it can effectively solve 9 power problems such as power failure, surge, transient, spike, etc.

-- The design of optimizing battery pack

1KVA--24VDC/36VDC(optional) ,2KVA---48VDC/72VDC(optional) 3KVA--72/96VDC(optional)

-- Function of the charger extension

charging current is 1-4A, support extended to 8A

-- More value-added services

it can extended warranty service to 3years,

free OEM design service, consulting service, training service.

-- Intelligent management

RS232/USB are optional

-- Strong adaptability to environment

overload capacity is 120%

● Online double-conversion with full DSP control

● IGBT inverter with output isolation transformer

● 100% unbalance load capability

● Output power factor 0.9

● Generator compatible

● Support battery cold start and auto-restart when mains power is restored

● ECO mode operation for energy saving

● Superior protection

● 7 inches LCD touch screen, friendly human & machine interface

● Front access makes maintenance and replacement simplified (60 ~ 120 kVA)

● Intelligent self-diagnosing function, all kinds of failure protection, large capability of history records storage

● High MTBF (> 200,000 h)

● Low MTTR (< 0.5 h)

● Standard emergency power off (EPO)

● Standard RS232, RS485, dry contacts communication port

● Optional SNMP communication port

● Optional N+X redundancy parallel up to 6 units

● Optional input filter to improve input power factor

Application:

PC, ATM machine, server, network,radio and television,microcomputer room, bank securities network, signal station, mobile base station

SHANGYU POWER CHINA® 3kva Standby Uninterruptible Power Supply Details

What’s the different from the 3kva Standby Uninterruptible Power Supply ups and 3kva inverter?

Item

UPS

Inverters

Usage

used for houses, offices, government and commercial or industrial

Only used for normal lighting at homes or solar system

Circuit

consists of three things, rectifier/charger, Inverter and controller

comprises of two things, inverter and controller

backup

UPS give backup only 10 to 20 minutes,suitable for computer backup and data protection

3 to 6 hrs based on battery and inverter, not suitable for computer backup,provide power backup to total home appliances, lights, fans

Time delay to switch when power cut

Negligible

Microsecond

Maintenance

No need Maintenance

Need to fill water toppings at regular intervals of time

Our services

Products Technical Support system

1.Provide the necessary all technical and professional training in factory

2.Comprehensive technical support provide pre-sales, in-sales and after-sales service.

3.Presentation & promotion of the new innovative products & technology

Spare Parts warranty system

1.Provide certain spare parts in every order shipment.

2. Provide free maintenance or replacement spare parts within the given warranty period

3. Provide free maintenance Technology and spare parts chargeable under out of warranty.

4.One years warranty for offline ups and 7-24ah battery, two years warranty for online ups and 38-90ah battery, three years for battery 100ah above.

5.Provide the extended warranty as expected

Value-Added Services

1.Provide the long time maintenance service

2.Provide OEM/ODM order , also customized service for ups solution and data center

3.Provide the regular routine maintenance service.

Packing details:

MODEL NO.

HP1101B/HP1101H

HP1102B/HP1102H

HP1103B/HP1103H

QTY/CTN

1pcs

Unit Size

360x146x227mm

400x193x327mm

Net Weight

9.9KG/5.2KGS

17.7KG/8.6KGS

23.2KG/8.7KGS

Carton Size

435x236x346mm

495x328x460mm

Gross Weight

10.7KG/6.2KGS

19.1KG/9.6KGS

25KG/10.3KGS

20FT Container

560PCS

320PCS
