Battery Storage Cabinets
SHANGYU POWER CHINA is one of the professional Battery Storage Cabinets manufacturers and suppliers in China, providing easy-maintainable and durable Battery Storage Cabinets worldwide. Not only do we have our own factory, but we also offer competitive prices. Our products have obtained CE certification, and we also provide customized services. You are welcome to place an order.
Send InquiryWhen additional battery reserves are required, a variety of battery storage cabinets are available. SHANGYU POWER CHINA® battery storage cabinets can be customized to meet Zone 4 seismic requirements and can be customized to be waterproof. The battery storage cabinet has an IP54 protection rating and can be used safely in harsh environments. It can be equipped with optional door locks and can accommodate various battery combinations. The products are constructed of aluminum and lined with a proprietary fire-resistant lining that can be customized to your needs.
SHANGYU POWER CHINA® Battery Storage Cabinets
SHANGYU POWER CHINA® battery storage cabinets provide a full range of battery cabinets for UPS, solar energy and telecommunications applications. They use 50% off profiles and 100% off profiles. The maximum load capacity reaches 1500KG, which can meet the needs of battery storage of any material. The cabinet can be customized with fans, which are optional. Air conditioner, maintains the internal temperature and prevents the battery from catching fire due to temperature. These battery storage cabinets can be configured to match OEM cabinets and provide a competitive option for system upgrades or new projects.
SHANGYU POWER CHINA® Battery Storage Cabinets Parameter (Specification)
| Model No. | Dimensions (L*W*H) mm | Weight (KGS) | Battery capacity | Number of batteries | Shape & Material |
|---|---|---|---|---|---|
| C-1 | 435*210*270 | 4 | 17AH/24AH/38AH/65AH/100AH | 5/3/2/1pcs | One layer box |
| C-2 | 450*470*320 | 6 | 17AH/24AH/38AH/65AH/100AH | 10/6/4/2pcs | One layer box |
| C-3 | 585*470*320 | 9 | 17AH/24AH/38AH/65AH/100AH | 14/8/6/3pcs | One layer box |
| C-4 | 450*470*615 | 16 | 17AH/24AH/38AH/65AH/100AH | 20/12/8/4pcs | One layer box |
| C-6 | 585*470*615 | 19 | 17AH/24AH/38AH/65AH/100AH | 28/16/12/6pcs | One layer box |
| C-8 | 780*470*615 | 21 | 17AH/24AH/38AH/65AH/100AH | 36/20/16/8pcs | Two layer box |
| C-10 | 950*470*615 | 26 | 17AH/24AH/38AH/65AH/100AH | 44/28/20/10pcs | Two layer box |
| C-12 | 780*470*900 | 30 | 24AH/38AH/65AH/100AH | 30/24/12pcs | Two layer box |
| C-16 | 780*470*1190 | 40 | 24AH/38AH/65AH/100AH | 40/32/16pcs | four-layer box |
| C-20 | 950*470*1190 | 46 | 24AH/38AH/65AH/100AH | 56/40/20pcs | four-layer box |
| C-24 | 950*470*1528 | 60 | 65AH/100AH | 24pcs | four-layer box |
| C-32 | 780*880*1190 | 75 | 65AH/100AH | 32pcs | four-layer box |
| C-40 | 950*880*1190 | 95 | 65AH/100AH | 40pcs | five-layer box |
| CD8-200-1 | 780*880*900 | 70 | 200AH | 8pcs | Three-layer box |
| CD16-150-1 | 780*1080*750 | 75 | 150AH | 16pcs | Angle iron, external cold plate |
| CD16-150-2 | 865*640*1480 | 95 | 150AH | 16pcs | Square tube, 0.7 plate |
| CD16-200-1 | 800*1160*750 | 75 | 200AH | 16pcs | Angle iron, external cold plate |
| CD16-200-2 | 1185*690*1480 | 105 | 200AH | 16pcs | Square tube, 0.7 plate |
| CD32-150-1 | 780*1080*1350 | 105 | 150AH | 32pcs | Angle iron, external cold plate |
| CD32-150-2 | 865*1190*1480 | 120 | 150AH | 32pcs | Square tube, 0.7 plate |
| CD32-200-1 | 1185*1280*1480 | 120 | 200AH | 32pcs | Square tube, outer 0.7 plate |
| CD40-150-1 | 1055*1190*1480 | 120 | 150AH | 40pcs | Square tube, outer 0.7 plate |
| CD40-200-1 | 1375*1280*1480 | 120 | 200AH | 40pcs | Square tube, outer 0.7 plate |
SHANGYU POWER CHINA®Battery Storage Cabinets Features:
− The smallest footprint in the industry
− Low total cost of ownership
− Safe and sustainable battery technology
− Optional key door lock
− Optional protection grade IP20 or IP54
− Optional colors, MOQ=500pcs
− Maximum load capacity 1500kg
− Support customization
− Suitable for any battery storage
− Optional fan
− Frame constructed from welded thick gauge and heavy duty industrial grade carbon steel
− Acid-resistant powder coating
– Optional heavy-duty casters with brakes
Standards: Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI standards, UL certification
Registered to ISO 9001:2015 standards
Seismic certification, CE compliant
Material: SPCC high quality cold rolled steel plate
Installation profile thickness: 2.0mm
Other thickness: 1.2mm
load capacity:
Static load: 800-1500kg (on adjustable feet)
Protection level: IP20 or IP56
Surface treatment: degreasing, pickling, phosphating, powder spraying.
Application:
server systems, telecommunications systems, community networks, network systems, monitoring systems.

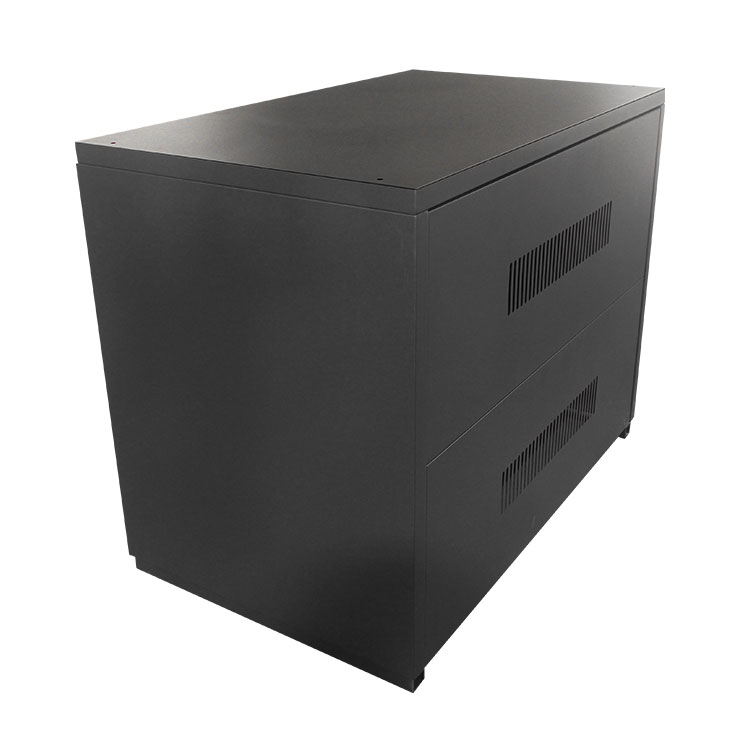

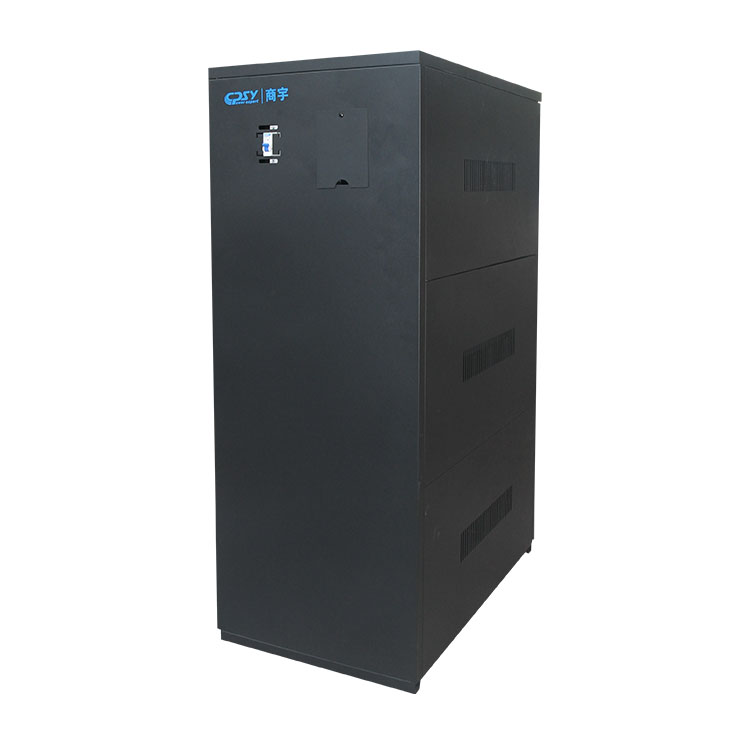

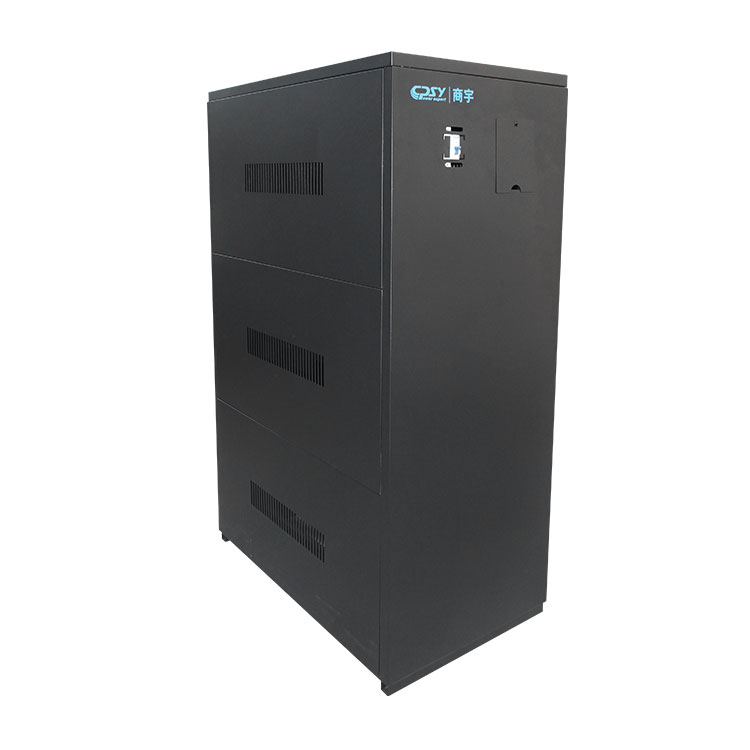

SHANGYU POWER CHINA® Battery Storage Cabinets Details
When compare with peers, SHANGYU POWER CHINA® Battery Storage Cabinets advantages as below:
Accommodates multiple battery and circuit breaker manufacturers
The space-saving footprint is the most compact design in the industry.
Battery isolation, internal panels in polycarbonate
Colors can be customized to match existing equipment.
Universal battery cabinet for all three-phase SHANGYU POWER CHINA UPS in the power range 10kVA to 800kVA
Battery cabinet designed to accommodate standard VRLA batteries ranging from 17Ah to 250Ah

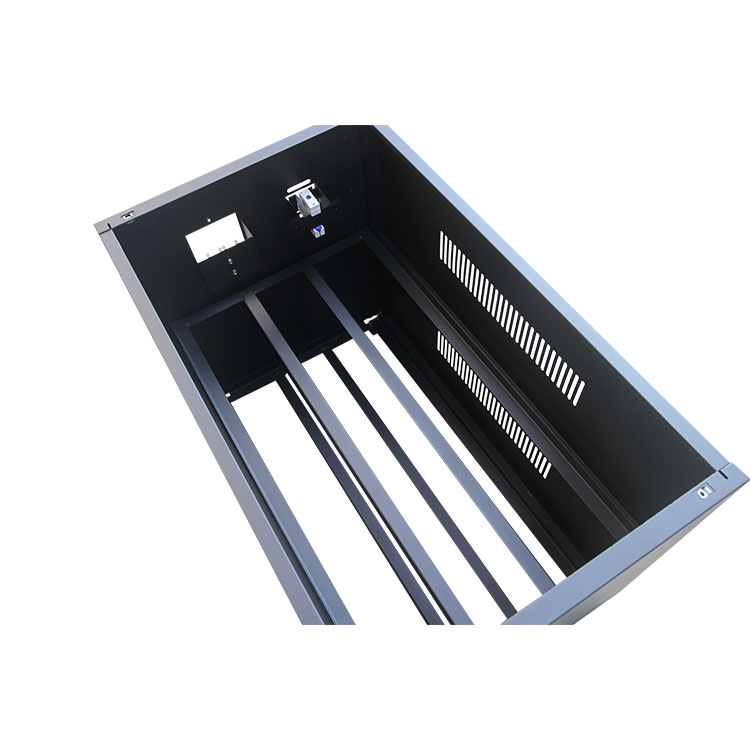

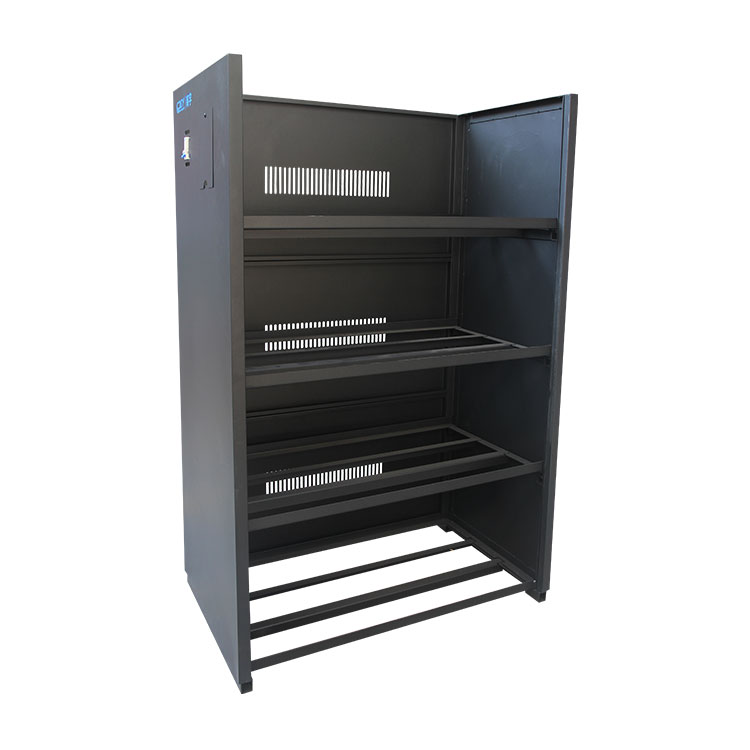

Removable side and front and rear panels for easy installation and maintenance
Top cable entry, high-density vents on the front and back for easy heat dissipation and optimal air circulation
Optional adjustable casters;
Optional fully welded frame structure made of heavy-duty steel, can be packed flat in cartons for easy transportation.
Acid-resistant powder coating using a five-stage immersion pre-treatment process.
Designed to accommodate most front-end batteries.
Not waterproof, mostly for indoor use, please keep away from rain/snow/water.
