SHANGYU POWER CHINA® durable In-Row Precision Cooling Air Conditioner is critical for mission-critical applications such as data centers. SHANGYU POWER CHINA is committed to helping customers more effectively manage their unique needs and changing industry requirements and offers a portfolio of Computer Room Air Handling (CRAH) and Computer Room Air Conditioning (CRAC) products. With industry-leading expertise and a broad range of solutions and services, SHANGYU POWER CHINA, as a China turnkey supplier, offers a wide range of cooling capabilities for mission-critical applications, from small technical rooms to the largest data centers, helping customers ensure mission-critical facilities are highly Reliable, flexible, efficient, sustainable and scalable integrated design to meet specific customer needs, ensuring uptime and performance.

SHANGYU POWER CHINA® In-Row Precision Cooling Air Conditioner

As the professional manufacturer, SHANGYU POWER CHINA® SP series durableIn-Row Precision Cooling Air Conditioner provide targeted cooling of nearby server racks in data center environments and are scalable to improve cooling and energy efficiency within the data center. SHANGYU POWER CHINA® SP series In-Row Precision Cooling Air Conditioner systems are available in 300mm and 600mm widths, with capacities from 12.5 kW to 50.4kW, air-cooled, independent row-level cooling units, suitable for IT network cabinets, computer and server room racks.

SHANGYU POWER CHINA® In-Row Precision Cooling Air Conditioner Parameter (Specification)

SP Series

Type

Single cold source

Indoor model

SP13A1C

SP25A1C

SP30B1C

SP35B1C

SP40B1C

SP45B1C

SP50B1C

outdoor model

SP13C

SP25C

SP30C

SP35C

SP40C

SP45C

SP50C

EER

2.6

2.8

3.05

3.03

3.02

2.7

Power Specifications

380VAC/50HZ

Max current

30A

20A

23A

26A

31A

36A

41A

Input breaker(suggestion)

40A/3P

32A/3P

50A/3P

63A/3P

Indoor unit cable (suggestion)

5*6mm2

5*10mm2

Outdoor unit cable (suggestion)

3*1mm2

3*1.5mm2

4*2.5mm2

Internal and external unit signal lines (suggestion)

No

cooling capacity（kW）

12.5

25

30.6

35.4

40.3

45.8

50.4

Sensible cooling capacity（kW）

sensible heat ratio

discharge airflow（m3/h）

3000

5000

6800

7800

9000

10000

10500

Return air volume（m3/h）

Heat exchange capacity(kw)

18

27

34

39

45

50

55

PTC electric heating power（kW）

Electrode humidification amount（kg/h）

Compressor

Compressor QTY.

Fixed/variable frequency

DC variable frequency

Compressor Type

Rotor compressor

Scroll compressor

Indoor fan

Fan QTY

Fan Type

EC centrifugal fan

Outdoor fan

Axial fan

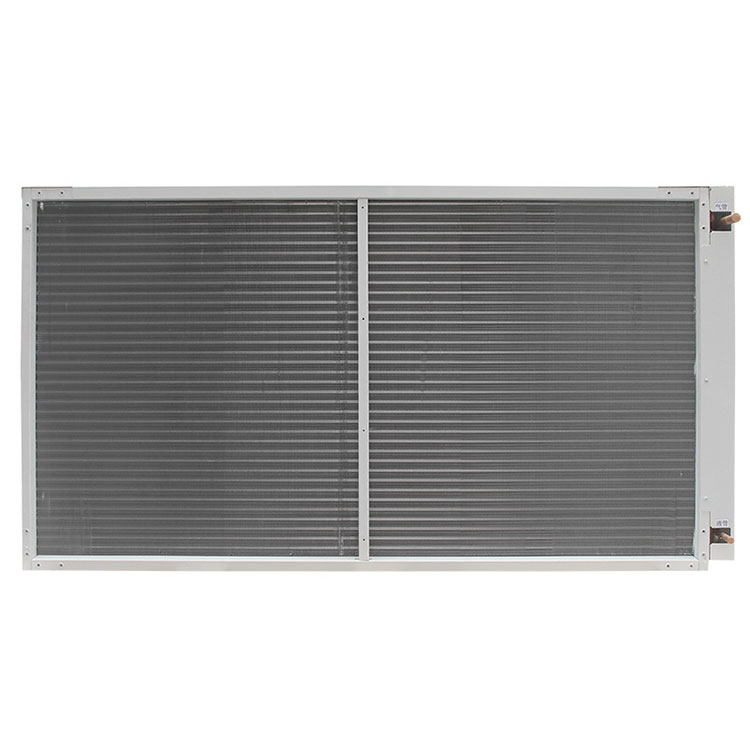

Evaporator

Large area "/" type evaporator

Thermostatic Expansion Valve

Electronicexpansion valve

Fliter

Fliter level

G4 level

Refrigerant

R410A

Factory precharge of indoor unit（kg）

No precharge at the factory

Factory precharge of Outdoor unit（kg）

Noise value（dB）

Indoor Unit

66

71

67

68

69

70

Outdoor Unit

61

64

65.5

Dimensions（mm）(W*D*H）

Indoor Unit(W*D*H）

300*1200*2000

600*1200*2000

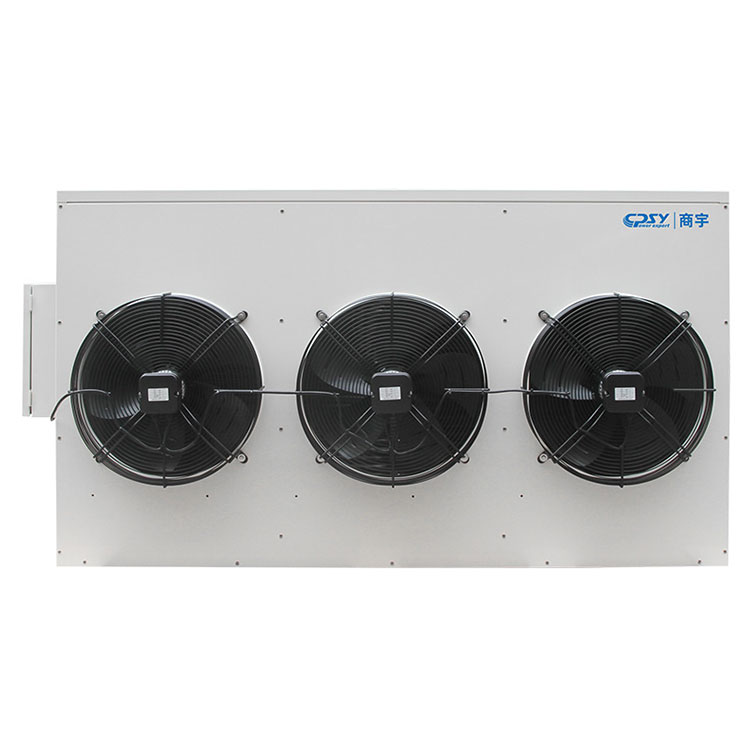

Outdoor Unit(W*D*H）

1200*400*730

1845*400*985

2245*400*1135

Outdoor unit (dimensions excluding wiring power box)

1100*400*730

1750*400*985

2150*400*1135

Weight（kg）

160

190

250

260

275

115

128

140

175

Size for takeover（mm）(suggestion)

Exhaust pipe

16（fan coil）

22

Liquid pipe

9.52（fan coil）

12.7（fan coil）

16

Water inlet pipe

G1/2"

Drain pipe

IDΦ19mm

Allowable length of takeover（m）

Equivalent length of internal and external machine pipes

≤30

Difference in installation position between indoor and outdoor units

The outdoor unit is higher than the indoor unit：≤20

The outdoor unit is lower than the indoor unit：≤5

Design usage conditions

Indoor ambient temperature is 37℃; relative humidity is 25%; outdoor ambient temperature is 35℃

Standard (functional) parts

Sight glass, high/low pressure protection switch, pressure sensor, 1 temperature and humidity probe, 1 temperature probe, filter pressure difference switch

Optional (functional) parts

1. Extension component (configured when the one-way pipeline length exceeds 30 meters, an oil trap needs to be added every 5 to 7.5 meters), with a maximum extension of 60m; 2. Low-temperature component (configured in areas where the outdoor temperature is lower than -15°C), after configuration Can reach -35℃

Features

1. 7-inch color touch screen; 2. Power-off memory, self-starting upon incoming call; 3. Group control networking; 4. Intelligent protection: power supply phase loss, over-voltage and under-voltage, reverse phase protection alarm, compressor high and low voltage protection alarm, machine room environment high/low temperature alarm; 5. Monitor and display the operating status of the indoor air blower: faults, fan speed, etc.; 6. Store 500 historical records; 7. Modular design, taking into account cabinet size, and quick layout;

SHANGYU POWER CHINA® In-Row Precision Cooling Air Conditioner Feature And Application

The SHANGYU POWER CHINA® SP series In-Row Precision Cooling Air Conditioner system direct scale design tightly integrates cooling with IT heat loads to prevent hot air recirculation and improve cooling predictability in pay-as-you-go environments. Intelligent controls proactively adjust fan speed and refrigerant flow to match IT heat loads to maximize efficiency and meet the dynamic demands of a server room or data center environment.

The SHANGYU POWER CHINA® SP series In-Row Precision Cooling Air Conditioner system provides a comprehensive range of related functions, including cooling, humidification, dehumidification, reheating, air filtration, condensation management, temperature and humidity control, alarm functions and data communications, and includes for capacity and airflow management Integrated controls. All components are easily accessible from the front and rear of the unit to assist with service and preventive maintenance and simplify cable and pipe routing from the top to the bottom of the unit.

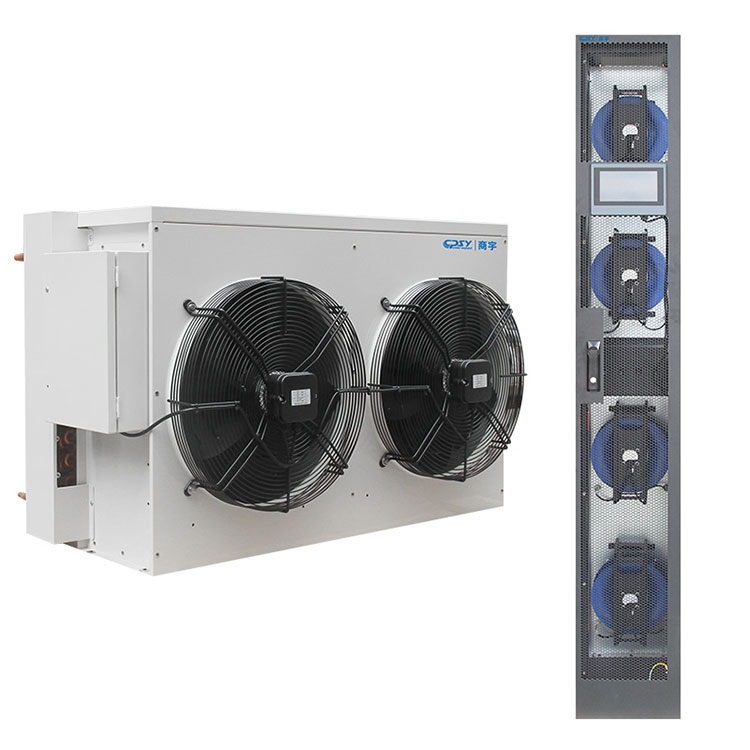

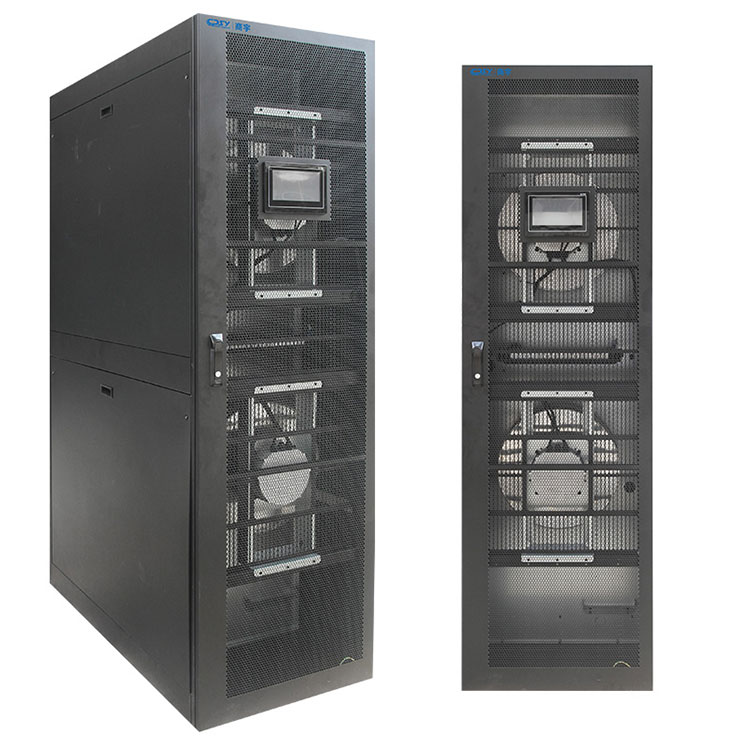

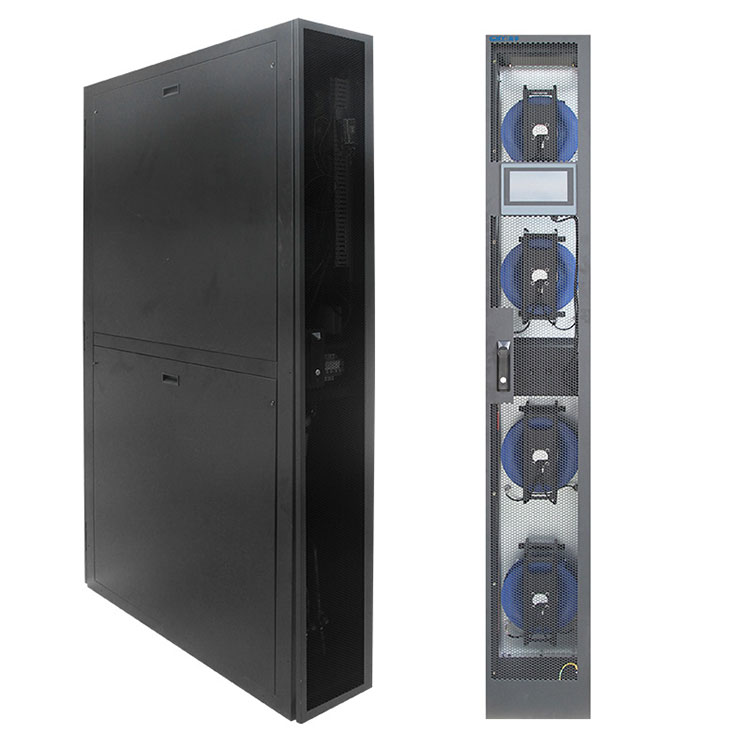

SHANGYU POWER CHINA® In-Row Precision Cooling Air Conditioner 12.5KW~50.4KW

Model No.:SP13A1C/SP13A1/SP25A1/SP25A1C/SP40B1

In-Row Precision Cooling Air Conditioner range:12.5KW~50.4KW

Features:

--Dynamically coordinate the cooling capacity/air volume output of the unit to achieve real-time matching with load changes, so that the unit operates in the best condition.

--The cooling system is compatible with multiple temperature sensors, monitors heat load changes and directly controls the supply air temperature, making it safe, reliable and energy-saving.

--Variable speed and hot-swappable fan redundancy design can reduce energy consumption during off-peak hours, and replacement of faulty fans will not affect air conditioning operation

--A-grade components make precision air conditioners more stable

--Fluorine pump uses natural cold source to save more than 50% energy

--Environmentally friendly design, using R410A refrigerant

--Tightly coupled design improves energy efficiency by 25% compared to traditional CRAC

--Filter filtration grade up to F5 with clogged filter switch

--Independent, row-based, zero-maintenance unit

--No need for expensive electricians or HVAC contractors, can be fully installed by IT staff

--Drain condensate through the exhaust system, no floor drain or sump required

--Supports 24/7 remote management via pre-installed WEB, Modbus and BACnet monitoring cards or WEBCARDX network interface

--User-friendly color touch screen allows full access to data and status information

--Configurable side and/or front airflow exhaust and maintenance mode capabilities

--PowerView real-time network capacity monitoring, easy to operate

--Remote rack temperature sensor

--High-efficiency scroll/rotary compressor with capacity adjustment function

--Adjustable modular baffle system

--Coil freeze protection with hot gas bypass to prevent freezing of remote probes

--1 year limited warranty

Applications:

Industrial environments, medical facilities, laboratory equipment, etc. are key equipment for power supply and protection.

Application

Servers.

Educational Institutes.

BFS

Healthcare Systems.

Telecommunication Equipments.

Small & Medium Data Centers.

CNC Machines.

Pharmaceutical Appliances.

X-ray Machines.

Industrial Facilities.

SHANGYU POWER CHINA® In-Row Precision Cooling Air Conditioner Details

SHANGYU POWER CHINA® SP series In-Row Precision Cooling Air Conditioner adopt advanced cooling technology, are compact in size, and provide real-time temperature monitoring. They are designed to provide humidity control and efficient and precise cooling for rack-level installations in server rooms and data centers. Achieving high energy efficiency through capacity-regulated compressor, electronic expansion valve and variable speed EC fan and ensuring faster load dissipation.

When compare with peers, SHANGYU POWER CHINA® In-Row Precision Cooling Air Conditioner advantages as below:

1. Get efficient, reliable cooling in a 42U rack form factor

To help prevent equipment downtime, malfunctions and failures caused by overheating and temperature fluctuations, the SHANGYU POWER CHINA® SP Series In-Row Precision Cooling Air Conditioners offer a close-coupled cooling solution in a 42U rack form factor that reduces energy consumption, lowers operating costs and simplifies installation.

2. High cooling efficiency and energy saving features designed to save you money: Inverter compressor and EC fan technology automatically adjust cooling output to match heat load and save energy during off-peak hours, thereby reducing overall energy costs and extending the life of the equipment being cooled service life. Reconfigure your cooling needs as equipment needs change, saving you the cost of raised floors or overbuilding/overprovisioning CRAC units.

3. Completely independent, simplified and lower-cost installation and zero-maintenance design, you and IT staff can install it yourself, with top or bottom wiring according to your needs to support front or side exhaust.

8. Close-coupled design captures heat from the source, improving energy efficiency by 25% compared to traditional perimeter CRACs.

4. Slim air conditioning system saves space while providing primary precision cooling: Typical CRAC/CRHC units occupy too much space, and this SHANGYU POWER CHINA® SP series In-Row Precision Cooling Air Conditioner system is ideal for small and medium-sized data centers, IT rooms or other edges. Ideal for cooling in any location, the cabinet is only 300mm wide and can easily be optimally positioned within a row for precise, close-coupled cooling.

5. Advanced network monitoring gives you 24/7 remote access to manage temperatures, receive alerts, view logs and control settings for integration with management software platforms such as DCIM. Additionally, the ability to configure settings and monitor alerts off-site can improve your bottom line.

6. One-year warranty and environmentally friendly design

SHANGYU POWER CHINA® SP series In-Row Precision Cooling Air Conditioners come with a one-year warranty, are manufactured to strict RoHS specifications, and use environmentally friendly R410a refrigerant, reflecting your commitment to environmental responsibility.

7. Using DX technology to deliver cool air to the load, EC fans and variable speed compressors provide variable airflow and constant temperature based on indoor conditions.

9. Color touch screen makes it easy to operate, monitor and access system configuration and status information.

10. Built-in controller detects and manages data center temperature, automatically adjusts cooling levels and supports various control modes

11. Intelligent temperature control and variable speed technology enable precise air flow and temperature regulation to closely match specific load requirements.
