SHANGYU POWER CHINA® edge data center solutions, including room-level micro-module data center solutions and outdoor container data center solutions, are designed to meet the growing needs for edge computing and ensure service continuity for key applications. SHANGYU POWER CHINA® outdoor container data centers solution can be used in various industries and scenarios and are easy to maintain and deploy. The modular structure design also allows capacity expansion, making it the best solution for outdoor small data centers and edge data centers.

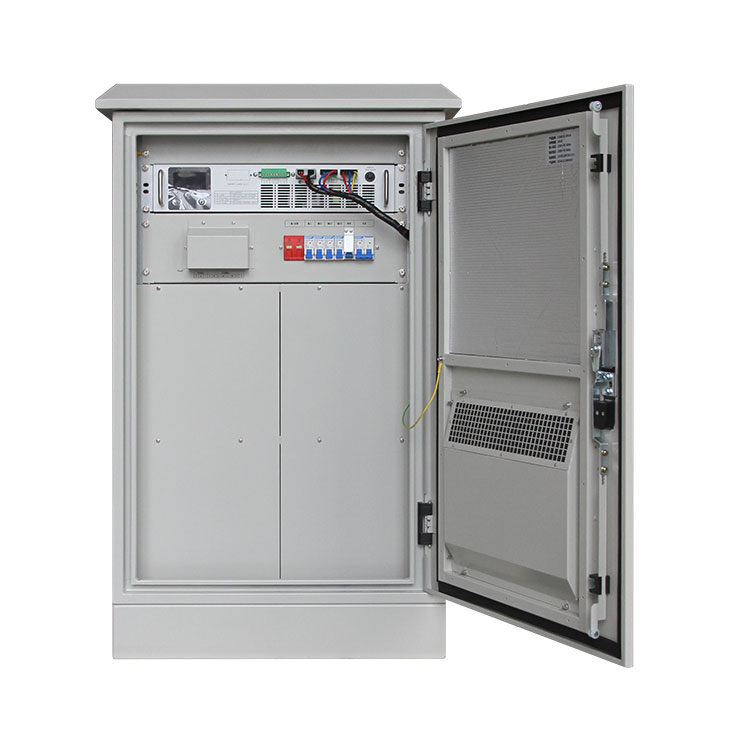

SHANGYU POWER CHINA® Outdoor Container Data Center Solution

The SHANGYU POWER CHINA® durable outdoor container data center solution is a performance-optimized data center (POD) that integrates power infrastructure, refrigeration and IT power distribution and is flexibly delivered. It can be placed on rooftops, mines, parking lots and other places, and is widely used. as a data center. SHANGYU POWER CHINA® is a leading manufacturer, providing a wide range of outdoor container data center solutions to reduce your construction costs. The SHANGYU POWER CHINA® outdoor container data center solution is an advanced outdoor prefabricated integrated data center facility solution, including server racks, air conditioners, power supplies, disaster prevention, security, monitoring and other systems. The solution provides reliable, stable and green IT equipment Operating environment, the solution is suitable for multiple industries and scenarios, meeting the energy saving and rapid deployment requirements of data centers.

SHANGYU POWER CHINA® Outdoor Container Data Center Solution Parameter (Specification)

Equipment system

Item

Parameter

System

Dimensions

1200mm wide closed cold/hot aisle double-row cabinet recommended maximum size: 1400(L)*3600(W)*2300(H)mm, height of 2600mm after the skylight is turned over.

NO.single-module cabinets

≤48

Cabinet power consumption

Design power consumption 5~8 KW, maximum support 14KW

Module power consumption

≤180KW

Working environment

-30℃~45℃

Altitude

0~1000m (more than 1000m need derating)

Installation method

Floor installation, can be installed with or without anti-static floor

Cabinet

600(W)*1200(D)*2000(H)mm, please contact Shangyu factory for other dimensions

Available space

42U

Vapor rate

80%

Static load

1800KG

Seismic rating

Magnitude 9 earthquake

Environmental certification

RoHS

IP class

IP20

Closed Passage

Skylight

tilting skylight, flat roof skylight, fixed skylight, width: 300(600)mm, please contact Shangyu factory for other dimensions

End door

Manual reversing door, automatic translation door

Wireway

Mountain type sheet metal wiring trough

Base

Cabinet base,Channel base (installation of anti-static floor)

Floor

Calcium sulfate anti-static floor

Power distribution

UPS rated input

380VAC/400VAC/415VAC (3-phase 5-wire), 50/60Hz, PF=0.99

UPS rated power

80~300kVA

UPS power module

20kVA/30kVA

Battery

38AH~250AH (12V) valve-regulated lead-acid battery, please contact Shangyu factory for other specifications

Distribution Cabinet

Input: 100A~630A; 380VAC/400VAC/415VAC (3-phase 5-wire); 50/60Hz

Output: Multi-channel 10~63A/3P (1P) optional, please contact Shangyu factory for specific configuration

PDU

32A input, 8~24 bit C13 (C19) national standard socket optional, optional lightning protection components and intelligent intelligent communication components, etc.

Detection function

Main and shunt switch status, voltage, current, power factor, harmonics, power consumption, etc.

Cooling system

Air Conditioner Dimensions

300(W)*1200(D)*2000(H)mm

600(W)*1200(D)*2000(H)mm

Cooling capacity

Inter-row cooling: 13~40KW

Room-level cooling: 8~102KW

Input

3-phase 380VAC, 50Hz

Air supply mode

Horizontal air supply, upward air supply, and downward air supply

Isolation method

Closed cold/hot aisle

surveillance system

Environmental monitoring

Temperature and humidity, smoke detection, smart access control, high-definition camera, water leakage,four-color ambient light

Monitoring

Power supply, battery, power distribution, air conditioner

SHANGYU POWER CHINA® Outdoor Container Data Center Solution Feature And Application

SHANGYU POWER CHINA® Outdoor Container Data Center Solution

Load capacity: static load 1000KG

Protection level: IP20

Standards: ANSI/EIA RS-310-D, IEC297-2, DIN41494:PART1, DIN41494:PART7, GB/T3047.2-92, ETSI

Certification: CE, RoHS, UL

Features:

Free up space: Compact structure, high space utilization, and higher density per rack than traditional data facilities.

Quick installation: SHANGYU POWER CHINA data center containers are built and tested in the factory. UPS, power distribution, battery, refrigeration, rack, fire protection and other subsystems are highly integrated and can be constructed quickly. It can also be placed outdoors and all that needs to be provided is power and connections.

Rapid deployment: The construction of traditional data center solutions takes 18-24 months, while the 20-foot or 40-foot container data center solutions have flexible scalability and can be deployed in just a few weeks or months, which can reduce 80 % deployment time to meet rapidly growing IT needs.

Faster scalability: Adopting a fully modular design concept, it is highly flexible and easier to expand or reconfigure than traditional data centers.

Improve energy efficiency: Using hot/cold aisle closed architecture and efficient inter-row cooling, cooling energy consumption can reach up to 40% of the total data center energy consumption, eliminating hot spots.

Reduced downtime: Using lithium-ion battery solutions can reduce downtime because ion batteries offer long cycle life, small size, and good high-temperature performance.

Save time and money: Containerized data center solutions integrate racks, power, cooling, security and monitoring systems within shipping containers that can be transported to remote sites and put into use as quickly as possible.

It has multi-level automatic alarm function: providing voice alarm, telephone voice alarm, network video monitoring, etc.

High reliability: Pre-built, pre-tested, fully configured architecture with high portability for edge computing applications. Supporting power redundancy, continuous cooling and lithium-ion battery design improves the reliability of IT equipment. Using high-efficiency power modules, the UPS system efficiency is as high as 96.7%.

Modular design: Adopting modular units and independent closed design concepts, each unit can be installed and disassembled independently, and can be closely connected with adjacent units for easy disassembly and assembly, providing scalable solutions as needs change or grow. ; Modular structure, modular assembly according to the width of the cabinet, interchangeable installation, and also suitable for maintenance and management of other equipment in the channel.

Good sealing: All unit modules in the hot and cold aisle system are precisely connected, and each component is sealed with a top strip or sponge strip with good sealing performance, which not only maintains the appearance but also prevents the leakage of cold air in the cold aisle.

Intelligent fire control: Compatible with the fire protection system through the automatic action of the top panel and air conditioner. Once a fire alarm signal occurs in the room, the top panel will automatically open and fire extinguishing gas can enter the aisle.

Customization: Customized solutions for your special requirements that can be quickly deployed in your project.

Highly integrated: All subsystems like UPS, power distribution, batteries, cooling, racks, etc. are well integrated.

Energy Efficient: Continuously variable fan speed control allows for high energy savings.

Low PUE: Hot aisle containment further improves cooling efficiency. Even at 30% light load, the UPS can produce up to 95% efficiency.

Safe and reliable

● Fully enclosed design, compliant with IP55, suitable for various working conditions.

● Redundant design of key equipment to ensure stable operation of the system.

● It has multi-level automatic alarm function, providing voice alarm, telephone voice alarm, network video monitoring, etc.

● Built-in automatic fire alarm and fire extinguishing device to prevent and control fires in time.

Rapid deployment

● Integrate major subsystems such as power distribution, refrigeration systems, cabinets, sealed passages, monitoring, and fire protection. Factory pre-integration and pre-debugging shorten delivery time.

● All components comply with domestic and foreign technical standards, support plug-and-play, and are easy to install. And it complies with international transportation regulations and can be shipped to all over the world.

● Fully enclosed structure, sealed hot and cold channels, improves cooling utilization, reduces consumption and saves energy.

● Using high-efficiency power modules, the UPS system efficiency is as high as 96.7%.

● Independently developed row-type precision air conditioners, dual EC fans, electronic expansion valves and variable frequency drives are more energy-saving.

Intelligent management

● Centralized monitoring system monitors operating status, mains power, ambient temperature, etc.

● Supports multiple alarm methods, including sound and light alarm, text message, phone call, email, etc.

● Use a remote monitoring platform to achieve unattended operation and minimize operation and maintenance costs.

● 20-foot or 40-foot containerized data center solutions that reduce deployment time by 80% and can be placed outdoors, requiring only power and connectivity.

Application:

cloud

telecommunications

edge computing

content delivery network

Internet data center

Carrier data center

Other enterprise data centers

Data centers for various industries (finance, government, energy, medical, etc.)

SHANGYU POWER CHINA® Outdoor Container Data Center Solution Details

When compare with peers, SHANGYU POWER CHINA® Outdoor Container Data Center Solution advantages as below:

Table 1 Comparison between container data center and traditional data center

Traditional data center solution

Outdoor container Data Center solution

Safety

Very high

Lower

Operation and maintenance services

Easy

More difficult

Popularity scope

Widely

Very small

Customer acceptance

High

Low

Installation and maintenance

Debugging takes a long time and is inconvenient

Scalability

It is difficult to expand when the business grows rapidly

Refrigeration efficiency

Simple installation, plug and play (water, electricity, network)

Construction delivery time

Modular expansion is very flexible

Server installation density

It is difficult to separate the hot aisles, the air supply is fully enclosed, and the hot and cold aisles are separated, the air supply distance is long and the wind distance is short

Energy Efficiency Index (PUE)

1~2 years

Return on Investment (RIO)

Low, 3KW/Rack

Capital expenditure (TCo)

Higher(2~3)

Table 2 Analysis of the scale of world container data centers from 2008 to 2010

Unit: billion US dollars

2008

2009

2010

Market size

1.6

3.1

9.2

growth rate

93.8%

196.8%

Air-cooled module cooling solution: suitable for all types of small and medium-sized data centers, such as operator data centers, data centers in various industries (finance, government, energy, medical, etc.) and other enterprise-level data centers.

Chilled water module cooling solution: suitable for all types of large and medium-sized data centers equipped with chilled water hosts, such as Internet data centers, operator data centers, data centers in various industries (finance, government, energy, medical, etc.) and other enterprise-level data center.

The black cold-rolled steel plate frame painting is consistent with the style of the cabinet and also coordinates with the computer room.

Automatic door structure + access control system, which can be opened from the inside out in case of emergency.

The monitoring system has the characteristics of simple configuration, strong accessibility and high reliability.

Aisle containment does not cause energy loss due to cold/hot air mixing.

Real-time PUE measurement, monitoring, alerts and notifications for peace of mind.

Local and remote monitoring protocols facilitate intelligent management control and visualization.

Easily implement purchase, installation and service processes in real time with predefined designs.

Video surveillance has real-time viewing and backup recording functions.
