You can rest assured to buy Single-Rack Micro Data Center from our factory.With the rise of big data and cloud computing, as well as the acceleration of my country's informatization construction process and the rapid development of 5G, edge computing and other fields, the demand for small and micro data centers is also quietly growing. Many companies have realized that high-reliability, high-availability smart single-cabinet IT rooms (micro data centers) are the future trend. SHANGYU POWER CHINA has launched a new Single-Rack Micro Data Center, which perfectly matches the business needs of small and micro data centers.

SHANGYU POWER CHINA® Single-Rack Micro Data Center

Durable Single-rack micro data centers are turnkey data centers that can be used for applications with up to 10 racks and a total load of less than 40kVA. Usually, we provide solutions based on our customers' requirements. There are usually three options: single cabinet series, double rack series, and multi-cabinet series. SHANGYU POWER CHINA is considered the only manufacturer that can provide all subsystems, including UPS, cooling, batteries, cabinets, power distribution and monitoring systems.

The single-rack micro data center is an alternative solution for the new generation of small IT computer rooms. Fire protection, dynamic environmental monitoring systems, power supply, power distribution systems, batteries, cooling systems, cabinets and containment are fully integrated, and hot aisles and cold aisles are fully integrated. Edge data center solutions are more than just small data centers. In the future, edge data centers will be the first entry point for data.

SHANGYU POWER CHINA® Single-Rack Micro Data Center Parameter (Specification)

Series

Standard configuration

No.

R1C104RU031

R2C108RU061

R3C112RU101

R4C112RU101

R5C112RU201

R6C212RU202

R7C212RU202

R8C202RU402

Power distribution

UPS

3KVA

6kV

10KVA

20KVA

20KVA *2

40KVA *2

PF

0.8

0.9

Input

220VAC

380VAC/ 220VAC

380VAC

Altitude

2U

3U

6U

4U

Lightning protection

Class C lightning protection

Cabinet

Quantity

2-3

3-5

3-6

4-8

Available space

42U*cabinet quantity

PDU

with 1 pcs for each cabinet

PDU form

Input: 32A industrial connector; output: 12 bit 10A GB jack, 4 bit 16A GB jack; including lightning protection module

Closed channel

Cold, hot channel is fully enclosed

Emergency fan

Fan-type emergency ventilation system, linkage with the moving ring control, automatic start and stop

IT cabinet capacity

providing 42U of available space

Dimension

600 * 1200 * 2000mm

Cooling

Air conditioning type

Rack

Refrigerating output

4KW

8KW

12KW

12KW*2

Sensible heat ratio

3:01

system

DC frequency conversion + infinite speed regulation centrifugal EC fan

Monitor

Monitoring quantity

Power distribution, UPS, air conditioning, temperature and humidity, smoke sensation, water leakage, door magnetic

function

Data collection and storage, alarm management, energy consumption analysis, remote access, acoustic and optical alarm (optional), SMS alarm (optional),gating lighting (optional),atmosphere light (optional)

Display

A 10-inch touch screen

Battery

Type

VRLA battery

8pcs

16pcs

Standard 384VDC (384V/408/432/456/480VDC adjustable

Backup time

Can be replaced with high-capacity batteries or increase the number of batteries

SHANGYU POWER CHINA® single-rack micro data center is a new generation, highly integrated, one-stop modular data center solution that provides secure equipment operation within the rack and supports the development and standardization of rack-fit micro data centers. It uses a rack as the data center carrier, has the characteristics of plug-and-play, strong independence, and strong overall strength. It can save network costs to a large extent, and fully integrates UPS, refrigeration, power distribution, intelligent monitoring, lightning protection, All subsystems such as fire protection and security systems (optional), cabling, airflow management, etc. are very suitable for edge computing applications to reduce latency and improve network security. 19-inch cabinet, compliant with industry standards (EIA-310-D) for any hardware equipment (servers, voice, data and network equipment), which enables small data centers to operate efficiently while providing a normal and stable operating environment for critical equipment such as servers .

SHANGYU POWER CHINA® Single-Rack Micro Data Center Feature And Application

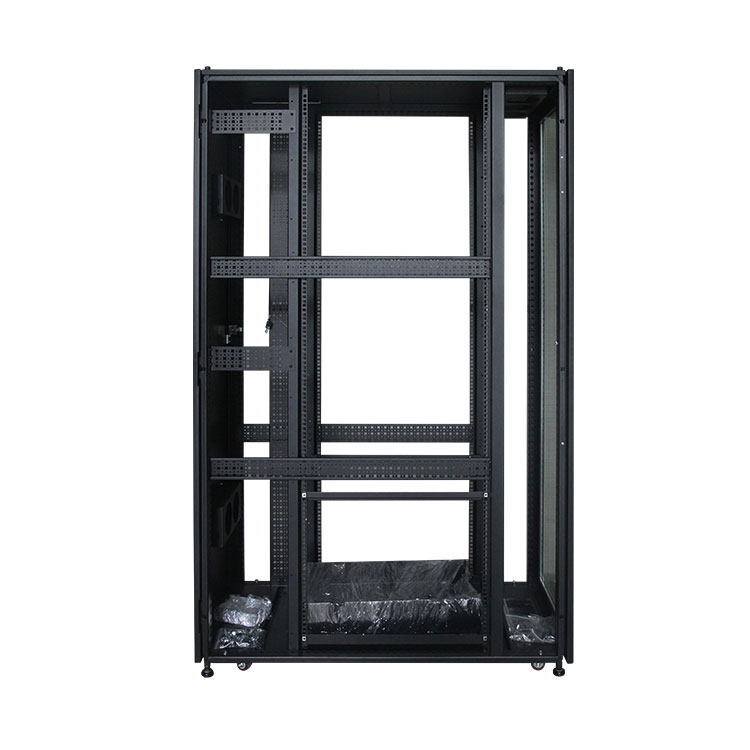

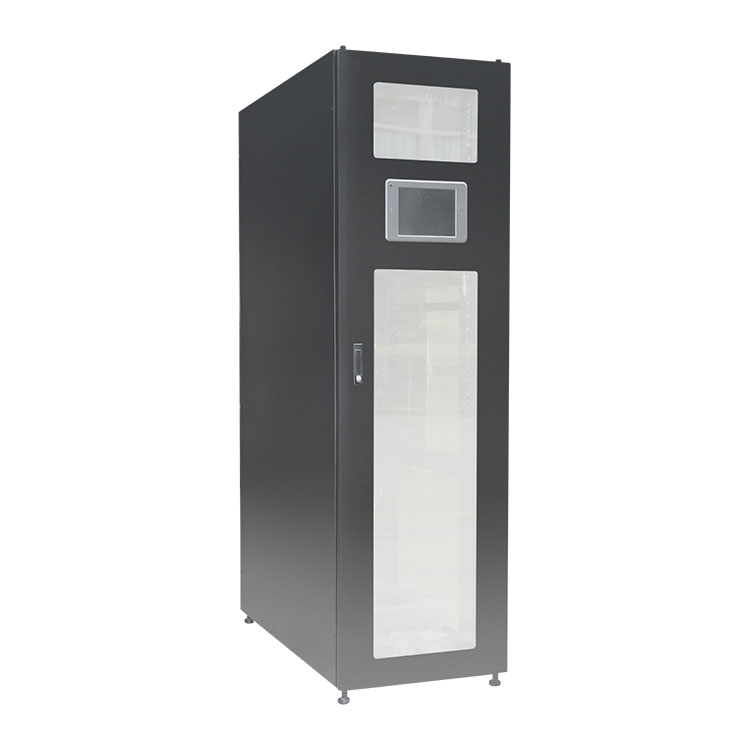

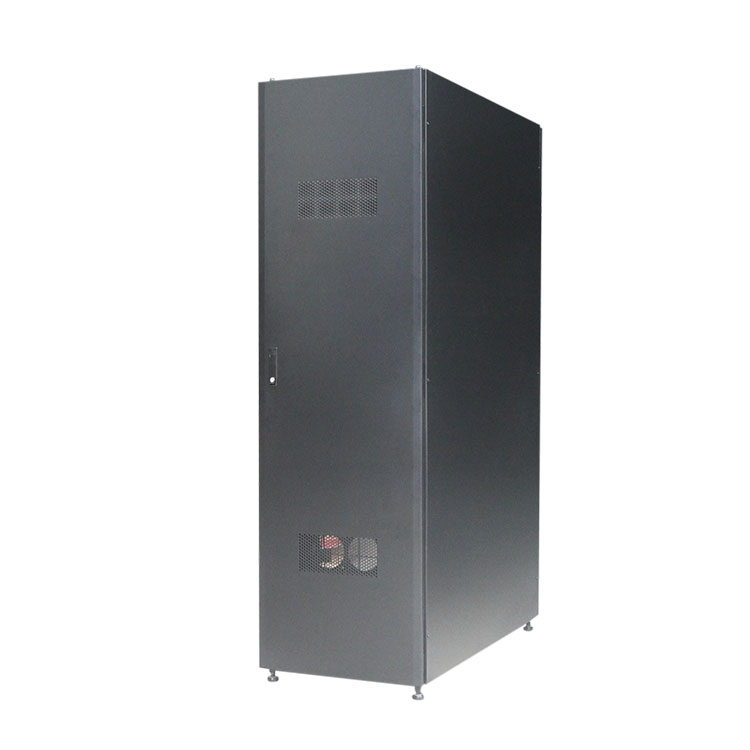

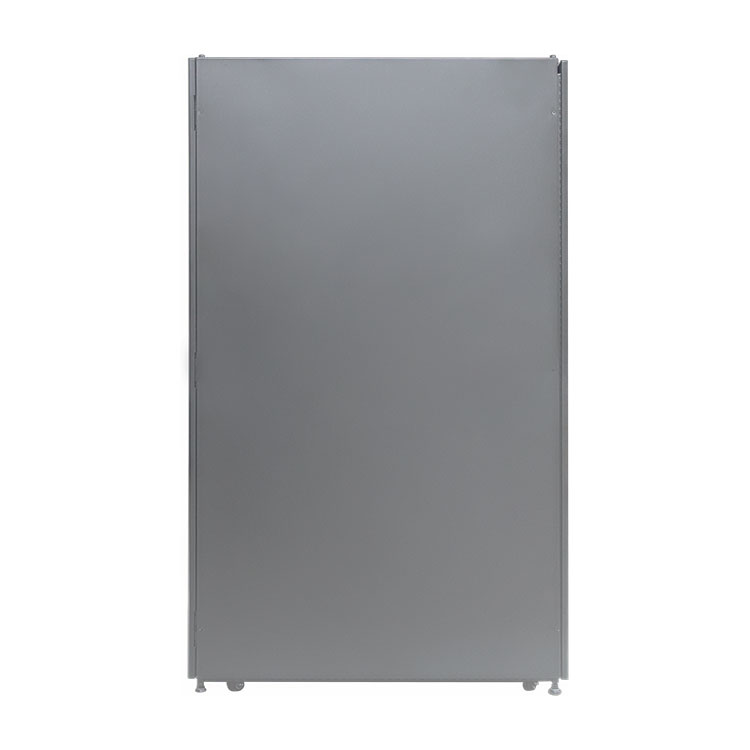

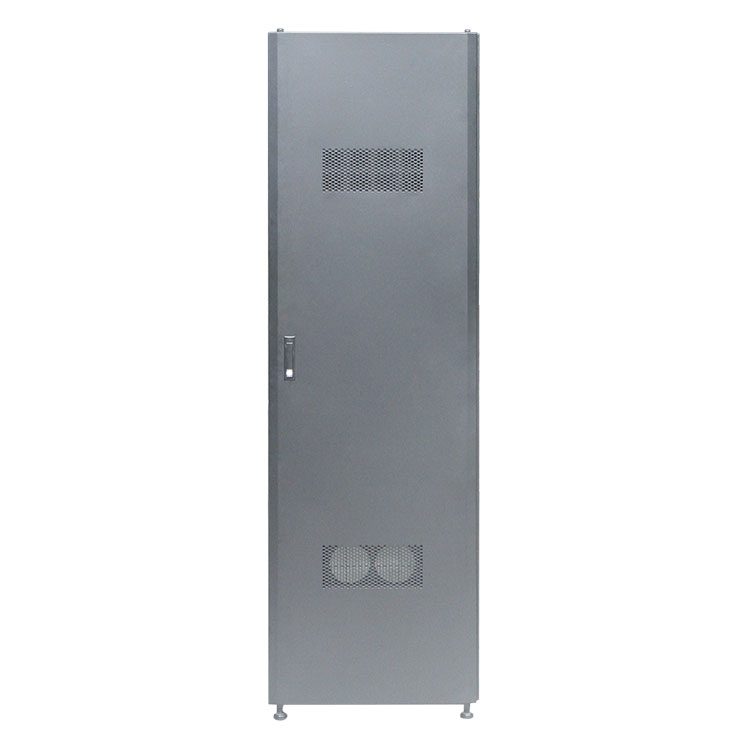

SHANGYU POWER CHINA® Single-Rack Micro Data Center

Load capacity: static load 1000KG

Protection level: IP20

Standards: ANSI/EIA RS-310-D, IEC297-2, DIN41494:PART1, DIN41494:PART7, GB/T3047.2-92, ETSI

Certification: CE, RoHS, UL

Single-Rack Micro Data Center Features:

1. Rack installation: plug and play, strong independence, strong overall strength, saving network costs

2. Rapid deployment: modular components, standardized interfaces, factory pre-installation, and quick on-site installation

3. High cost performance: low design cost, low engineering cost and low maintenance cost

4. One-stop service: overall solution including key subsystem equipment, installation and after-sales service

5. High safety: Optional unique pop-up door components and rack-mounted auxiliary fire protection components improve the operation and maintenance safety of the unit;

6. High efficiency and energy saving: modular UPS, precision cooling, closed channels, hot and cold channel isolation, PUE reduced to 1.3

7. The fully enclosed cabinet is 42U, taking up very little space, and the available internal space is up to 30U.

8. N+X redundant group control, backup power time customization (15-120m)

Single-Rack Micro Data Center Application scope:

Micro data center with IT load below 40kVA.

IT applications for regional or small business environments.

Suitable for distributed IT/edge computing

Deploy IoT devices and/or smart facilities running artificial intelligence (AI), augmented reality (AR), virtual reality (VR), automation, and more.

Serves as a compute node for remote offices and branch offices

As a ground dealer

For faster setup in remote areas/branch offices.

Also suitable for small data centers or server rooms required by government or educational institutions, retail and healthcare branch offices.

SHANGYU POWER CHINA® Single-Rack Micro Data Center Details

When compare with peers, SHANGYU POWER CHINA® Single-Rack Micro Data Center advantages as below:

--Integration

Integrated products: Data center infrastructure products are deeply integrated, including multiple subsystems such as UPS, power distribution, refrigeration, cabinets, monitoring, and fire protection. Through the monitoring system, all subsystems are coordinated and managed to create integrated products and simplify Design, Procurement and Construction Process!

Rapid deployment: suitable for small and medium-sized data center applications such as government, education, finance or small and medium-sized enterprises. It has strong flexibility, short construction period and can be expanded at any time without excessive investment.

Availability levels can be adjusted at any time: Adjust the system's availability level at any stage, including design, installation or operation. The power supply system and cooling system do not need to be redesigned.

---High reliability and high availability

Supports the highest A-level availability level: meets the three availability levels of national standard GB50174 A, B, and C, and can provide N, N+1 or 2N configurations according to customer needs. Meets the highest A-level level.

Highly reliable emergency cooling: Whenever over-temperature and other messages are detected, the mechanical structure will activate the cooling system, U-level precise temperature control, and the temperature difference is <1°C. Provide a highly reliable power supply system that does not require a UPS and does not occupy UPS resources.

Distributed control improves reliability: Distributed control systems are used for air conditioning, UPS, environment and smart racks (temperature and humidity, lighting, PDU, door sensors, etc.). Even if one of the controllers fails, it will not affect the normal display and upload of other device information.

Simplified operation and maintenance: The dynamic environment monitoring system monitors comprehensive product operation data, provides alarms and various reports, and realizes unattended, remote operation and maintenance; it can also be integrated into the upper-level management system for centralized management: the cabinet-type structure with transport casters allows the data center to It can be moved and relocated, which is extremely convenient; one-stop after-sales service can solve all problems with one phone call.

---Save on total cost of ownership (TCO)

Area savings: Integrated design saves more than 40% of floor space compared with traditional construction models;

Save supporting investment: Fully enclosed design, can be installed in various environments (machine room, utility room, office, etc.), no special investment in the construction of machine room and supporting facilities is required:

Save construction time: As an integrated product, on-site installation can be completed within one day. When deployed on a large scale, the construction cycle is greatly shortened;

High-efficiency and energy-saving design: high-frequency UPS, the overall efficiency reaches 92%, even at half load, it is as high as over 96%. Cabinet-level refrigeration + fully enclosed hot and cold aisle refrigeration saves more than 30% energy than traditional refrigeration methods, and the PUE of the whole machine can be as low as 1.25

---Intelligent management

Data center environment and security information can be interconnected: data center temperature and humidity, smoke detection, data center access control, data center IP cameras and other signals can be connected to the standard management system. The system is plug-and-play and requires no redevelopment.

Whatsapp alarm and mobile APP: Although SMS alarm requires additional charges, using Whatsapp alarm not only reduces costs, but is also more suitable for current trends. The mobile APP allows maintenance and management personnel to understand system operation information anytime and anywhere.

Built-in access control in the system cabinet: Prevent non-professionals from misusing equipment such as UPS or cooling, which may cause the system to crash. Both the front and rear doors of the system cabinet are equipped with access control systems. Only authorized personnel can enter the password on the touch screen to open the door. If the access control system fails, the door can be opened manually with a key.
