A Professional Manufacturer of 208V Low voltage UPS SHANGYU POWER CHINA® is a professional manufacturer of uninterruptible power supplies. We are located in Shenzhen and have a registered capital of $2.3 million and a production area of 25,000 square meters. We have our own R&D team with more than 30 R&D engineers with more than 20 patents, and put 15% sales revenue each year to R&D research.With strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates.Our aim is continuously to offer our customer stable and reliable, clean and high-efficiency power.welcome to inquiry.

You can rest assured to buy 208V Low voltage UPS from our factory. This SHANGYU POWER CHINA® 6KVA LCD Single Phase Low frequency ups is the latest invention of high-quality ups products, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty， . The SHANGYU POWER CHINA® 6KVA LCD Single Phase Low frequency ups is made of metal+ PCBA, which has been designed to meet most demanding power requirements, being easy to install and maintain. It combines latest high energy efficiency technology and high power density technology，achieving small size, stable performance and price competitive for UPS products.

SHANGYU POWER CHINA® GP11 series Single Phase Low frequency ups Parameter (Specification)

Model

HP3310H

HP3315H

HP3320H

HP3330H

HP3340H

HP3360H

HP3380H

HP33100H

HP33120H

HP33160H

HP33200H

Capacity

10KVA/9KW

15KVA/13.5KW

20KVA/18KW

30KVA/27KW

40KVA/36KW

60KVA/54KW

80KVA/72KW

100KVA/90KW

120KVA/108KW

160KVA/144KW

200KVA/180KW

I/O mode

3/3 phase

Work mode

True double conversion online ups

Installation type

Tower

INPUT

Voltage

380/400/415VAC

Voltage Range

Full load: phase voltage 190-276v line voltage 330-478v (-15%, +20%), half load: phase voltage 116-276/line voltage 201-478 (-50%, +20%)

Full load: phase voltage 190-330 line voltage 276-478V (-15%, +20%), 116/201-276/478V (-50%, +20%) at 50% load

Frequency Range

40~72Hz

Power Factor

≥0.99

Breaker

Standard (in-built)

Optional （external distribution cabinet（Input, output, maintenance bypass in one））

Breaker Capacity

40A/3P

63A/3P

100A/3P

125A/3P

150A/3P

250A/3P

400A/3P

OUTPUT

380/400/415VAC：≤±1%

50/60Hz±1%

0.9

Transfer Time

0ms

Overload

100%≤load<110, 60mins, 110%≤load≤125%,10mins, 125%load≤150%, 1mins, load≥150%, transfer to bypass immediately after 500 ms

100%≤load≤105%, long-term , 106%≤load≤125%, 10mins, 125%load≤150%, 1min, load≥150%, transfer to bypass immediately after 150ms

160A/3P

BATTERY

Battery Type

VALR battery

Battery Voltage

384VDC（384V~480V adjustable），Standard 32pcs（32/34/36/38/40pcs adjustable）

Standard 480V（432V/456V/480 adjustable），40pcs（36/38/40/pcs adjustable）

Charging Current

3.5（5.3AMAX）

4A（8AMAX）

5A(10.6AMAX)

6A(16AMAX)

8A(24AMAX)

10A （40AMAX）

20A（80AMAX）

Charging Current adjustable

Support

No

Cold Start

No support

No battery power-on function

STANDARDS

Efficiency

95%

ECO mode

98%

Safety

EN 62040-1

EMC

EN 62040-2

Certificate

TLC/CECP/CE/RoHS

IP

IP20

Function

EPO

ECO

Bypass

Bypass breaker

3P/40A

3P/63A

3P/125A

3P/160A

Parallel NO.

4pcs

Parallel shared battery pack

Communication

Control Panel

LCD+LED display

Communication port

Standard RS232, optional SNMP card, AS400 relay card

SNMP Serial NO.

SMP-00204-00

PHYSICAL

W*D*H

500*700*1020(mm)

600*800*1875(mm)

600*830*1875

Net Weight（KG）

75

88

96

202

245

311

457

Noise Level(less1m)

＜55dB

＜62dB

＜65dB

＜70dB

ENVIRONMENT

Operation temperature

Recommended temperature UPS：0-40℃；Battery：20-25℃

Operation Humidity

5%-95%，No condensation

Storage temperature

-15-55℃

Storage relative humidity

Altitude

<1000m

SHANGYU POWER CHINA® GP11 series 6KVA Single Phase Low frequency ups Feature And Application

SHANGYU POWER CHINA® GP11 series 6KVA Single Phase Low frequency ups 1-40KVA ups

Model No.:GP1101K/GP1102K/GP1103K/GP1106K/GP1110K/GP1115K/

GP1120K/GP1130K/GP1140K

UPS power range: 1KVA~40KVA

Features:

--Standard output isolation transformer.Optional input isolation transformer

-PM2.1 technology insect proof waterproof, noise and dustproof

-Support 3 parallel functions,Optional N+X parallel redundancy

-Adjustable charging current,such as 8A for long-run models

--Excellent industrial environmental protection performance

-True double conversion DSP technology, high reliability

-Eco mode operation for energy saving(ECO)

-Output adjustable 200/208/220/230/240VAC

-Dust gauze Level between IP20-IP51

-Emergency power off function(EPO)

-Generator compatible

Application:

Industrial environments, medical facilities, laboratory equipment, etc. are key equipment for power supply and protection.

Application

Servers.

Educational Institutes.

BFS

Healthcare Systems.

Telecommunication Equipments.

Small & Medium Data Centers.

CNC Machines.

Pharmaceutical Appliances.

X-ray Machines.

Industrial Facilities.

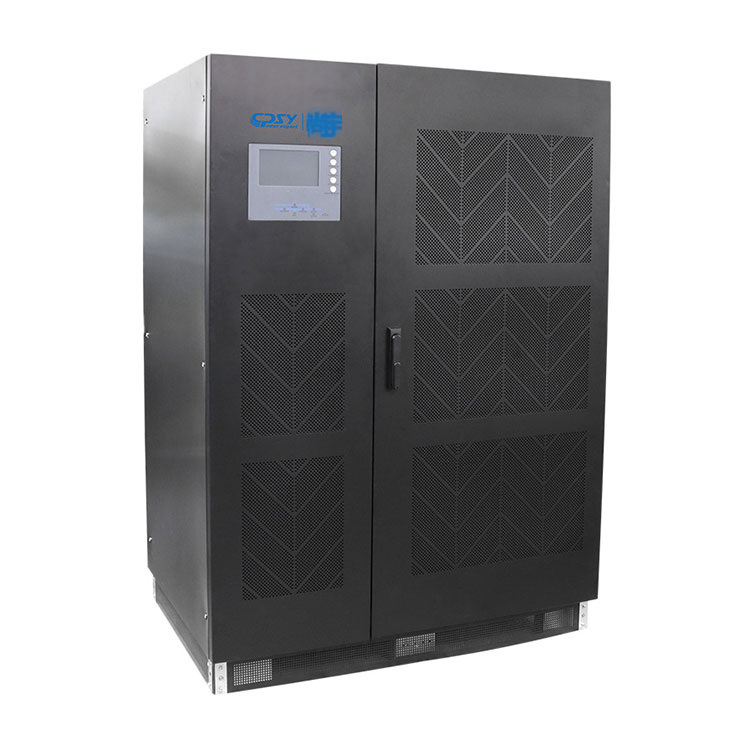

SHANGYU POWER CHINA® 500KVA LCD 3/3 Phase industrial ups Details

When compare with peers, SHANGYU POWER CHINA® 3/3 Phase industrial ups advantages as below:

1. Other peers can only switch 70% of the load instantaneously without load, while SHANGYU POWER CHINA can switch full load instantaneously without load, and has a strong load carrying capacity for non-linear loads

2. Other peers are single DSP control mode, while SHANGYU POWER CHINA is dual DSP control mode

3. The floating charging of other peers cannot be automatically converted, but the SHANGYU POWER CHINA is automatically switching to floating charging, and the battery is regularly self-tested

4. Other peers can parallel 2-4 units, while SHANGYU POWER CHINA can parallel 6-8 units

5. Other counterparts have a single auxiliary power supply system, while SHANGYU POWER CHINA is a redundant dual auxiliary power supply system with auxiliary power fault protection

6. SHANGYU POWER CHINA supports double busbar system, busbar overvoltage protection, other peers do not support it

7. Regarding the nonlinear load waveform distortion, the SHANGYU POWER CHINA parameter and the actual value are both THDV≤4%-5%, while other peers show THDV≤5% on the parameter, but the actual THDV≤6%-8%

8. Other peers use static switches of relays, while SHANGYU POWER CHINA uses static switches of SCR thyristors, which have stronger impact resistance

9. Quality is our culture. 90% of the components of SHANGYU POWER CHINA UPS use Fairchild, Infineon, Onsemi, TI, NXP and other well-known brand A grade materials to ensure their good performance. More importantly, the fault detection rate of SHANGYU POWER CHINA UPS is ≦0.2% -0.5%, while the fault detection rate of other peers is ≦0.5%-1%.

10. SHANGYU POWER CHINA low frequency industrial UPS can be used for 25 years above, and it will fault after 5-7 years usually; while the low frequency industrial UPS of the peers can be used for 15 years above, usually after 2-3 years, it will fault. The operating cost of SHANGYU POWER CHINA ups is far lower than the peers everyday.

Item

SHANGYU POWER CHINA®

Other Peers

Without load

switch full load instantaneously

switch 70% load instantaneously

Control mode

dual DSP

single DSP

Static switches

SCR thyristors

relays

Floating charging switch

Automatically,battery self-tested

cannot be automatically converted

Parallel function

6-8 units

2-4 units

THDV

≤4%-5%

THDV≤6%-8%(show THDV≤5%)

Bus-bar system

supports

not support

Fault detection rate

≦0.2% -0.5%

≦0.5%-1%

Machine life

25-30 years

20-25 years

MTBF

>250000hours

>175000hours

Fault happen

after 5-7 years use

after 2-3 years use
