We are proud to introduce our complete range of Low-Cost UPS, which test under EU operating conditions and have passed all quality and reliability tests. SHANGYU POWER CHINA® S Series 24V Home Computer UPS is our economical & reliable solution, for protecting PC & Networks at home, shops and small offices against Power Interruptions. This 2000VA/1200W UPS, uses Line Interactive technology with Simulated Sine wave. It features a large Digital Display, smart design, AVR Boost and Buck, automatic battery test, USB communication interface, cold start function and easy battery replacement.

This SHANGYU POWER CHINA ® has a complete range of Line Interactive UPS from 500VA to 2000VA. UPS is your ideal choice to provide complete protection to your computers. SHANGYU POWER CHINA is the top 10 brand to manufacture these in China, which comply with EU standard and comes with a 2-year warranty on electronic parts, 1-year on batteries.

These Products are manufactured in State-of-the-art automatic Manufacturing Plants equipped with Hi-Tech Machines in China. Some of the important machines are SMT, ICT, Automatic Assembly Lines, etc.

SHANGYU POWER CHINA® 24V Home Computer UPS is a Micro Processor based that gives Optimum Reliability. It has boost and buck AVR for ultimate Voltage Stabilization which ensures protection against overload, discharge and overcharge.

SHANGYU POWER CHINA® 24V Home Computer UPS Parameter (Specification)

Model

S1000

S1200

S1500

S2000

Capacity

1000VA/600W

1200VA/720W

1500VA/900W

2000VA/1200W

INPUT

Norminal Voltage

220/230/240 VAC

Acceptable voltage range

162-290VAC

Frequency Range

50Hz/60Hz (auto sensing)

OUTPUT

AC Voltage (Batt. Mode)

±10%

Frequency (Batt. Mode)

60 Hz or 50 Hz ±1 Hz

Transfer Time

Typical 2-6 ms, 10ms max.

Waveform (Batt. Mode)

Simulated Sine Wave

BATTERY

Power factor

12 V/7 Ah x 2

12 V/9 Ah x 2

Typical Recharge Time

4-6 hours recover to 90% capacity

PROTECTION

Full Protection

Overload, discharge, and overcharge protectio

INDICATORS

LCD Display

AC Mode

Green lighting

The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level

Battery Mode

Yellow flashing

The right green LED flashing & the 2nd to 5th green gradually lighting indicating battery capacity

Fault

Red lighting

ALARM

Sounding every 10 seconds

Low Battery

Sounding every second

Overload

Sounding every 0.5 second

Battery Replacement Alarm

Sounding every 2 seconds

Contentiously Sounding

PHYSICAL

Dimension,D×W×H (mm)

325×146×185

Net Weight(KGS)

9.2

10.9

ENVIRONMENT

Humidity

0~90%RH @ 0~40℃(Non-Condensing)

Noise level

less than 40dB @ 1m

MAINTENANCE

Modbus RS-232/RS485

Support Windows 2000/2003/XP/Vista/2008/7/8,Linux,Unix and MAC

SHANGYU POWER CHINA® 24V Home Computer UPS Feature And Application

SHANGYU POWER CHINA® 24V Home Computer UPS

Model No.:S1000/GS1200/S1500/S2000

UPS power range: 1KVA~2KVA

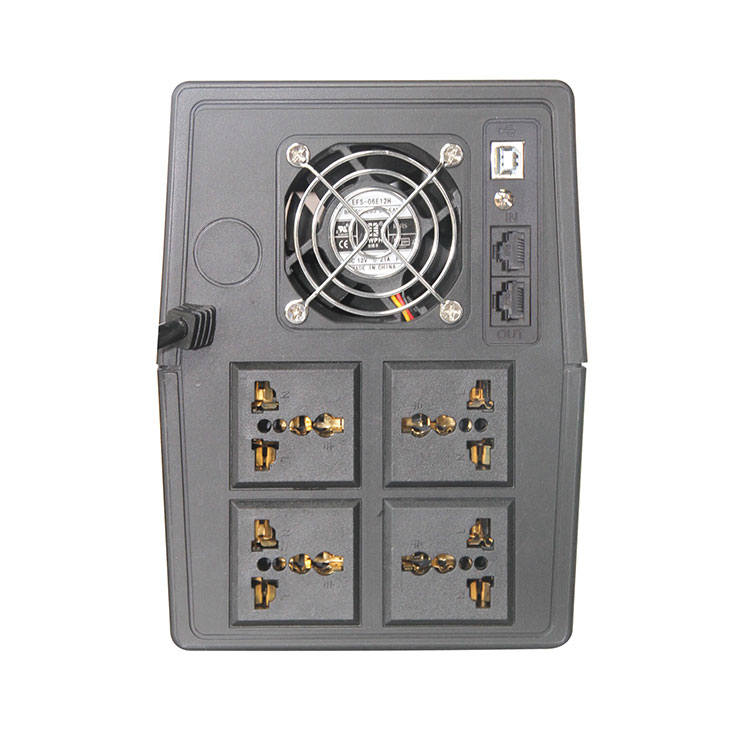

UPS with Schuko/IEC/UK/Universal sockets

The stated backup time in minutes is estimated and may vary according to the load characteristics, operating conditions and environment

Nominal power: : 2000 VA

Active power: : 1200 W

Backup time: : 5 min at full load

No. of sockets IEC: : 4-6

Communication ports: : USB+RJ45 or RS232

Features:

√ Line-Interactive Topology

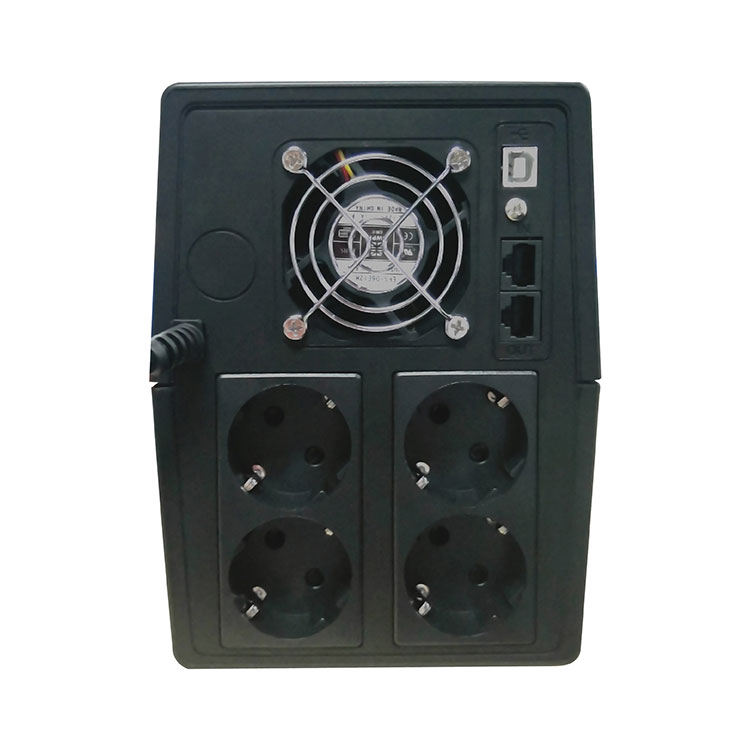

√ 4x Schuko socket 230V, 2x RJ-45 (I/O)

√ Built-in LCD display

√ Simulated sine wave

√ Easy-to-use (no parts to be repaired by the user)

√ Automatic activation when the mains supply is returned

√ Silencing function in the battery mode

√ Charging in the Stand-By mode

√ Protection from overload, short circuit and discharge

√ RJ-45 surge protection

√ Built-in automatic voltage regulation module (AVR)

√ SMD mounting technology

√ Microchip control to provide high operational efficiency

√ Automatic test with every activation of the device

√ Wide range of input voltage

√ Fuse

√ USB communication port*

√ Elegant, office design

√ Maximum surge protection design with over 860 joule capacity - more than double competitors

√ LCD display provides battery capacity, load level, operating mode, voltage in/out, and alarm conditions in one easy to read screen

Application

SHANGYU POWER CHINA® Line Interactive UPS Details

SUPER FAST CHARGING

Battery can be recharged to 90% of its capacity within 2-4 hours.

SURGE PROTECTION – PROVIDES SURGE PROTECTION FOR YOUR EQUIPMENT

Provides protection for the connected equipment from incoming spikes, surges, etc.

Extra assurance while keeping your network safe from disruptive power surges.

ADVANCE EARLY WARNING OF UPS SHUTDOWN – AMPLE TIME TO BACKUP YOUR FILES

Immediately alerts you to an output overload, high temperature or low battery condition.

Ample time to either correct the condition or shutdown your system before battery time runs out.

OVERLOAD PROTECTION

Initiate the alarm to inform the user in an event of an overload.

Automatic shutdown, thus prolonging the lifespan of the UPS.

OVER TEMPERATURE PROTECTION

Shuts the power supply down in the event of unacceptably high internal temperatures.

INTELLIGENT BATTERY MANAGEMENT – BETTER RELIABILITY AND PROTECTION

Additional protection for battery overcharging and deep discharging.

Maximizes battery performance, life and reliability through intelligent precision charging.

When compare with peers, SHANGYU POWER CHINA® 24V Home Computer UPS advantages as below:

Output Power: 2000VA/1200W, capable of powering several PCs and peripherals or a small Network.

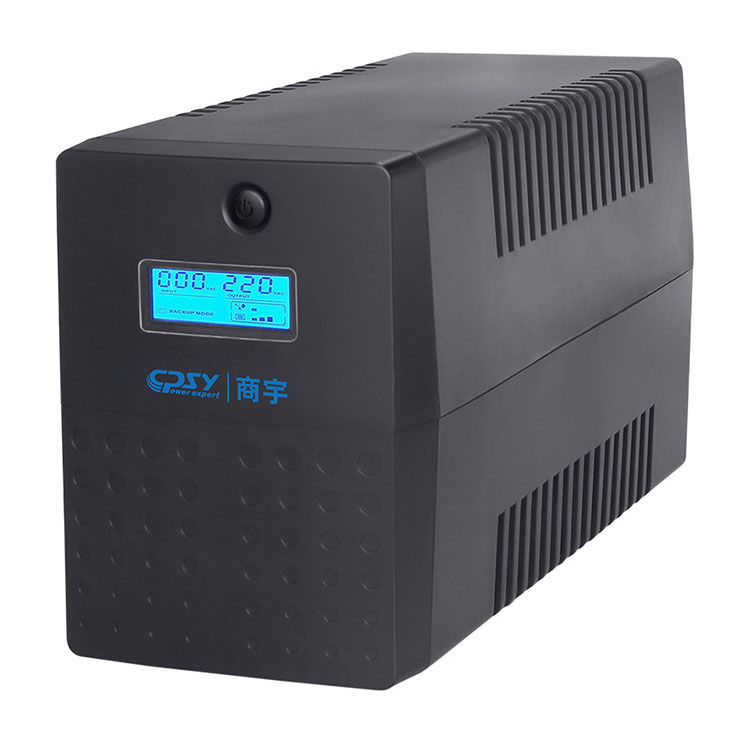

A large, bright Digital Display provides all required user information for a trouble free operation.

Boost and Buck AVR (Automatic Voltage Regulation) corrects either under-voltage or

over-voltage conditions, to minimize the usage of battery energy, extending the life of the battery, increasing the time between replacements and saving you money.

Autonomy: 39/50 minutes for 1 PC with 19 inch monitor depending on your PSU. Enough time to shut down properly or for power to be restored.

A Plug & Play fan cooled UPS to avoid overheating & extend battery life.

Cold Start Function allows users to turn on the UPS without connecting the Utility.

USB connection port for UPS monitoring. Automatic shutdown, scheduling and many other functions.

Plug-in charging - UPS charging battery even when turned off.

Supported by our technical team of Certified "Critical Power Experts" for your peace of mind.

Two Years Warranty on Electronic Parts, One Year Batteries
