SHANGYU POWER CHINA® Home Offline UPS is the latest invention of high-quality ups products, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty. As a professional manufacturer of UPS and precision air conditioner, Our aim is continuously to offer our customer stable and reliable, clean and high-efficiency power.welcome to inquiry.

The SHANGYU POWER CHINA® Home Offline UPS is made of metal+ PCBA, which has been designed to meet most demanding power requirements, being easy to install and maintain. It combines latest high energy efficiency technology and high power density technology, achieving small size, stable performance and price competitive for UPS products.

SHANGYU POWER CHINA® S series Home Offline UPS Parameter (Specification)

Model

S500/S1550

S600/S650

S800/S850

S1000/S1050

S1200/S1250

S1500/S1550

S2000/S2050

Capacity

500VA/300W

600VA/360W

800VA/480W

1000VA/600W

1200VA/720W

1500VA/900W

2000VA/1200W

Input

Voltage

110/120VAC

Voltage Range

80-145VAC

Frequency Range

60/50Hz

Output

AC Voltage Regulation (Batt.Mode)

100-120AC

Frequency Range (Batt.Mode)

50H or 60Hz ±1Hz

Transfer time

Typical: 2-8ms,10ms max.

Waveform (Batt.Mode)

Simulated Sine wave

Battery

Battery Type & Number

12V7Ahx1pc

12V7Ah x 1pc

12V9Ah x 1pc

12V7Ah x 2pc

12V9Ah x 2pc

Typical Recharge Time

4-6 hours up to 90% capacity

Protection

Full Protection

Overload,Discharge,and overcharge protection

Indicators

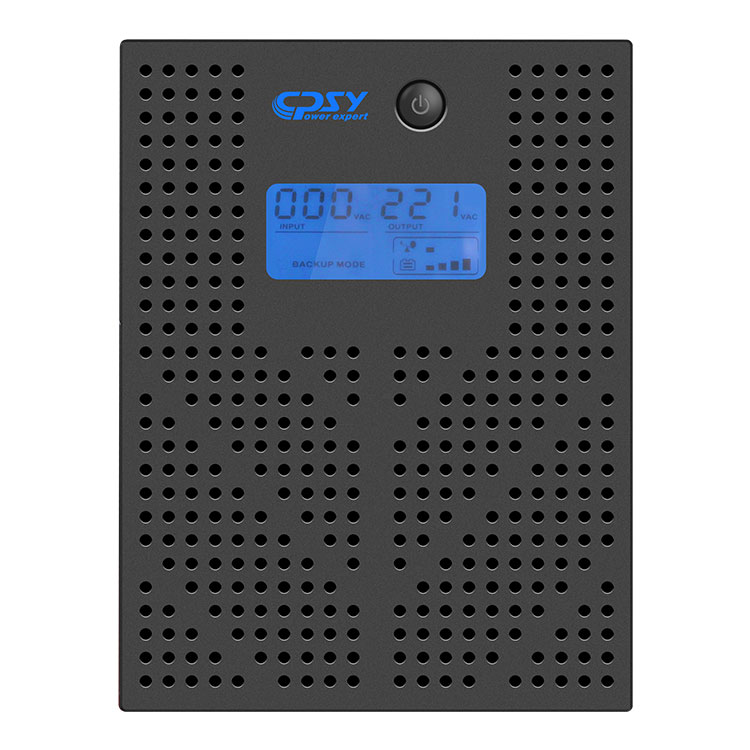

LCD display

AC mode,battery mode,load level,input voltage,output voltage,overload,fault,and low battery

LED display

AC Mode

Green light

Battery Mode

Alarm

Sounding every 10 seconds

Low Battery

Sounding every seconds

Overload

Sounding every 0.5 seconds

Fault

Continuously sounding

Physical

Dimensions, D*W*H (mm)

185*100*140

325*146*185

Net Weight (KG)

4.5

5.1

9.2

10.9

Environment

Operation Humidity

0-90%RH@0-40℃(non-condensing)

Noise Level

Less than 40dB

Management

Communication port

Optional USB,RS232 communication port and RJ-11/RJ-45 Protection

Remark: S500/S600/S800/S1000/S1200/S1500/S2000 with LED display S550/S650/S850/S1050/S1250/S1550/S2050with LCD display

SHANGYU POWER CHINA® Home Offline UPS 500-3000VA Feature And Application

KEY FEATURES

* Line-interactive UPS with super-long backup time

* wide input range with AVR function

* Protection for short circuits, overloads, and battery low voltage

* LED indication and audible alarm function

* Intelligent battery management

* with cold start function

* with AUTO restart function

* Automatic battery charging while UPS is off(Optional)

* USB+RJ11/RJ45 or RS232 port(optional)

Application : PC, Work station, Small communication equipment.

SHANGYU POWER CHINA® Home Offline UPS 500-3000VA Details

When compare with peers, SHANGYU POWER CHINA® Home Offline UPS 500-3000VA advantages as below:

●AVR function, high reliable

●Auto self-testing function when ups start

●UPS restart when AC power coming

●Smart charging, shorten 50% charging time when charge the battery.

●Super overload capacity, 120% load work for long time

●Battery auto charging function when UPS off

●Customized service, accept ODM & OEM order.

●Approve European CE and ROHS certification system

●Optional Plastic trype/Metal type/long-run type/charger type computer ups

●Optional anti-lighting function,More Safety.

Model No.

1Pallet

20GP

40GP

40HQ

Remark

S500/S550

160

1600

3360

3780

180pcs max.

S1000/S1050(500w)

S1000/S1050(600w)

105

1050

2205

2520

120pcs max.

Why choose SHANGYU POWER CHINA?

12+ years rich experience manufacturer, 2,5000 square meters, 300+ workers,more than 120 +patents

30+R & D Engineer keep to improve design and supply new products .

7 QC to controller the Full process,100% inspection before shipment .

TOP 5 manufacturer,Large batch production to guarantee competitive price.

We are the only manufacturer who can sign "Quality Warranty"&"On Time Delivery Warranty" with client.

One of the few supplier whom have factory to make the Key Products and also supply complete set system design and installation supporting

Support OEM/ODM service with LOW MOQ!

10 years experience in international bidding together with dealer.

Annually train to dealer office or in factory about design/installation and maintenance.

Important Safety Warning for Computer UPS (SAVE THESE INSTRUCTIONS)

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.)

CAUTION! To reduce the risk of overheating the UPS, do not cover the Ups' cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.

CAUTION! Do not attach non-computer-related items, such as medical equipment,life-support equipment, microwave ovens, or vacuum cleaners to UPS.

CAUTION! Do not plug the Ups input into its own output.

CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or near the unit.

CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.

CAUTION! Do not attach a power strip or surge suppressor to the UPS.

CAUTION! If the UPS is with metal chassis, for safety purpose, grounding is a must during UPS installation in order to reduce leakage current below 3.5mA.

Attention! hazardous through electric shock. Also with disconnection of this unit from the mains, hazardous voltage still may be accessible through supply from battery. The battery supply should be therefore disconnected in the plus and minus pole at the quick connectors of the battery when maintenance or service work inside the UPS is necessary.

CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions.Keep unauthorized personnel away from batteries.

CAUTION! When replacing the batteries, use the same number and type of batteries.

CAUTION! Internal battery voltage is 12VDC, Sealed, lead-acid, 6-cell battery.

CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.

CAUTION! Unplug the Ups prior to cleaning and do not use liquid or spray detergent.

CAUTION! A battery can present a risk of electric shock and high short circuit current. The following precaution should be observed before replacing batteries:

1) Remove watches, rings, or other metal objects.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminal.
