As the professional manufacturer, we would like to provide you Single Phase Low Frequency UPS. SHANGYU POWER CHINA® 3/1 Phase Low frequency ups, top 10 brands in China with 65.24millions RMB registered capital, and famous with its innovation,low fault rate and good services.As a professional manufacturer of uninterruptible power supplies, SHANGYU POWER CHINA® 3/1 Phase Low frequency ups has been designed to meet most demanding power requirements, being easy to install and maintain. SHANGYU POWER CHINA® 3/1 Phase Low frequency ups provide the 500va-600kva ups, which comply with CE, ROHS, IEC, BS,UL,TUV, SAA standard and comes with a 2-year warranty.

SHANGYU POWER CHINA® Single Phase Low frequency ups

As the professional manufacturer, we would like to provide you Single Phase Low Frequency UPS. SHANGYU POWER CHINA® 3/1 Phase Low frequency ups,With more than 40+R&D engineers team, more than 120 patents, and put increase 5% every year investment to R&D research.SHANGYU POWER CHINA® 3/1 Phase Low frequency ups, with strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates.Our aim is continuously to offer our customer stable and reliable, clean and high-efficiency power.It combines latest high energy efficiency technology and high power density technology, achieving small size, stable performance and price competitive for UPS products.

SHANGYU POWER CHINA® GP31 series 3/1 Phase Low frequency ups Parameter (Specification)

Model

GP3110K

GP3115K

GP3120K

GP3130K

GP3140K

Capacity

10KVA/8KW

15KVA/12KW

20KVA/16KW

30KVA/24KW

40KVA/32KW

I/O mode

3/1 phase

Work mode

True double conversion online ups

Installation type

Tower

INPUT

Voltage

380VAC

Voltage Range

323~456VAC

Frequency Range

47～53Hz/57～63Hz

50/60Hz ±10%

Power Factor

≥0.906

Breaker

Standard (In-built)

Breaker capacity

40A/3P

63A/3P

80A/3P

OUTPUT

220VAC：≤±1%

50Hz ：≤±0.5%

0.8

Transfer Time

0ms

Overload

100%-105% long-term ; 105%-110% 60 mins; 110%-125% 10 mins; 125%-150% 60s

63A/1P

125A/1P

100A/2P

Output method

Terminal block

BATTERY

Battery Type

VALR battery

Battery Voltage

Standard 384VDC（32pcs）

Charging Current

Standard 3A （adjustable：max 8A）

15A(max20A)

Battery breaker

100A（battery fuse）

200A（battery fuse）

Cold start

Support

No battery power-on function

STANDARDS

Efficiency

91%

92%

Safety

EN 62040-1

EMC

EN 62040-2

Certificate

TLC/CECP/CE/EMC/LVD/ROHS

IP

IP20

Function

EPO

No Support

ECO

Bypass

Bypass breaker

Parallel

Parallel shared battery pack

Communication

Control Panel

LCD+LED dispaly

LCD（7寸）+LED dispaly

Communication port

Standard RS232（Optional SNMP card）

SNMP Serial NO.

SMP-00013-00（external）(Optional snmp card)

PHYSICAL

W*D*H

280*580*795

330*600*900

414*704*1016

560*740*1200

Net Weight（KG）

88

101

103

157

340

Noise Level(Less 1m)

＜65dB (less)

ENVIRONMENT

Operation temperature

0-40℃

Operation Humidity

10-95%RH，No condensation

Storage temperature

-25-55℃

Storage relative humidity

0-95%RH，No condensation

SHANGYU POWER CHINA® GP11 series 6KVA Single Phase Low frequency ups Feature And Application

GP31series low-frequency online UPS has been designed as a combined advanced IGBT technology with hi-frequency wider-modulated technology (PWM), which allows customers could obtain high-quality power output and optimized efficiency under each operation load.

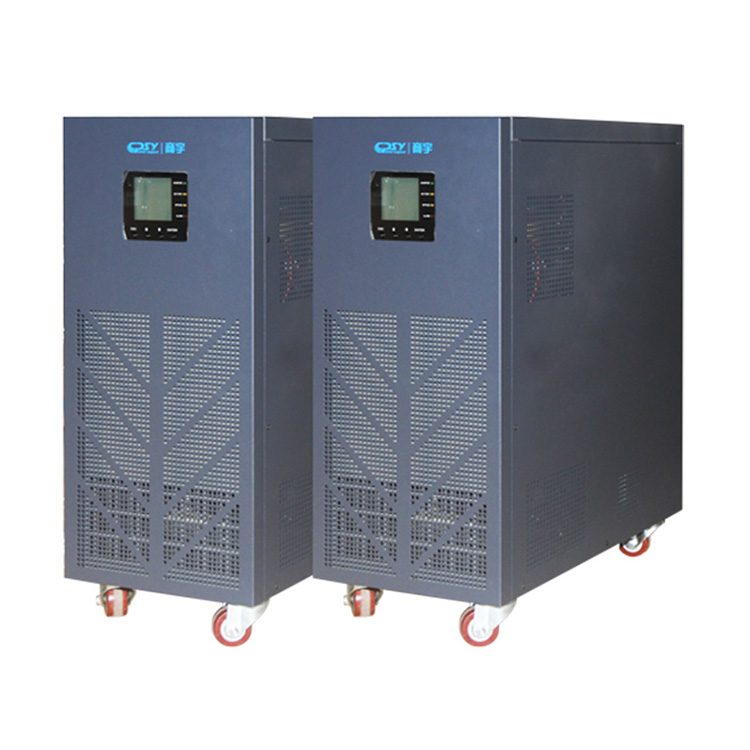

SHANGYU POWER CHINA® 3/1 Phase Low frequency ups 10-40KVA ups

Model No.: GP3110K/GP3115K/GP3120K/GP3130K/GP3140K

UPS power range: 10KVA~40KVA

Features:

1.The advanced modular design: To reduce the average time to repair (MTTR), and the best maintenance

2.Intelligent control of multiple CPU: Groups of new microprocessor (CPU) coordination, which can precisely control the parameters of UPS and its full control, providing sufficient computing power, to ensure UPS always in top working condition.

3.Intelligent battery management.

4.Humanized display interface: LCD dot matrix display, which visually indicated the UPS's operating parameters, LED displays the working status of UPS, and the LCD + LED combinations could make you get the UPS running status clearly and quickly.

5.Double conversion, pure sine wave output line design: could supply the low-distortion pure sine wave power, so it can provide the best power protection to the user's equipment.

6.High-intelligence network control: through the communication interface, with the monitoring software, which can directly monitor UPS on the computer, simplified power management, optional adapter remote monitor (SNMP card), with a variety of operating system and application software, as well as TCP/ IP, SNMP, HTTP and other protocol support, which meets the user's requirements to monitor UPS via network, this is more suitable for decentralized users to centralized manage, thereby achieving the real global management.

7.Not principal and subordinate type, but adaptive parallel technology.

It has strong ability in parallel and does not need to set the quantity of parallel, parallel expansion or N + 1 redundancy in parallel UPS will share the same group batteries.

8.With the isolated output transformer, which ensure that the entire the isolation of the load and public electric.

9.It also with the most advanced phase-balanced technology, and it features best stability, even if loss-phase, it could still operate at normal condition, so it's suitable for any worse power supply.

Application:

√ Industrial Automatic Control

√ Medical Equipment

√ Office Automation

√ Production Equipment

√ Electronic & Telecom

√ Aeronautics & Astronautics

√ Army Technology

√ Securities System

SHANGYU POWER CHINA® 3/1 Phase Low frequency ups Details

When compare with peers, SHANGYU POWER CHINA® 3/1 Phase Low frequency ups advantages as below:

1. DSP Digital Control Technology

2. Advanced IGBT Inverter Technology

3. Pure-online Double Conversion Technology

4. Perfect Protection

5. Powerful Redundant Parallel

6. Powerful Communication System

7. Low-power Dissipation But High-efficiency

8. Prediction Warning System

9. Humanized Panel Display

10. Super-strong Environment Adaptability
